Product Introduction

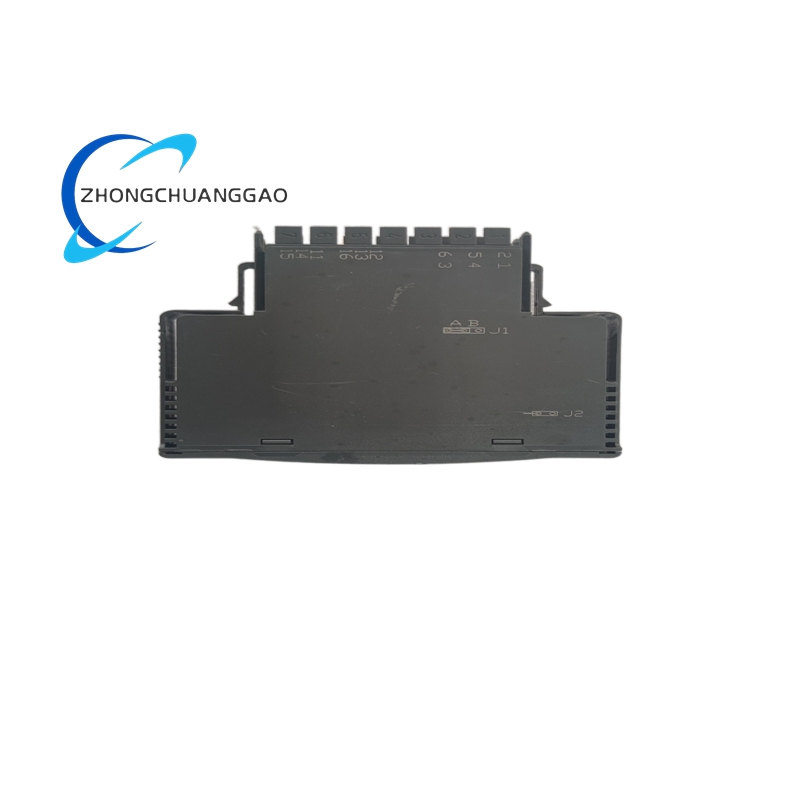

The ABB V17152-310 is a high‑precision, single‑channel intelligent transmitter module belonging to the Contrans I interface family, designed for industrial process automation and distributed control systems (DCS). It functions as a critical signal conversion and isolation interface, converting field‑side analog current signals into standardized, isolated signals for reliable monitoring and control. Built with a modular, plug‑and‑save design, it enables easy installation, hot‑swap maintenance, and seamless integration with ABB Bailey INFI 90 DCS and other industrial control platforms. This module delivers accurate signal processing, robust electrical isolation, and stable performance in harsh industrial environments, supporting system safety, data integrity, and operational reliability.
Description
Technical Specifications
- Product Type: Intelligent Transmitter Module / Analog Signal Isolation & Conversion Module
- Series: Contrans I (Hartmann & Braun)
- Number of Channels: 1 single‑channel analog signal processing
- Input Signal: 0/4–20 mA (0/3.8–20.5 mA) current signals
- Output Signal: Isolated, standardized analog current signals for DCS integration
- Load Capacity: 0–600 Ω (compatible with standard control system inputs)
- Isolation Voltage: High galvanic isolation between field and control circuits
- Supply Voltage: 19.2–30 V DC (nominal 24 V DC)
- Power Consumption: Approx. 1 W (typical)
- Measurement Accuracy: High linearity with minimal signal distortion
- Response Time: Fast signal processing for real‑time control
- Dimensions: Compact industrial form factor (77 mm × 30 mm × 22 mm)
- Weight: Approx. 100 g (net)
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% RH (non‑condensing)
- Vibration Resistance: Industrial‑grade compliance (IEC 60068‑2‑6)
- Protection: Overcurrent, short‑circuit, and surge protection for signal channels
- Communication Compatibility: HART protocol and FSK bus capable
- Certifications: CE, IEC, and industrial EMC standards
- Mounting: DIN‑rail mountable via standard Contrans I base sockets
Key Features
- Single‑Channel Precision: Delivers high‑accuracy conversion for 4–20 mA current signals with excellent linearity and low noise.
- Robust Galvanic Isolation: Provides complete electrical isolation between field‑side and control‑side circuits to eliminate ground loops and electrical interference.
- Modular Plug‑and‑Save Design: Separates functional module and wiring base for hot‑swap replacement, reducing maintenance downtime and wiring errors.
- HART & FSK Compatibility: Supports HART protocol and FSK bus communication for advanced diagnostics and parameter configuration.
- Wide Load Compatibility: Operates reliably with load resistances from 0 to 600 Ω, ensuring compatibility with diverse control system inputs.
- Industrial‑Grade Durability: Rugged construction with conformal coating for stable performance in harsh industrial environments.
- Seamless DCS Integration: Directly compatible with ABB Bailey INFI 90 DCS via standardized backplanes and system cables.
- Easy Configuration: Supports parameter setup and calibration via system software for adaptability to different process requirements.
- Low Power Consumption: Energy‑efficient design optimized for continuous operation in industrial control cabinets.
- Long‑Term Reliability: Engineered for extended service life with minimal maintenance requirements in continuous industrial operation.
Application Scenarios
- Distributed Control Systems (DCS): Core signal interface module for ABB Bailey INFI 90 and other DCS platforms in process industries.
- Process Automation: Signal conversion for flow, pressure, level, and analytical transmitters in chemical, pharmaceutical, and food processing plants.
- Power Generation & Distribution: Analog signal monitoring and isolation for generator control, substation automation, and power grid systems.
- Oil & Gas Industry: Isolated signal interface for instrumentation in refineries, offshore platforms, and pipeline control systems.
- Metallurgy & Mining: Reliable signal processing for heavy‑duty process control in steel mills, smelters, and mining operations.
- Water & Wastewater Treatment: Signal conversion for pump, valve, and sensor monitoring in water treatment and distribution networks.
- Cement & Minerals Processing: Analog signal interface for kiln, mill, and conveyor control systems in cement production facilities.
- Marine & Offshore: Isolated signal processing for shipboard automation and offshore drilling control systems.
- General Industrial Automation: Universal transmitter module for factory automation, SCADA systems, and machine control applications.
- Hazardous Area Applications: Suitable for use in industrial zones with explosive gas and dust environments (certified for safe operation).
