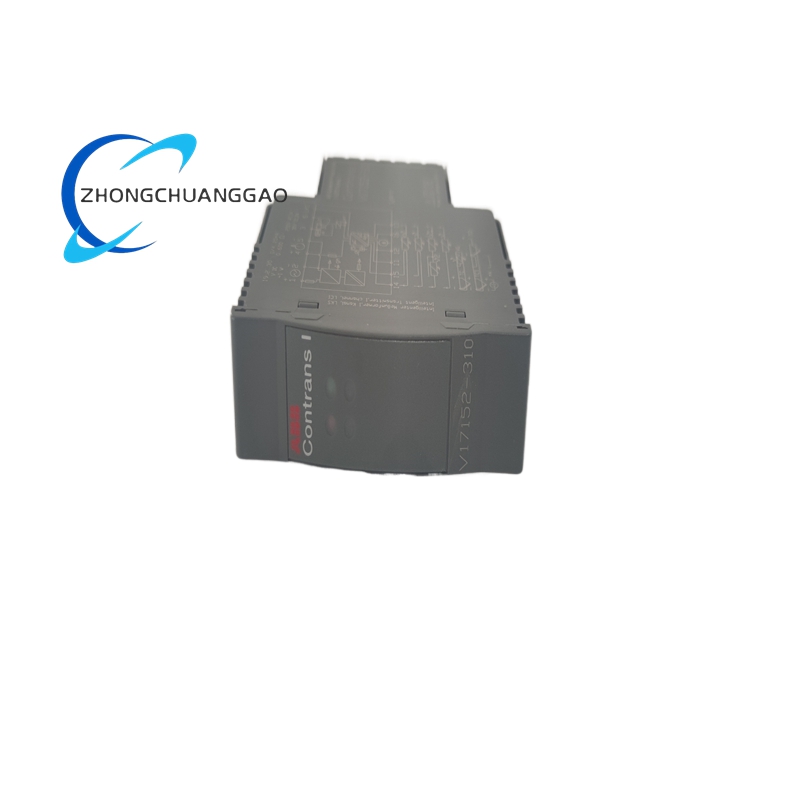

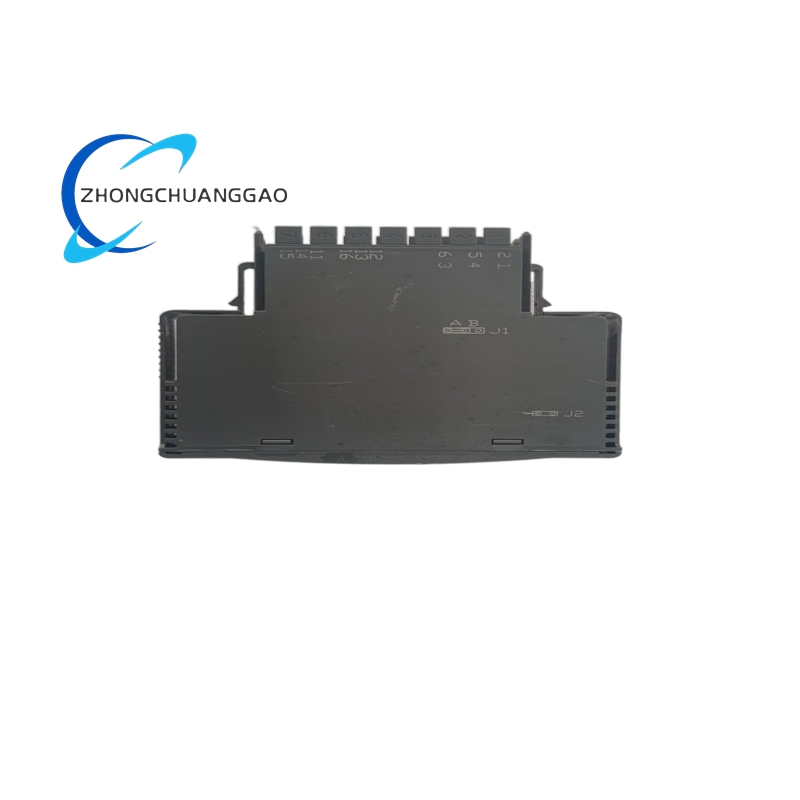

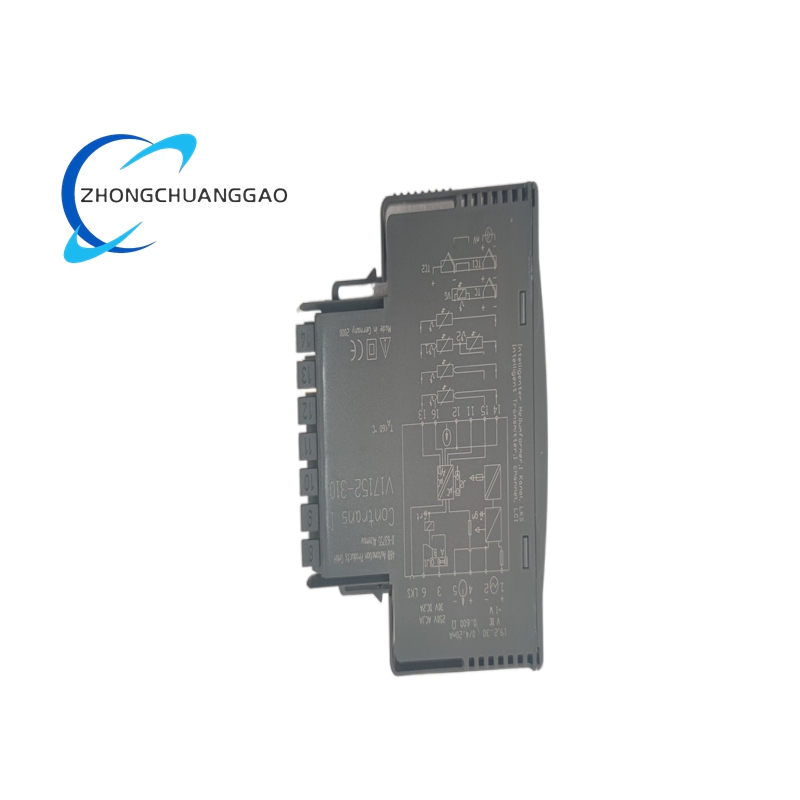

The ABB V17152-310 is a high-performance, intelligent analog input module designed for industrial process control systems. It belongs to the Contrans I (Hartmann & Braun) product family and is engineered for seamless integration with ABB’s AC 800M and System 800xA distributed control systems. This module converts 4–20 mA analog field signals into digital data for processing, with native support for HART communication protocol. It features 16 single-ended input channels, galvanic isolation, and high-precision data acquisition, making it ideal for connecting a wide range of process transmitters and sensors in demanding industrial environments.
Description
Technical Specifications
- Product Type: Intelligent Analog Input (AI) Module
- Series: Contrans I (V17152 Series)
- Input Channels: 16 single-ended channels
- Input Signal: 4–20 mA DC (primary); supports HART 5/7 FSK communication overlay
- Accuracy: ±0.1% of full scale (typical at 25°C)
- Repeatability: ≤ ±0.05% of full scale
- Resolution: 16-bit analog-to-digital converter (ADC)
- Sampling Period: ≤ 10 ms per channel (configurable)
- Isolation: 500 V AC RMS (1 minute) reinforced isolation between channels and ground
- Input Impedance: ≤ 250 Ω (for 4–20 mA signals)
- Power Supply: Backplane bus-powered (compatible with PM800 series racks)
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% RH (non-condensing)
- Vibration Resistance: 10g (10–150 Hz)
- Shock Resistance: 100g (11 ms duration)
- Dimensions: 127 mm × 127 mm × 32 mm
- Weight: Approx. 1.05 kg
- Mounting: DIN rail mounting (standard industrial)
- Certifications: CE, IEC 61131-2 compliance
- Protection: Short-circuit and open-circuit detection for each channel
Key Features
- 16-Channel High-Density Design: Maximizes I/O capacity per module, reducing cabinet space and wiring complexity.
- Native HART Communication: Supports HART 5/7 protocol for simultaneous analog signal transmission and digital device communication, enabling remote configuration, diagnostics, and secondary variable reading.
- Galvanic Isolation: Reinforced 500 V isolation protects against ground loops and electrical interference, ensuring signal integrity in harsh industrial environments.
- High-Precision Acquisition: Delivers ±0.1% full-scale accuracy and 16-bit resolution for reliable process measurement.
- Fast Sampling: Configurable sampling rates down to 10 ms per channel for responsive process monitoring.
- Modular Construction: Plug-in module design simplifies installation, maintenance, and system expansion.
- Comprehensive Diagnostics: Built-in self-diagnostics detect open circuits, short circuits, and signal anomalies, enabling proactive maintenance.
- Wide Compatibility: Seamlessly integrates with ABB AC 800M, System 800xA, and other major DCS platforms via standardized backplane connections.
- Robust Environmental Performance: Operates reliably across a wide temperature range and withstands high levels of vibration and shock.
- Easy Configuration: Channel-specific parameter setup via system software for flexible signal scaling, filtering, and alarm configuration.
- Low Power Consumption: Efficient design minimizes energy usage and heat generation within control cabinets.
Application Scenarios
- Oil & Gas Industry: Monitoring pressure, temperature, flow, and level in refineries, offshore platforms, pipelines, and LNG terminals.
- Chemical & Petrochemical: Precise measurement of process variables in reactors, distillation columns, and storage facilities.
- Power Generation: Monitoring steam, water, fuel, and emissions in thermal power plants, combined cycle plants, and boiler systems.
- Pharmaceutical & Biotechnology: Accurate process monitoring in sterile production, cleanrooms, and bioreactor control.
- Metallurgy & Mining: Measurement of temperature, pressure, and flow in smelters, rolling mills, and mineral processing plants.
- Water & Wastewater Treatment: Monitoring flow, level, and water quality in treatment plants, distribution networks, and desalination facilities.
- Pulp & Paper: Process variable measurement in pulp cooking, bleaching, and paper machine operations.
- Food & Beverage: Hygienic monitoring of temperature, pressure, and flow in food processing and beverage production lines.
- Marine & Offshore: Vessel and offshore platform process monitoring for fluid handling and utility systems.
- General Manufacturing: Industrial process control in cement, glass, and other heavy manufacturing industries.
- Hazardous Area Monitoring: Integration with HART-enabled field devices in Zone 1/2 hazardous locations (with appropriate system certifications).
