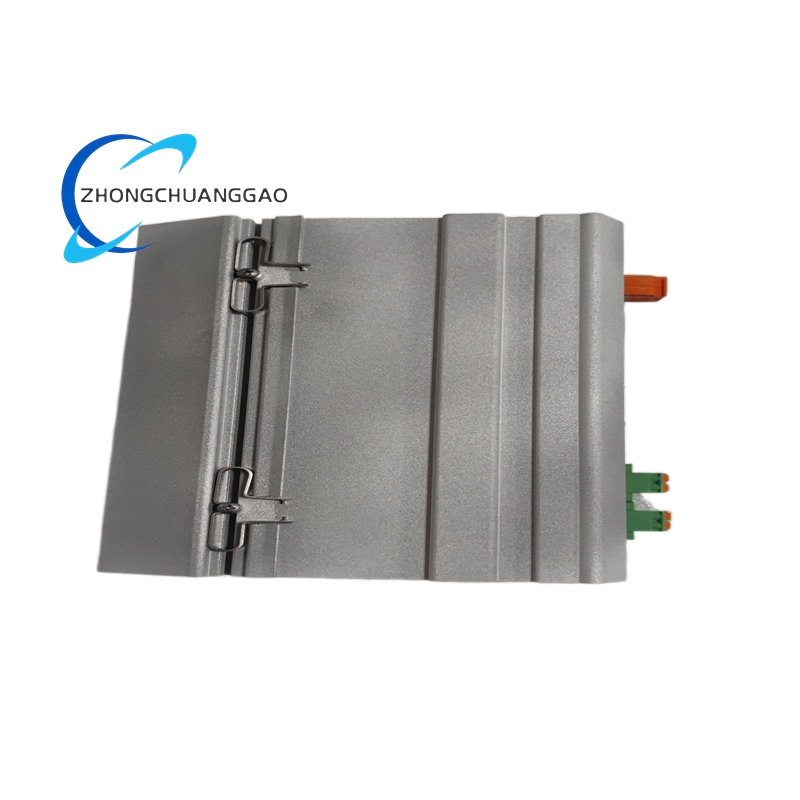

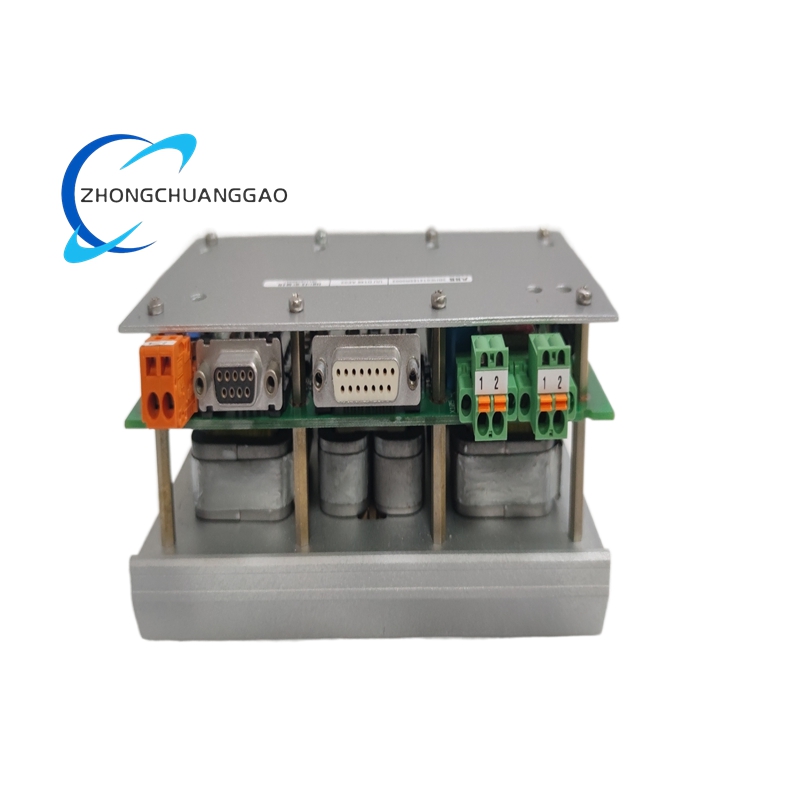

ABB UUD148AE02 3BHE014185R0002 Current Transducer Control Board

Description

Technical Specifications

• Product Type: Current Transducer Control Board / Signal Conversion Module
• Supply Voltage: 24 V DC (18–36 V DC wide‑range compatibility)
• Input Signal: High‑current analog signals (compatible with medium‑voltage drive current loops)
• Output Signal: Processed low‑voltage digital/analog signals for control systems
• Processor: 32‑bit high‑performance embedded processor for real‑time signal processing
• Isolation: High galvanic isolation between high‑current input and low‑voltage control circuits
• Response Time: < 1 ms (from sensor signal input to control signal output)
• Measurement Accuracy: High linearity with low noise for precise current monitoring
• Dimensions: 120 mm × 100 mm × 20 mm
• Weight: Approx. 0.3 kg (net)
• Operating Temperature: -10°C to +60°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5% – 95% RH (non‑condensing)
• Vibration Resistance: 5 g (10 Hz – 2000 Hz, IEC 60068‑2‑6)
• Protection Rating: IP20 (standard)
• Protection Features: Overcurrent, short‑circuit, and thermal protection for signal channels
• Communication Interfaces: Modbus RTU, RS‑485, and high‑speed backplane bus for system integration
• Certifications: Compliant with CE, IEC, and industrial EMC standards

Key Features

• High‑Precision Current Measurement: Delivers accurate analog‑to‑digital conversion with high linearity and low noise, ensuring reliable current monitoring and control.
• Ultra‑Fast Signal Processing: Equipped with a 32‑bit embedded processor for real‑time data processing and < 1 ms response to current fluctuations.
• Robust Isolation Design: Provides high galvanic isolation to protect control circuits from high‑current transients and electrical interference.
• Comprehensive Fault Detection: Monitors input/output signals and system status, enabling rapid detection of overcurrent, short‑circuit, and signal abnormalities.
• Seamless System Integration: Designed for direct integration with ABB PCS6000, ACS6000, and ACS8000 medium‑voltage drive platforms.
• Industrial‑Grade Durability: Rugged PCB construction with conformal coating, wide temperature tolerance, and high vibration resistance for harsh industrial environments.
• Flexible Configuration: Supports parameter calibration and setup via system software for adaptability to different drive setups.
• Low Power Consumption: Energy‑efficient design optimized for continuous operation in industrial control cabinets.
• Easy Installation: Compact form factor with standard mounting options for straightforward integration into drive systems.
• Long‑Term Reliability: Engineered for extended service life with minimal maintenance requirements in continuous industrial operation.

Application Scenarios

• Medium‑Voltage Drive Systems: Core current monitoring and control component for ABB PCS6000, ACS6000, and ACS8000 series medium‑voltage variable frequency drives.
• Industrial Motor Control: Current signal processing in high‑power industrial motor control systems, including pumps, fans, compressors, and conveyors.
• Power Generation & Distribution: Current measurement and protection in generator excitation systems, substation control, and power distribution networks.
• Metallurgy & Mining: Current monitoring for heavy‑duty drives in steel mills, mining crushers, and material processing equipment.
• Oil & Gas Industry: Signal conversion for drive systems in offshore platforms, refineries, and pipeline pumping stations.
• Marine & Offshore: Current control for shipboard propulsion systems and auxiliary power drives, meeting marine environmental requirements.
• Water & Wastewater Treatment: Precise current regulation for large‑scale pump and mixer drives in water treatment plants.
• Cement & Minerals Processing: Reliable current monitoring for kiln, mill, and conveyor drives in cement production facilities.
• Paper & Pulp Industry: Signal processing for high‑power drives in paper machines and pulp processing equipment.
• General Industrial Automation: Current transducer and control interface for various high‑current industrial automation and process control applications.
