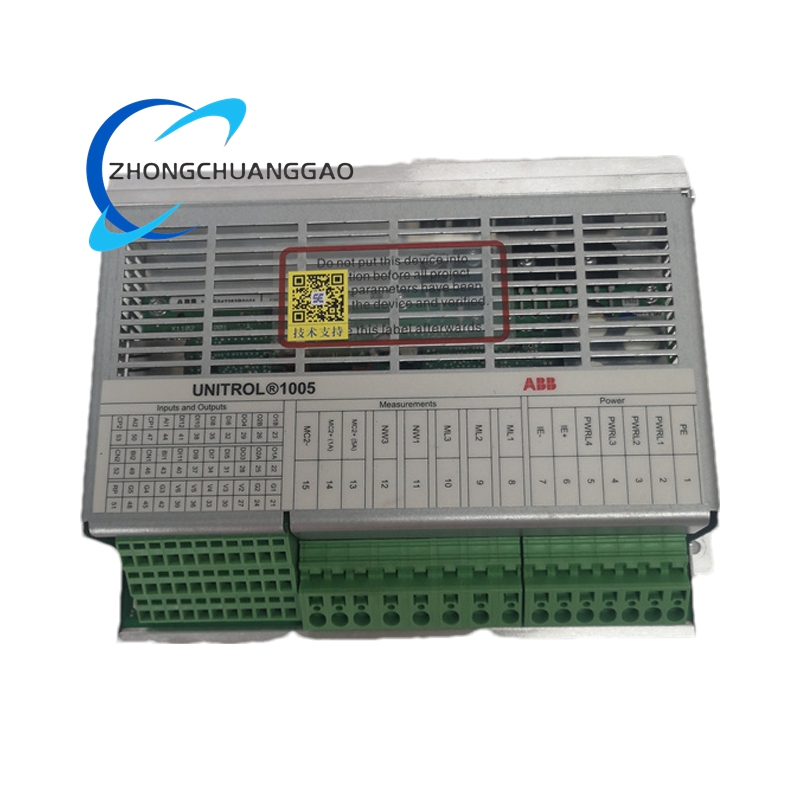

ABB UNITROL 1005-0011ECO 3BHE043576R0011

Product Short Description

Technical Specifications

Communication Interfaces: RS – 232, RS – 485 or RS – 422RJ45 (DB – 9F with attached cable), 10/100 Ethernet port.
Power Supply Voltage: 220V.
Maximum Excitation Current: 5A DC.
Operating Temperature: 0 – 65°C.
Operating Humidity: 0 – 95%.
Product Certification: CE.

Functional Features

Multiple Software Packages: There are two software versions, the ECO software package and the Light software package. The ECO software package includes functions such as AVR/FCR/PF VAR, additional coefficient/risk value regulator, limiter, lifting control/fiberglass detection, soft – start, and voltage matching. The Light software package has a historian that can record two hours of operation.
Accurate Measurement: It can measure single – phase or three – phase machine voltage, single – phase machine current, excitation current, excitation voltage, and corrected input voltage.
Reliable Control: Based on the same target software source code and sharing the same simulation model as other UNITROL 1000 products, it is very suitable for applications with strict grid code requirements.
Optical Isolation: Each input channel of the event sequence timing module is optically isolated and can be individually programmed for 24 VDC, 48 VDC, 125 VDC, and 120 VAC inputs.

Application Scenarios

Power Plants: Used in generator sets to ensure the stable operation of the power generation system and meet grid requirements.
Marine Electric Propulsion and Auxiliary Supply: Provides reliable power support for marine applications.
Diesel Electric Locomotives: Helps in the efficient operation of diesel – electric locomotives.
Port Cranes: Ensures the stable operation of port cranes during loading and unloading operations.
Mining Trucks: Suitable for the power supply and control of mining trucks in harsh environments.
