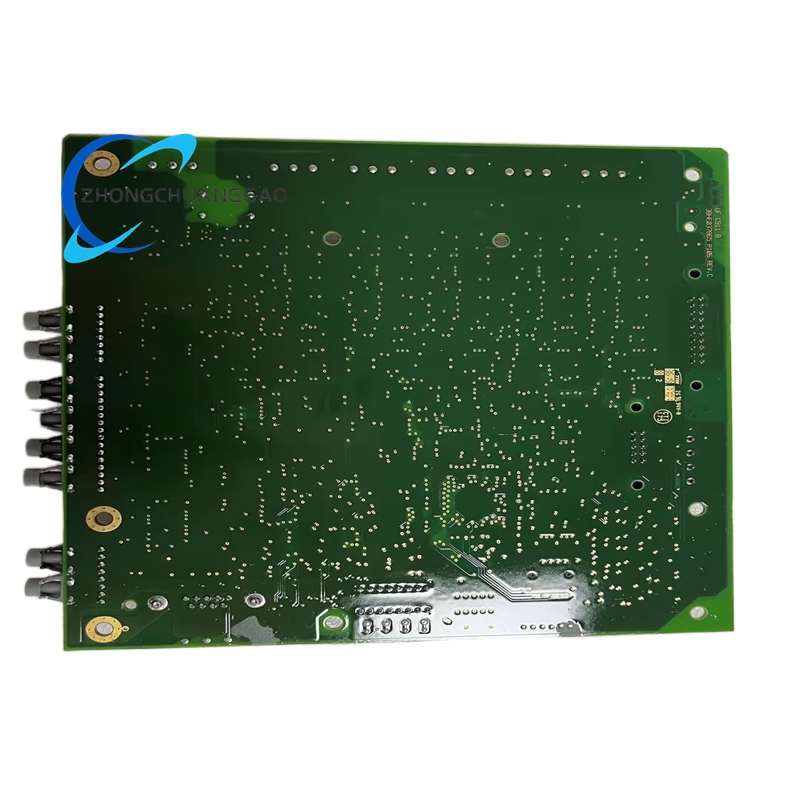

ABB UFC911B110 3BHE037864R0110 Main Control Board

Description

Technical Specifications

• Product Type: Main Control Board for Medium‑Voltage Drives
• Target Drive Series: ABB ACS1000 High‑Voltage Variable Frequency Drives
• Power Supply: 24 V DC (18 V – 32 V DC)
• Power Consumption: < 10 W
• Processing Architecture: High‑performance DSP + FPGA hybrid architecture for real‑time control
• Control Algorithms: Advanced vector control and Direct Torque Control (DTC) for high‑dynamic motor performance
• I/O Configuration:
  • Digital Inputs: 8 isolated channels (24 V DC)
  • Digital Outputs: 4 isolated relay channels (24 V DC)
  • Analog Inputs: 2 high‑precision channels (0–10 V / 4–20 mA)
  • Analog Outputs: 1 channel (0–10 V / 4–20 mA)
  • Encoder Interfaces: Support for HTL, TTL, and EnDat encoders for position feedback
• Communication Interfaces:
  • RS‑232: 1 port for local configuration and diagnostics
  • RS‑485: 1 port (Modbus RTU protocol) for industrial communication
  • Backplane Bus: High‑speed internal bus for communication with drive power modules
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5% – 95% non‑condensing
• Vibration Resistance: 5 g (10 Hz – 2000 Hz)
• Protection Rating: IP20 (panel‑mounted)
• Weight: Approx. 1.0 kg
• Certifications: CE, UL, CSA compliant

Key Features

• Advanced Vector & DTC Control: Implements state‑of‑the‑art vector control and Direct Torque Control algorithms, enabling precise speed and torque regulation with exceptional dynamic response and energy efficiency.
• High‑Speed Real‑Time Processing: Utilizes a powerful DSP‑FPGA architecture to execute control loops with minimal latency, ensuring stable operation even under rapid load changes.
• Comprehensive I/O Suite: Provides a full set of digital, analog, and encoder interfaces to connect with field sensors, actuators, and feedback devices, supporting complete drive system integration.
• Multi‑Protocol Communication: Supports RS‑232, RS‑485 (Modbus RTU), and high‑speed backplane communication, facilitating seamless integration with PLCs, SCADA systems, and other industrial automation equipment.
• Robust Isolation: Features galvanic isolation on all I/O and communication channels, protecting the control logic from electrical noise and high‑voltage transients in industrial environments.
• Built‑In Diagnostics: Performs continuous self‑monitoring and fault detection, with real‑time status indication and detailed fault logging for rapid troubleshooting and system maintenance.
• Parameter Storage: Onboard non‑volatile memory stores all drive configuration parameters, ensuring quick system recovery after power outages or module replacement.
• Hot‑Swappable Design: Allows for module replacement without shutting down the entire drive system, minimizing downtime and maximizing operational availability.
• Industrial‑Grade Durability: Constructed to withstand extreme temperatures, humidity, and vibration, ensuring reliable long‑term operation in harsh industrial settings.
• Seamless ACS1000 Integration: Designed specifically for plug‑and‑play installation into ABB ACS1000 drive chassis, ensuring full compatibility and simplified setup.

Application Scenarios

• Medium‑Voltage Motor Control: Serves as the core control unit for ABB ACS1000 drives, regulating large AC motors in pumps, fans, compressors, and conveyors across various industries.
• Metallurgy Industry: Controls motors in rolling mills, steelmaking furnaces, and continuous casting machines, delivering high torque and precise speed control for heavy industrial processes.
• Chemical & Petrochemical: Manages large pump and compressor motors in refineries, chemical plants, and pipeline systems, ensuring reliable operation in hazardous environments.
• Pulp & Paper: Drives paper machines, coating equipment, and conveyor systems, providing precise speed synchronization and tension control for high‑quality production.
• Mining & Minerals Processing: Controls crushers, mills, and conveyor systems in mining operations, withstanding extreme dust, vibration, and temperature conditions.
• Power Generation: Regulates boiler feed pumps, turbine auxiliaries, and generator excitation systems in power plants, ensuring stable and efficient power production.
• Water & Wastewater: Manages large pump motors and aeration systems in water treatment plants and distribution networks, optimizing energy consumption and operational reliability.
• Cement Production: Controls kilns, raw mills, and material handling equipment in cement factories, delivering high‑performance control for continuous production processes.
• Marine & Offshore: Installed in ship propulsion systems and offshore drilling equipment, providing robust control in marine environments with high vibration and humidity.
