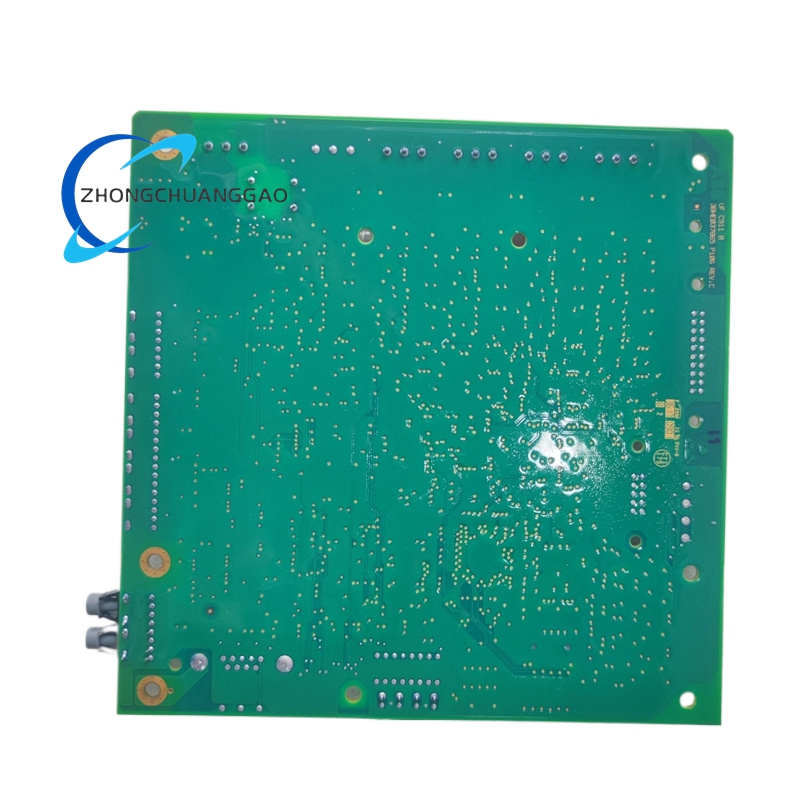

ABB UFC911B107 3BHE037864R0107 Main Control Board

Description

Technical Specifications

Core Processing & Memory

• Processor: High‑speed 32‑bit industrial microcontroller
• Clock Speed: Up to 800 MHz
• RAM: 512 MB DDR3 high‑speed volatile memory
• Flash Memory: 8 GB eMMC non‑volatile storage for firmware and configuration
• Data Buffer: 256 KB dedicated real‑time signal processing buffer
• Real‑Time Operating System (RTOS): Pre‑installed for deterministic control

Signal Acquisition & Processing

• Analog Inputs: 16 differential analog channels (0–10 V, 4–20 mA, 16‑bit resolution)
• Digital Inputs: 32 isolated digital input channels (24 V DC, sinking/sourcing)
• Digital Outputs: 32 isolated digital output channels (24 V DC, 0.5 A per channel)
• Relay Outputs: 8 Form C relay outputs (250 V AC, 5 A) for fault signaling
• Encoder Interfaces: 4 high‑speed encoder ports (RS‑422, 5 V differential)
• Sampling Rate: 500 kHz for high‑speed signal acquisition
• Measurement Accuracy: ±0.05% full‑scale
• Isolation Voltage: 6 kV AC (channel‑to‑channel and channel‑to‑ground)

Communication Interfaces

• Ethernet: 2 × 10/100/1000 Mbps Gigabit Ethernet ports (TCP/IP, Modbus TCP, PROFINET IO)
• Serial Ports: 2 × RS‑232/RS‑485 ports (Modbus RTU, PROFIBUS DP)
• Fieldbus: 1 × CAN 2.0B port (DeviceNet, CANopen)
• Internal Backplane: High‑speed backplane communication for rack integration
• Data Transfer Rate: Up to 10 Mbps for fieldbus communication

Electrical & Power Requirements

• Supply Voltage: 24 V DC (nominal), 18–30 V DC (operating range)
• Power Consumption: 12 W (maximum)
• Overvoltage Protection: Built‑in surge protection (±2 kV)
• Reverse Polarity Protection: Integrated reverse voltage blocking
• EMC Compliance: IEC 61000‑6‑2 (industrial immunity), IEC 61000‑6‑3 (industrial emissions)

Mechanical & Environmental

• Dimensions: 150 mm × 100 mm × 20 mm
• Weight: 0.3 kg (0.66 lbs)
• Mounting: Rack mounting (compatible with ABB drive cabinets)
• Operating Temperature: -20 °C to +60 °C
• Storage Temperature: -40 °C to +85 °C
• Humidity: 5%–95% RH, non‑condensing
• Vibration Resistance: IEC 60068‑2‑6 (5–500 Hz, 10 g rms)
• Shock Resistance: IEC 60068‑2‑27 (50 g, 11 ms)
• Protection Rating: IP20 (enclosed)
• Coating: Conformal coating for harsh industrial environments

Reliability & Compliance

• MTBF: Exceeds 180,000 hours under rated operating conditions
• Lifespan: Designed for 20+ years of continuous industrial operation
• Certifications: CE, UL, CSA, RoHS, IECEx (hazardous area compatible)
• Standards: IEC 61800‑7, IEC 61000‑4‑2/3/4/5/6/11

Key Features

High‑Performance Real‑Time Control

• Deterministic RTOS Operation: Ensures microsecond‑level response for critical control tasks
• Multi‑Axis Motor Control: Supports precise speed, torque, and position control for multiple motors
• Advanced Vector Control: Implements field‑oriented control (FOC) for high‑performance motor drives
• Fast Fault Response: Detects and responds to system faults in < 10 µs to prevent component damage
• Adaptive Control Algorithms: Automatically adjusts control parameters for varying load conditions

Comprehensive Signal & Data Management

• High‑Resolution Acquisition: Captures analog and digital signals with exceptional accuracy
• Multi‑Stage Filtering: Eliminates electrical noise for reliable signal processing
• Real‑Time Data Logging: Records operational data and fault events for diagnostics
• Waveform Capture: Stores pre‑ and post‑fault waveforms for root‑cause analysis
• Data Encryption: Secures configuration and operational data against unauthorized access

Robust Industrial Design

• Galvanic Isolation: 6 kV isolation protects against high‑voltage transients and ground loops
• Wide Temperature Tolerance: Operates reliably in extreme industrial temperature environments
• Superior Noise Immunity: Advanced shielding and filtering for stable operation in electrically noisy areas
• Long‑Term Durability: High‑quality components and rugged PCB design minimize maintenance
• Conformal Coating: Protects against dust, moisture, and chemical contaminants

Seamless System Integration

• Plug‑and‑Play Compatibility: Direct replacement for legacy control boards in ACS1000/2000/5000 drives
• Multi‑Protocol Communication: Supports Ethernet, fieldbus, and serial protocols for easy system integration
• Backplane Connectivity: Direct integration with ABB drive backplanes for simplified installation
• Software Compatibility: Fully compatible with ABB DriveStudio and Control Builder for configuration
• Hot‑Swappable Design: Supports hot‑swapping for minimal downtime during maintenance

Advanced Diagnostics & Monitoring

• Continuous Health Monitoring: Real‑time monitoring of board performance and component health
• Self‑Diagnostics: Built‑in self‑test routines for automatic detection of internal faults
• Event Logging: Comprehensive logging of all fault events, warnings, and operational data
• Remote Monitoring: Enables remote access to diagnostic data via Ethernet for proactive maintenance
• Predictive Maintenance: Historical data trending for early fault detection and performance optimization

Application Scenarios

Medium‑Voltage Drive Systems

• ACS1000/2000/5000 Medium‑Voltage Drives: Primary main control board for ABB’s high‑power medium‑voltage drives
• High‑Power Motor Control: Controls large industrial motors in pumps, fans, compressors, and conveyors
• Variable Speed Drives: Ensures precise and reliable operation of variable‑speed drives in heavy industry
• Drive System Retrofits: Upgrades control capabilities for legacy medium‑voltage drive systems

Power Generation & Transmission

• Power Plant Auxiliaries: Controls drives for boiler feed pumps, fans, and other power plant auxiliaries
• Wind Turbine Converters: Manages medium‑voltage converters in large‑scale wind turbine systems
• Grid Tie Inverters: Controls drives for utility‑scale solar and energy storage inverters
• HVDC Systems: Provides control for power conversion systems in high‑voltage direct current transmission

Oil & Gas Industry

• Refinery Pumps & Compressors: Controls drives in refinery process pumps and compressors
• Pipeline Pumping Stations: Manages drives for long‑distance oil and gas pipeline pumping
• Offshore Platforms: Ensures reliable operation of drives in offshore drilling and production systems
• LNG Facilities: Controls drives for liquefaction and regasification processes

Mining & Metals Processing

• Mining Conveyors: Manages drives for long‑distance mining conveyors and material transport
• Crushers & Grinding Mills: Controls drives for ore crushing and grinding equipment
• Steel Rolling Mills: Provides control for drive systems in hot and cold rolling mills
• Continuous Casting Machines: Manages drives for continuous casting and strip processing lines

Cement & Heavy Manufacturing

• Cement Kilns & Mills: Controls drives in raw material grinding, kiln, and finish milling processes
• Paper & Pulp Mills: Manages drives for paper machines, digesters, and dryer sections
• Chemical Processing: Controls drives in chemical reactors and process equipment
• Marine Propulsion: Provides control for medium‑voltage drives in large marine propulsion systems

General Industrial Applications

• Water Treatment Plants: Controls drives in pumps, aerators, and filtration systems
• Material Handling: Manages drives for cranes, hoists, and warehouse automation
• Extrusion & Mixing: Controls drives for plastic extrusion, rubber mixing, and food processing
• Waste Management: Manages drives for waste incineration and recycling systems
