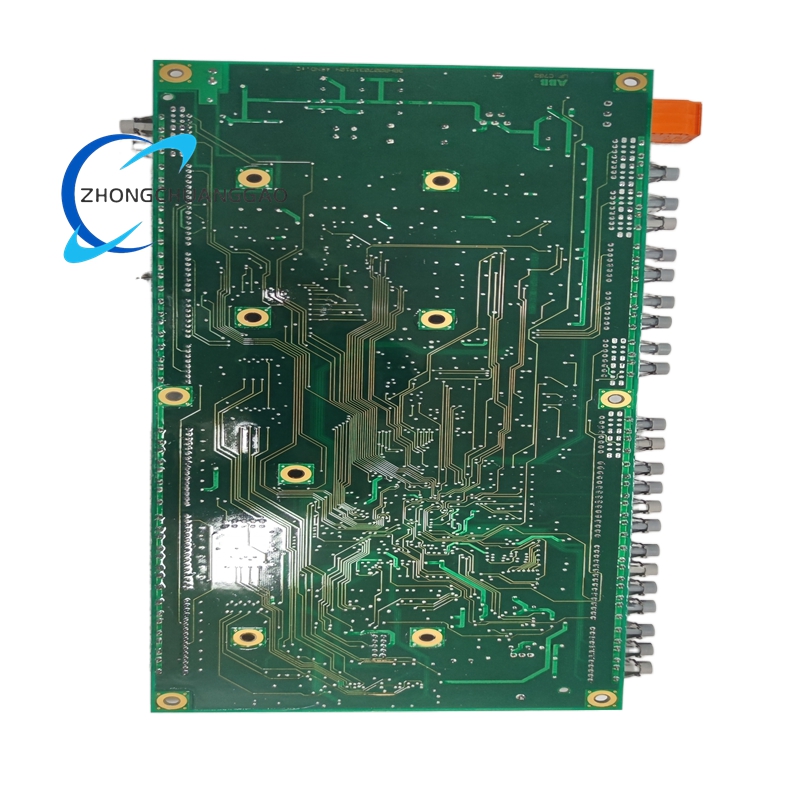

ABB UFC760BE142 High‑Voltage Analog Interface Module

Description

Technical Specifications

• Product Type: High‑Voltage Analog Interface Module
• Signal Compatibility: Supports analog inputs (AI) and outputs (AO), including voltage (0–10 V), current (4–20 mA), and temperature sensor signals (RTD/TC)
• Conversion Accuracy: Analog input accuracy of ±0.1% full scale (FS); analog output accuracy of ±0.2% FS
• Isolation Voltage: 2500 V AC channel‑to‑channel galvanic isolation
• Communication Interfaces: Dual RS485 ports (Modbus RTU); optional Ethernet port (Modbus TCP)
• I/O Configuration: 8 analog input channels and 8 analog output channels (configurable)
• Power Supply: 24 V DC (19.2 V – 30 V DC)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5% – 95% non‑condensing
• Vibration Resistance: 5 g (10–2000 Hz)
• Protection Rating: IP20
• Weight: Approx. 0.4 kg
• Form Factor: Compact PCB module for rack‑mount installation in drive and control cabinets
• Certifications: CE, ATEX (for hazardous areas), IEC 61800‑7 compliant

Key Features

• High‑Voltage Galvanic Isolation: Delivers 2500 V AC isolation between channels, eliminating electrical interference and ensuring safe operation between low‑voltage control and high‑voltage power circuits.
• High‑Precision Signal Conversion: Provides industry‑leading analog signal accuracy (±0.1% FS input, ±0.2% FS output) for precise process control and monitoring.
• Multi‑Protocol Communication: Equipped with dual RS485 (Modbus RTU) and optional Ethernet (Modbus TCP) interfaces for seamless integration with legacy and modern control systems.
• Configurable I/O Channels: Offers 8 analog inputs and 8 analog outputs, each configurable for active or inactive operation to match specific application requirements.
• Robust Signal Conditioning: Filters and amplifies analog signals to maintain signal integrity in noisy industrial environments, ensuring reliable data transmission.
• Advanced Diagnostics: Integrates real‑time monitoring of signal quality, channel status, and module health, enabling proactive maintenance and rapid fault detection.
• Harsh Environment Resilience: Operates reliably in extreme temperatures, high humidity, and industrial vibration, ensuring continuous uptime in demanding settings.
• Seamless System Integration: Designed for direct plug‑and‑play installation into ABB’s high‑power drive and excitation control cabinets, ensuring compatibility with existing architectures.
• Status Indication: Features LED indicators for power, signal activity, and fault conditions, providing at‑a‑glance operational status.
• Hot‑Swappable Design: Supports module replacement without full system shutdown, minimizing downtime during maintenance or upgrades.

Application Scenarios

• Power Generation & Excitation Control: Deployed in gas turbines, steam turbines, and generator excitation systems for precise voltage and current regulation in power plants.
• Metallurgy & Steel Industry: Controls main power circuits in rolling mills, continuous casting machines, and heavy industrial drives requiring high‑power analog signal management.
• Oil & Gas: Used in pumps, compressors, and drilling equipment drives for reliable operation in hazardous and remote locations with ATEX compliance.
• Mining & Minerals: Manages analog control signals for large conveyor systems, crushers, and mills in harsh mining environments with high dust and vibration.
• Marine & Offshore: Integrated into ship propulsion systems, thrusters, and offshore platform drives for marine‑grade reliability and isolation.
• Chemical & Petrochemical: Provides isolated analog interface for reactor control, distillation columns, and material handling systems in chemical processing plants.
• Water & Wastewater: Controls high‑power pumps and valves in water treatment and distribution systems with precise analog signal transmission.
• Manufacturing & Automotive: Offers analog interface for high‑power robotics, assembly lines, and CNC machinery in industrial manufacturing.
