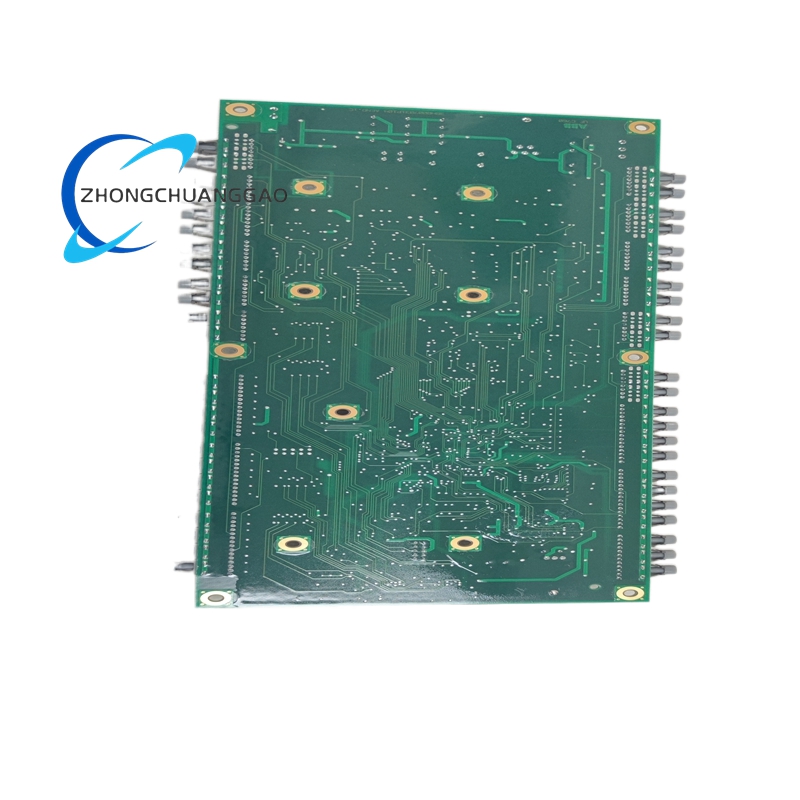

ABB UFC760BE1042 3BHE004573R1042 Interface & Control Module

Description

Technical Specifications

• Product Type: Industrial Interface & Control Module
• Core Processing:
  • Processor: PowerPC 604e at 466 MHz
  • Memory: 128 MB DRAM, 32 MB Flash memory
  • Data Processing Speed: Up to 100 kHz for real‑time control loops
• I/O Configuration:
  • 32 isolated digital input channels (24 V DC)
  • 32 isolated digital output channels (24 V DC, relay‑type)
  • 16 high‑precision analog input channels (0–10 V, 4–20 mA, RTD/TC)
  • 8 analog output channels (0–10 V, 4–20 mA, configurable)
  • 4 high‑speed pulse counter channels (up to 200 kHz)
  • 2 PWM signal generation channels (up to 150 kHz)
• Communication Interfaces:
  • 2 Gigabit Ethernet ports (supports Modbus TCP, Profinet, EtherNet/IP)
  • 2 isolated RS‑485 serial ports (Modbus RTU, BACnet MS/TP, CANopen)
  • 1 fiber optic SFP port (for redundant high‑speed fieldbus networks)
  • Backplane bus connection for direct integration with ABB AC 800M systems
• Signal Isolation: 3000 V AC galvanic isolation between I/O channels and control logic
• Power Supply: 24 V DC (18 V – 32 V DC)
• Operating Temperature: -25°C to +75°C
• Storage Temperature: -40°C to +90°C
• Humidity: 5% – 95% non‑condensing
• Vibration/Shock Resistance: 5 g (5 Hz – 2000 Hz); 30 g shock (11 ms duration)
• Protection Rating: IP20 (panel‑mounted)
• Dimensions: 180 mm × 120 mm × 65 mm (L × W × H)
• Weight: Approx. 0.65 kg
• Certifications: CE, UL, CSA, TUV, ATEX compliant

Key Features

• High‑Speed Processing Power: Equipped with a 466 MHz PowerPC processor and ample memory, enabling rapid data processing and execution of complex control algorithms for real‑time industrial applications.
• Comprehensive I/O Integration: Combines digital, analog, pulse, and PWM I/O in a single module, minimizing hardware footprint and simplifying system architecture.
• Ultra‑Precise Signal Handling: Delivers analog input accuracy of ≤±0.05% full‑scale and fast conversion times (≤20 μs), ensuring reliable data acquisition and control signal output.
• Multi‑Protocol Communication: Supports a full suite of industrial Ethernet and serial protocols, facilitating seamless integration with legacy and modern automation networks.
• Advanced Isolation Technology: Provides 3000 V AC galvanic isolation to eliminate electrical noise, protect sensitive circuitry, and ensure safe operation in high‑voltage industrial environments.
• Redundancy Support: Fiber optic port enables redundant network configurations, enhancing system availability and fault tolerance for critical processes.
• Robust Industrial Design: Constructed with high‑grade materials and engineered to withstand extreme temperatures, humidity, vibration, and electrical interference.
• Built‑In Diagnostics: Features comprehensive self‑monitoring and fault detection capabilities, including LED status indicators for power, communication, I/O health, and system faults.
• Hot‑Swappable Design: Allows for module replacement without shutting down the entire system, significantly reducing maintenance downtime.
• Seamless System Integration: Designed for direct plug‑and‑play installation into ABB AC 800M DCS racks, ensuring full compatibility and simplified setup.
• Data Logging & Storage: Onboard Flash memory stores configuration parameters, historical data, and fault logs for process analysis and troubleshooting.

Application Scenarios

• Power Generation & Distribution: Deployed in turbine control, generator excitation systems, and power plant automation for precise I/O management and grid synchronization.
• Oil & Gas Industry: Used in refineries, offshore platforms, and pipeline control systems for process monitoring, valve actuation, and safety interlocking.
• Chemical & Petrochemical Processing: Manages complex analog and digital signals for reactors, distillation columns, and material handling in continuous and batch processes.
• Metallurgy & Mining: Controls heavy machinery, conveyor systems, and material processing equipment in smelters, mills, and mining operations requiring high reliability.
• Water & Wastewater Treatment: Integrates with pump stations, filtration systems, and distribution networks for automated flow, level, and pressure control.
• Pharmaceutical & Biotechnology: Ensures strict regulatory compliance and precise process control in sterile manufacturing and bioreactor operations.
• Food & Beverage Production: Provides reliable I/O and communication for temperature, pressure, and speed control in hygienic production and packaging lines.
• Manufacturing & Machinery: Used in machine tools, robotics, and assembly lines for high‑precision motion control and sensor data acquisition.
• Marine & Offshore: Operates in shipboard automation and offshore drilling systems, withstanding harsh marine environments and ensuring stable control.
• General Industrial Automation: Serves as a universal interface module for connecting diverse field devices to ABB control systems across all industrial sectors.
