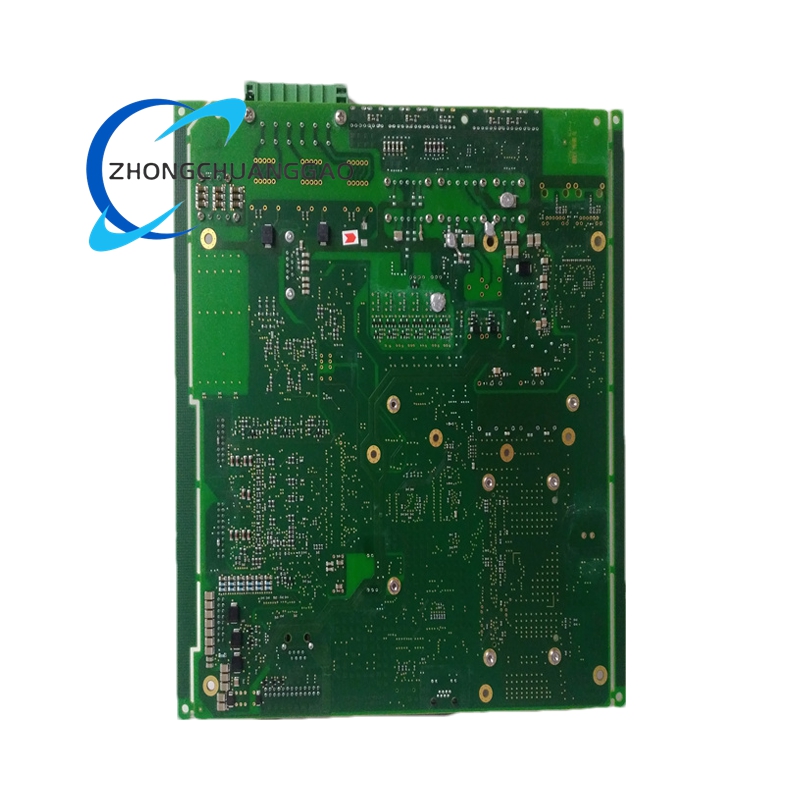

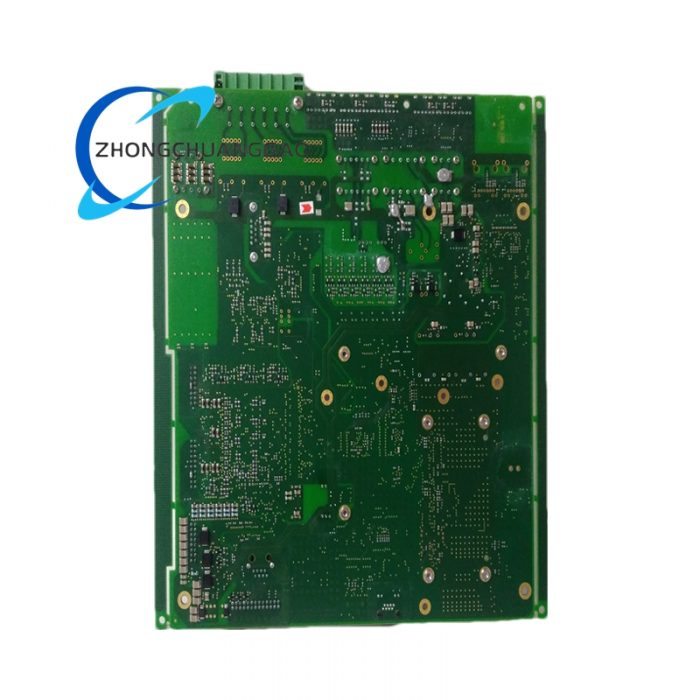

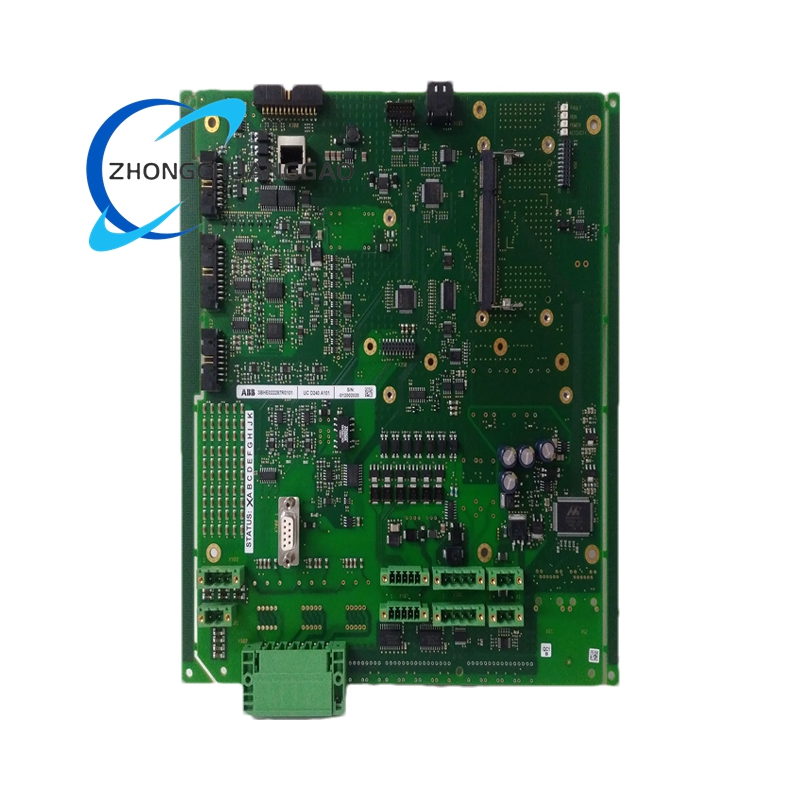

ABB UCD240A101 3BHE022287R0101

Description

• High-Precision Control: Adopts 32-bit ARM Cortex-M7 processor with floating-point arithmetic unit, supporting complex control algorithms (PID, fuzzy control) for precise regulation of industrial processes.
• Multi-Protocol Communication: Compatible with Ethernet (TCP/IP), Modbus RTU, and CANopen protocols, enabling seamless integration with upper-level monitoring systems and lower-level field devices.
• Flexible I/O Configuration: Offers configurable digital and analog I/O channels, allowing customization to match different application requirements without additional hardware modifications.
• Built-in Diagnostics: Features real-time fault detection (overvoltage, overcurrent, communication failure) and status monitoring, with clear fault codes output via communication ports for quick troubleshooting.
• Redundancy Support: Supports dual-module redundancy configuration to enhance system reliability, ensuring continuous operation even if one module fails.
• Rugged Design: Complies with IP20 protection class for the board itself, and withstands wide temperature and humidity ranges, suitable for harsh industrial environments.
• Easy Programming: Compatible with ABB’s standard programming software (e.g., Control Builder M), providing a user-friendly interface for logic configuration and parameter setting.

• Power Generation: Used in thermal power plants and hydropower stations for control of auxiliary systems (feedwater pumps, fan speed, fuel supply) to maintain stable power output.
• Petrochemical Industry: Applied in oil refineries and chemical plants for process control (temperature, pressure, flow regulation of reaction vessels, pipelines) to ensure production safety and product quality.
• Manufacturing Automation: Integrated into assembly lines (automotive, electronics) for control of robotic arms, conveyor belts, and inspection equipment, optimizing production efficiency.
• Water Treatment: Used in wastewater treatment plants and water supply systems for control of pumps, valves, and chemical dosing units, ensuring compliance with water quality standards.
• Metallurgy: Deployed in steel mills and aluminum smelters for control of heating furnaces, rolling machines, and cooling systems, maintaining stable production processes and product specifications.
