Product Short Description
Product Introduction

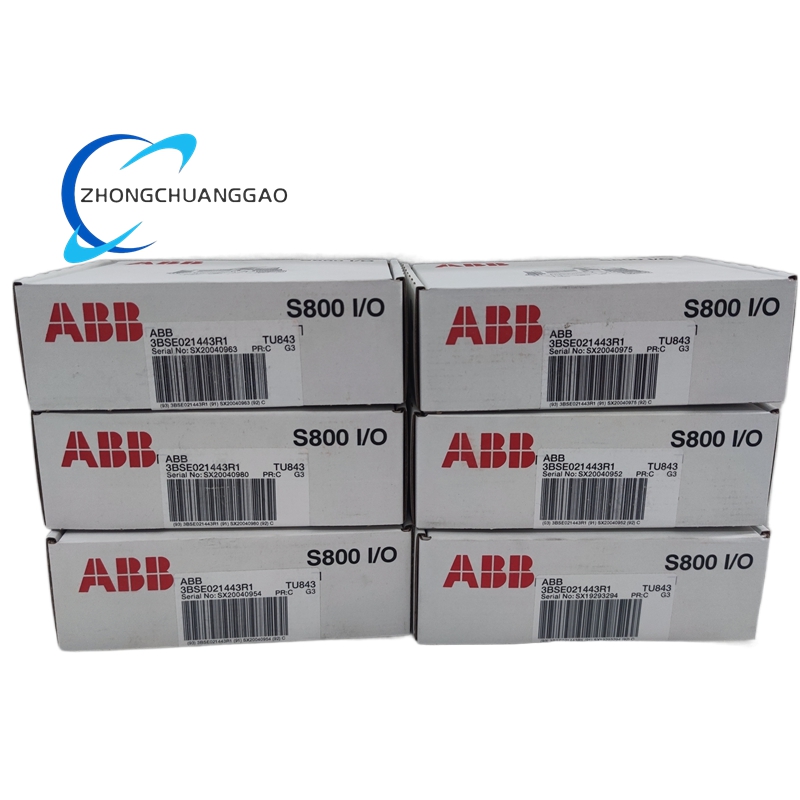

The ABB TU843 is a redundant Module Termination Unit designed for the ABB S800 I/O system and Advant 800xA DCS platform. It serves as a critical interface between field I/O modules and the control system, providing secure, redundant signal and power connections. Engineered for high-reliability industrial environments, it enables vertical DIN-rail mounting and supports up to 16 I/O channels, ensuring robust system operation and simplified maintenance.
Technical Specifications
- Part Number: 3BSE021443R1
Description
- Type: Redundant Module Termination Unit (MTU)
- Channels: 16 I/O channels (2 terminals per channel)
- Voltage Rating: Max. 50 V DC
- Current Rating: Max. 3 A per channel
- Mounting: Vertical DIN rail mounting
- Connection Type: Screw terminal block
- Compatible I/O Modules: AI843, AO845, AO845A, DI840, DI880, DO840, DO880, DP840
- Redundancy: Full redundant I/O base support
- Certifications: CE marked
- Dimensions: 47 x 186 x 124 mm
- Weight: Approx. 0.45–0.5 kg
- Operating Temperature: -25°C to +60°C
- Humidity: 5%–95% non-condensing
Key Features
- Redundant Architecture: Provides dual ModuleBus connections and redundant I/O paths to eliminate single points of failure, ensuring continuous system operation.
- Mechanical Keying: Prevents incorrect insertion of I/O modules, safeguarding hardware and ensuring proper configuration.
- Secure DIN-Rail Mounting: Equipped with a latching mechanism for stable grounding and reliable installation.
- High Channel Density: Accommodates up to 16 field signal and process power connections in a compact footprint.
- ModuleBus Distribution: Distributes two ModuleBuses to I/O modules and cascades to adjacent MTUs, generating correct addressing via position signal shifting.
- Wide Environmental Tolerance: Operates reliably across a broad temperature and humidity range, suitable for harsh industrial settings.
- Easy Wiring & Maintenance: Terminal block design simplifies field wiring, while modularity supports quick replacement and system expansion.
Applications
- Process Automation & DCS: Core component in ABB Advant 800xA and AC800M control systems for oil & gas, chemical, and refining plants.
- Power Generation & Distribution: Used in power plant control systems for reliable I/O signal management in turbine, boiler, and grid control applications.
- Manufacturing & Machinery: Integrated into automated production lines, PLC-based systems, and heavy machinery control for high-availability signal termination.
- Water & Wastewater: Deployed in SCADA and process control systems for water treatment plants, ensuring stable operation of pumps, valves, and monitoring instruments.
- Marine & Offshore: Suitable for shipboard and offshore control systems where redundancy and durability are critical.
- Industrial Infrastructure: Applied in intelligent fire protection, building management, and critical infrastructure control systems requiring uninterrupted operation.
