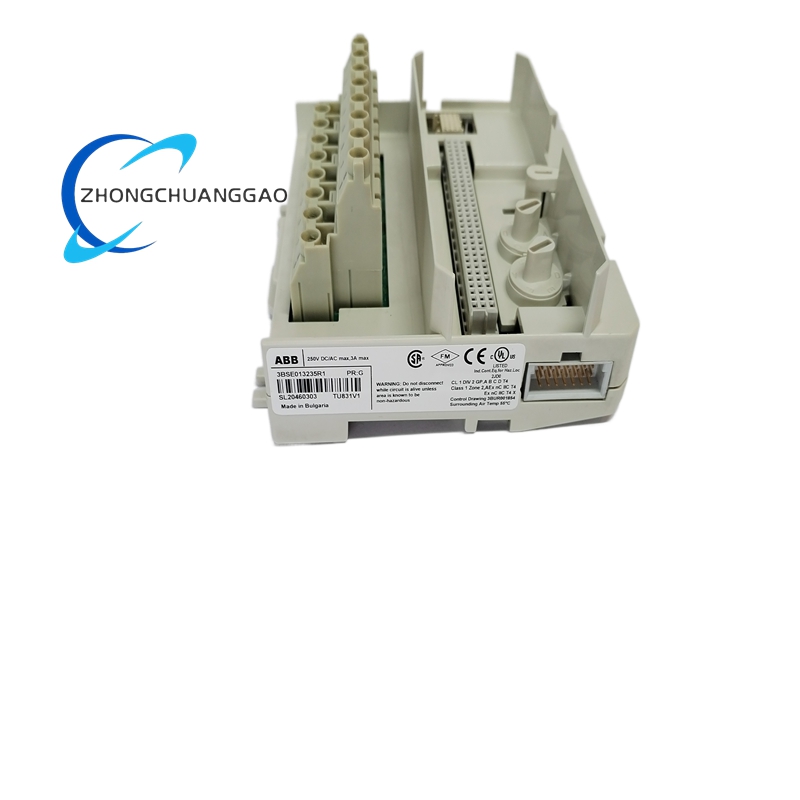

ABB TU831V1 3BSE013235R0001 S800 I/O Extended Module Termination Unit (MTU)

Description

Technical Specifications

Core Connection & Electrical Specifications

Mechanical & Physical Specifications

Environmental & Compliance Specifications

Key Features

High-Capacity Field Connectivity

• 8-Channel Support: Delivers up to 8 isolated I/O channels with dual terminals per channel, accommodating solid and stranded wires up to 6 mm², enabling flexible connection to diverse field devices including analog transmitters, digital sensors, and actuators.
• High Current Rating: 3 A per channel supports high-power field devices such as solenoid valves, motor starters, and heating/cooling controls, eliminating the need for external relay modules in many applications.
• Enhanced Voltage Tolerance: 250 V maximum rating extends usability in high-voltage industrial circuits, providing reliable signaling in process control and power distribution systems.

Robust Signal Integrity & System Integration

• ModuleBus Distribution: Efficiently distributes the ModuleBus to connected I/O modules and cascades to additional MTUs, ensuring consistent communication across the S800 I/O network.
• Automatic Addressing: Generates unique module addresses by shifting position signals, simplifying system configuration and reducing programming complexity.
• Galvanic Isolation: Internal isolation between field interfaces and control logic minimizes signal interference, ground loops, and voltage transients, ensuring data accuracy in electrically noisy environments.
• Mechanical Keying: Prevents incorrect insertion of non-compatible I/O modules, safeguarding system integrity and reducing installation errors.

Industrial-Grade Reliability & Durability

• DIN-Rail Latching: Integrated mechanical latch secures the unit to DIN rails, providing stable grounding and resistance to vibration, a critical feature for mobile and heavy industrial applications.
• Wide Temperature Operation: -40 °C to +70 °C temperature range ensures performance in extreme environments, from cold storage facilities to high-temperature manufacturing plants.
• IP20 Protection: Defined enclosure rating prevents accidental contact with internal components and limits dust accumulation, maintaining reliability in dusty and harsh industrial settings.
• Compliant Safety Design: Meets international electrical safety standards, ensuring safe operation in industrial environments with strict regulatory requirements.

Easy Installation & Maintenance

• Tool-Terminal Design: Tool-tightened terminals with recommended torque settings ensure secure, consistent connections, reducing the risk of loose wiring and system downtime.
• Cascadable Architecture: Supports daisy-chain connection to additional MTUs, simplifying expansion of I/O capacity without complex reconfiguration.
• Hot Swap Compatibility: Integrates with S800 I/O’s hot-swap capability, allowing replacement of I/O modules or MTUs during system operation to minimize production interruptions.
• Compact Footprint: Space-saving design optimizes control cabinet layout, ideal for applications with limited installation space.

Application Scenarios

Process Industries

• Oil & Gas Upstream/Downstream: Connects pressure, temperature, and flow transmitters in refineries, pipelines, and offshore platforms, ensuring reliable data acquisition in hazardous areas.
• Petrochemical & Chemical Plants: Supports high-density I/O for reactor control, distillation columns, and safety instrumented systems (SIS) with robust electrical isolation and wide temperature tolerance.
• Pharmaceutical & Food & Beverage: Facilitates connection to sensors in cleanroom environments, batch processing systems, and hygienic production lines, complying with IP20 and EMC standards.
• Pulp & Paper: Enables communication with sensors across paper machine control systems, quality monitoring, and material handling applications.

Power Generation & Utilities

• Thermal & Hydroelectric Power Plants: Integrates field devices for boiler, turbine, and generator control, ensuring stable signaling in high-voltage, high-temperature environments.
• Renewable Energy (Wind/Solar): Connects sensors and actuators in wind turbine arrays, solar farm inverters, and grid integration systems, supporting cascaded I/O expansion.
• Water & Wastewater Treatment: Provides reliable connectivity for pumps, valves, aeration systems, and filtration processes, with galvanic isolation protecting against corrosive environments.

Manufacturing & Industrial Production

• Automotive Assembly Lines: Supports high-speed I/O for robotic systems, welding stations, and conveyor controls, with vibration-resistant DIN-rail mounting ensuring performance.
• Metal Processing & Mining: Connects sensors in furnaces, rolling mills, and mining equipment, operating reliably in dusty, high-temperature conditions.
• Plastics & Rubber: Facilitates communication with extrusion and molding machinery controls, delivering high current capacity for solenoid valves and actuators.

Infrastructure & Building Automation

• Data Centers: Integrates with environmental monitoring systems, cooling units, and power distribution equipment, ensuring reliable signaling in 24/7 critical infrastructure.
• HVAC & Building Management: Connects temperature, humidity, and airflow sensors in large commercial complexes, supporting flexible I/O expansion and easy maintenance.
• Transportation Hubs: Supports baggage handling systems, runway lighting, and terminal management equipment, with wide temperature tolerance ensuring operation in outdoor/indoor environments.

Marine & Offshore Applications

• Offshore Platforms & FPSOs: Operates reliably in harsh marine environments, providing I/O connectivity for topside process systems and utility equipment.
• Marine Vessels: Supports engine control, cargo handling, and navigation system sensors, with vibration resistance and IP20 protection ensuring long-term performance.
