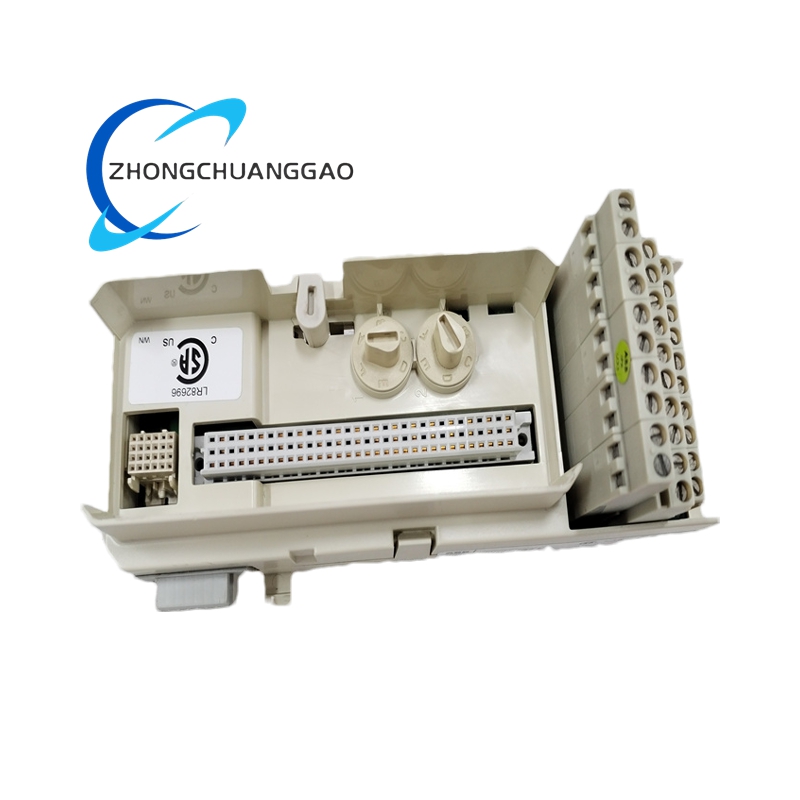

Product Short Description
Technical Specifications
- Electrical Ratings:
- Rated Voltage: 50 V AC/DC
- Rated Current: 2 A per channel (max 5 A)
- Dielectric Strength: 500 V AC
- Wire Compatibility:
- Solid wire: 0.2–4 mm² (24–12 AWG)
- Stranded wire: 0.2–2.5 mm² (24–12 AWG)
- Communication:
- ModuleBus interface for I/O module integration.
- Supports PROFIBUS DP and FOUNDATION Fieldbus protocols (varies by version).
Description
- Mechanical Design:
- Dimensions: 64 × 170 × 58.5 mm (W × H × D)
- Weight: 0.2 kg
- DIN rail mounting for standard industrial cabinets.
- IP20 protection rating (dust-resistant, indoor use).
- Environmental:
- Operating Temperature: -20°C to +60°C (-4°F to +140°F).
- Humidity: Up to 95% non-condensing.
Key Features
- Compact Design: Space-saving 16-channel layout with high-density wiring.
- Mechanical Keying: Two keys prevent incorrect I/O module insertion, offering 36 configuration options.
- Electrical Isolation: Reduces interference between channels and modules.
- Grounding: DIN rail locking device for secure electrical grounding.
- Signal Integrity: ModuleBus distribution ensures stable data transmission.
- Hot-Swappable: Supports online module replacement without system shutdown.
- Robust Construction: Industrial-grade materials for harsh environments (vibration, dust, moisture).
Functional Capabilities
- Signal Termination: Connects up to 16 field signals (analog/digital) to I/O modules.
- Address Generation: Automatically assigns correct addresses to I/O modules via output signal shifting.
- Bus Distribution: Shares ModuleBus resources between I/O modules and adjacent MTUs.
- Diagnostics: LED indicators for power and communication status (varies by version).
- Redundancy Support: Compatible with redundant power supplies and fieldbus networks.
Application Scenarios
- Process Industries:
- Chemical plants: Temperature/pressure control in reactors.
- Oil refineries: Pipeline monitoring and valve actuation.
- Pharmaceuticals: Batch process automation.
- Power Generation:
- Thermal power plants: Turbine and boiler control.
- Renewable energy: Wind farm grid synchronization.
- Manufacturing:
- Automotive: Robotic welding and assembly line control.
- Electronics: Precision motion control for semiconductor fabrication.
- Water Treatment:
- Wastewater plants: pH/turbidity monitoring and pump control.
- Desalination: Reverse osmosis system automation.
- Oil and Gas:
- Remote wellheads: Pressure/flow monitoring and safety shutdowns.
- Pipeline networks: Leak detection and SCADA integration.
- Transportation:
- Rail systems: Signal control and train position tracking.
- Ports: Crane automation and cargo handling.
Advantages
- Scalability: Supports up to 12 I/O modules per base, with fiber-optic clustering for large-scale deployments.
- Cost Efficiency: Reduces wiring complexity and panel space.
- Interoperability: Seamlessly integrates with ABB 800xA DCS, AC 800M controllers, and third-party systems.
- Future-Proof: Firmware updates and protocol expansions (e.g., PROFIBUS to Ethernet).
- Safety Compliance: Meets IEC and CENELEC standards for industrial automation.
