Product Short Description
Product Description

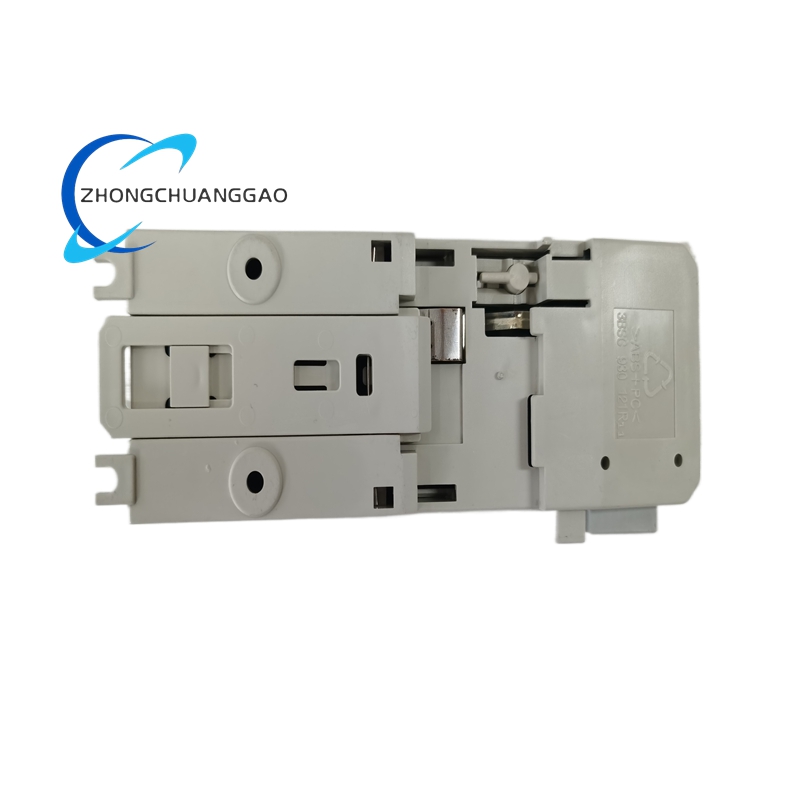

The ABB TU810V1 is a high-performance, 16-channel compact module termination unit designed exclusively for the ABB S800 I/O distributed control system. As a passive interface component, it serves as the critical connection point between field wiring and S800 I/O modules, providing secure signal termination, ModuleBus distribution, and mechanical keying for correct I/O module pairing. It integrates seamlessly into ABB’s System 800xA and Advant OCS control architectures, enabling reliable, space-efficient I/O connectivity in industrial automation environments. The unit supports hot-swap functionality and cascaded expansion via the internal ModuleBus, making it ideal for modular, scalable control system design.
Description
Technical Specifications
Core Electrical & Communication Parameters
| Parameter | Specification |
|---|---|
| Product Type | Compact Module Termination Unit (MTU) |
| Compatible System | ABB S800 I/O, System 800xA, Advant OCS |
| Number of Channels | 16 channels (2 × 8 signal terminal blocks) |
| Voltage Rating | 50 V DC (process signal) |
| Power Supply | 24 V DC (±10%) |
| Current Rating | 2 A per channel (continuous); 5 A per channel (peak) |
| Communication Interface | Internal ModuleBus (supports cascading and address generation) |
| Isolation Voltage | 500 V AC (channel-to-channel and channel-to-power) |
| Wire Compatibility | Solid: 0.2–4 mm²; Stranded: 0.2–2.5 mm² (24–12 AWG) |
| Mechanical Keying | Dual mechanical keys (6 positions each, 36 total configurations) for I/O module matching |
Physical & Environmental Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 186 mm (H) × 124 mm (W) × 47 mm (D) (including latch) |
| Weight | Approx. 0.5 kg (including base) |
| Mounting | DIN rail or direct panel mounting (horizontal/vertical) |
| Operating Temperature | Horizontal: -20 °C to +55 °C; Vertical: -20 °C to +40 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% RH (non-condensing) |
| Protection Rating | IP20 (suitable for indoor control cabinets) |
| EMC Compliance | IEC 61000-4 series (industrial EMC standards) |
| Certifications | CE, RoHS (2011/65/EU), WEEE Category 5 |
Supported I/O Modules
- Analog Input: AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI845
- Analog Output: AO810, AO810V2, AO815, AO820, AO845, AO845A
- Digital Input: DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885
- Digital Output: DO810, DO814, DO815, DO840, DO880
- Pulse/Count: DP820, DP840
Core Functions & Features
1. Reliable Signal Termination & Distribution
- 16-Channel Compact Design: 2×8 terminal blocks provide high-density signal termination, maximizing cabinet space utilization.
- ModuleBus Integration: Distributes the internal ModuleBus to the mounted I/O module and cascades to adjacent MTUs, enabling daisy-chain expansion.
- Automatic Addressing: Generates unique I/O module addresses via position signal shifting, eliminating manual address configuration.
- Secure Wiring: Removable terminal blocks with screw connections ensure stable, vibration-resistant field wiring connections.
2. Mechanical Keying & Compatibility
- Dual Key Configuration: Two mechanical keys with six positions each (36 combinations) prevent incorrect I/O module installation, ensuring system integrity.
- Universal I/O Support: Compatible with a full range of S800 I/O analog, digital, and pulse modules, offering unmatched flexibility.
- Hot-Swap Capability: Supports live replacement of I/O modules without system shutdown, minimizing downtime.
3. Industrial-Grade Durability
- Robust Construction: Flame-retardant housing (IEC 60332-1) withstands harsh industrial conditions and mechanical stress.
- Wide Temperature Tolerance: Operates reliably in extreme temperature environments, suitable for diverse industrial locations.
- High Isolation: 500 V AC isolation protects against ground loops and electrical interference, ensuring signal integrity.
- Maintenance-Free: Passive design with no active components, delivering high MTBF and minimal maintenance requirements.
4. Scalability & System Integration
- Cascadable Architecture: Supports unlimited daisy-chaining of MTUs via ModuleBus, enabling large-scale I/O expansion.
- Seamless System Compatibility: Integrates natively with ABB 800xA DCS, Advant OCS, and AC 800M controllers.
- Flexible Mounting: Horizontal or vertical DIN rail/panel mounting adapts to various cabinet layouts.
- Diagnostic Support: Works with S800 I/O module diagnostics for real-time status monitoring and fault detection.
Application Scenarios
- Process Industries: Deployed in chemical, petrochemical, and pharmaceutical plants for analog/digital I/O termination in reactor control, distillation, and batch processing systems.
- Power Generation: Used in thermal, hydro, and wind power plants for turbine, generator, and substation I/O connectivity, supporting high-reliability control.
- Oil & Gas: Installed in refineries, offshore platforms, and pipeline stations for process monitoring and safety instrumented system (SIS) I/O termination.
- Mining & Metals: Provides robust I/O connectivity in smelting, crushing, and material handling systems, operating in high-vibration, dusty environments.
- Water & Wastewater: Used in treatment plants for pump control, valve actuation, and water quality monitoring I/O termination.
- Food & Beverage: Supports hygienic process control I/O in brewing, dairy, and packaging lines, meeting industry hygiene standards.
- Marine & Offshore: Deployed on ships and rigs for engine room, navigation, and process control I/O, withstanding marine environmental conditions.
- Manufacturing Automation: Integrated into automotive, packaging, and assembly lines for discrete control I/O, enabling high-speed production.
Unique Advantages
- Space Efficiency: Compact 16-channel design reduces cabinet footprint by up to 50% compared to traditional terminal blocks.
- Cost Savings: Simplified wiring and cascaded ModuleBus reduce installation time and cabling costs.
- System Integrity: Mechanical keying eliminates human error in I/O module installation, ensuring correct system configuration.
- Unmatched Compatibility: Supports the entire S800 I/O module range, offering a universal termination solution.
- High Reliability: Passive, isolated design ensures long-term operation in the harshest industrial environments.
