Product Short Description
Product Description

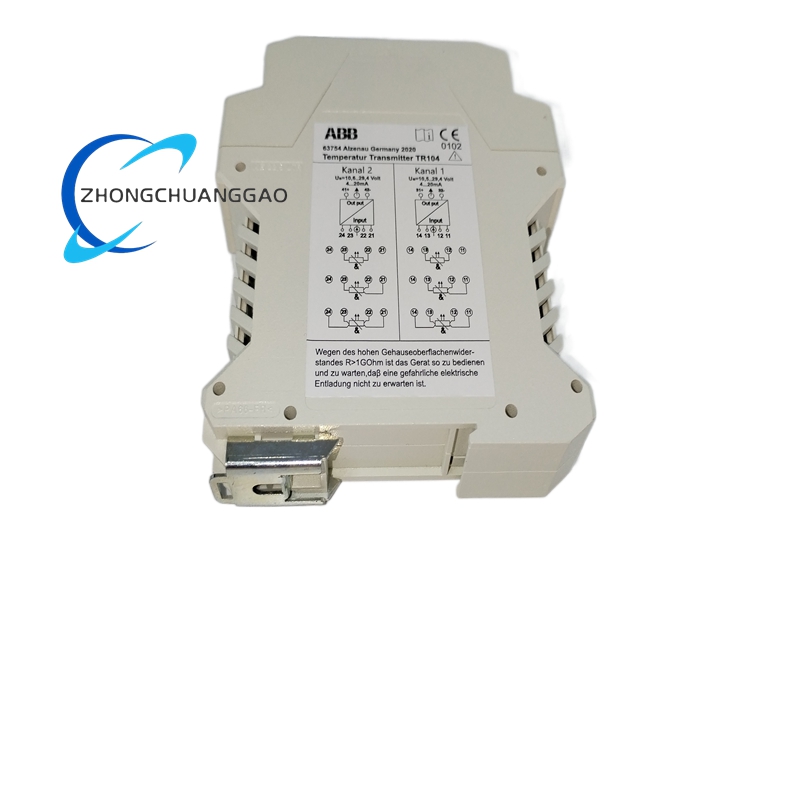

The ABB TR104 is a compact, high-performance, 1-channel DIN rail-mounted temperature transmitter designed for industrial process automation. It converts low-level signals from resistance temperature detectors (RTDs) and thermocouples into a standardized, isolated 4–20 mA analog output using two-wire loop-powered technology. This device serves as a critical interface between field temperature sensors and control systems (such as PLCs, DCS, and SCADA), providing galvanic isolation, signal linearization, and noise immunity to ensure accurate and reliable temperature measurement in harsh industrial environments. It is part of ABB’s T-series universal loop-powered transmitters, optimized for space-saving installations and easy integration into distributed control architectures.
Description
Technical Specifications
Core Measurement & Electrical Parameters
| Parameter | Specification |
|---|---|
| Product Type | DIN Rail Mounted Temperature Transmitter |
| Input Types | RTD: Pt100 (2/3/4-wire), Pt1000, Ni100; Thermocouple: J, K, T, E, N, R, S, B |
| Output Signal | 4–20 mA DC (two-wire, loop-powered) |
| Power Supply | 10.5–30 V DC (loop-powered, no separate power required) |
| Isolation Voltage | 2.5 kV AC RMS (input-to-output galvanic isolation) |
| Accuracy | RTD: ±0.1% of span; Thermocouple: ±0.25% of span |
| Response Time | 0.5–10 seconds (configurable based on model variant) |
| Temperature Ranges | RTD: -200 °C to +850 °C; Thermocouple: -270 °C to +1820 °C (type-dependent) |
| Signal Linearization | Built-in linearization for all supported RTD and thermocouple types |
Physical & Environmental Specifications
| Parameter | Specification |
|---|---|
| Mounting | 35 mm DIN rail (EN 60715 standard) |
| Dimensions | 6 mm (W) × 108 mm (H) × 115 mm (D) (ultra-slim design) |
| Weight | Approx. 80 grams |
| Operating Temperature | -40 °C to +85 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5%–95% RH (non-condensing) |
| Protection Rating | IP20 (suitable for indoor control panel installation) |
| Flammability | IEC 60332-1 (flame-retardant construction) |
| EMC Compliance | IEC 61000-4 series (industrial EMC standards) |
| Certifications | CE, UL, CSA, IEC 61010-1, IEC 61326-1, RoHS, REACH |
Core Functions & Features
1. High-Precision Signal Conversion
- Universal Sensor Compatibility: Accepts all standard RTD and thermocouple inputs, eliminating the need for multiple transmitter models.
- Automatic Linearization: Performs precise linearization of non-linear sensor signals, ensuring accurate temperature representation across the entire measurement range.
- Two-Wire Loop Power: Draws power directly from the 4–20 mA control loop, simplifying wiring and reducing installation costs by eliminating separate power cables.
- Galvanic Isolation: 2.5 kV isolation breaks ground loops and protects control systems from electrical noise and surges, critical for stable operation in industrial plants.
2. Industrial-Grade Reliability
- Ultra-Slim Design: 6 mm width allows high-density mounting on DIN rails, maximizing cabinet space utilization.
- Wide Temperature Tolerance: Operates reliably in extreme temperatures from -40 °C to +85 °C, suitable for harsh process environments.
- Vibration & Shock Resistance: Robust construction withstands industrial vibration and mechanical stress, ensuring long-term stability.
- Maintenance-Free Operation: Solid-state design with no moving parts, delivering high MTBF (Mean Time Between Failures) and minimal maintenance requirements.
3. Easy Integration & Configuration
- Plug-and-Play Installation: Removable terminal blocks enable quick wiring and replacement without disrupting the entire loop.
- No Software Required: Configured via DIP switches or hardware settings (no PC or software needed for basic setup).
- System Compatibility: Seamlessly integrates with all major industrial control systems, including ABB 800xA, Siemens PLCs, Rockwell Automation, and Schneider Electric platforms.
- Diagnostic Capabilities: Built-in fault detection for sensor breakage, short circuits, and loop errors, simplifying troubleshooting.
Application Scenarios
- Process Industries: Used in chemical, petrochemical, and pharmaceutical plants for reactor temperature control, distillation column monitoring, and sterile process validation (compliant with FDA 21 CFR Part 11).
- Power Generation: Monitors bearing and winding temperatures in generators, turbines, and transformers in thermal, hydro, and wind power plants.
- Oil & Gas: Deployed in refineries, offshore platforms, and pipeline stations for temperature measurement in crude oil processing, storage, and transportation.
- Food & Beverage: Ensures precise temperature control in sterilization, fermentation, baking, and cold-chain logistics, meeting strict hygiene and quality standards.
- HVAC & Building Automation: Monitors chilled water, hot water, and ambient temperatures in commercial buildings and industrial HVAC systems.
- Metals & Mining: Provides reliable temperature measurement in smelting, rolling mills, and ore processing facilities under high-temperature and dusty conditions.
- Water & Wastewater: Controls temperature in water treatment plants, sludge digestion, and effluent processing systems.
- Marine & Offshore: Installed on ships and offshore rigs for engine room temperature monitoring and marine process control.
Unique Advantages
- Space-Saving Design: Ultra-slim 6 mm profile allows up to 160 transmitters per meter of DIN rail, ideal for compact control panels.
- Cost Efficiency: Two-wire technology reduces wiring costs and installation time compared to four-wire transmitters.
- Signal Integrity: Superior isolation and noise rejection ensure accurate data transmission over long cable runs in electrically noisy environments.
- Versatility: Supports all standard temperature sensors, making it a universal solution for diverse industrial temperature measurement needs.
- Regulatory Compliance: Meets international safety and EMC standards, suitable for use in regulated industries such as pharmaceuticals and nuclear power.
