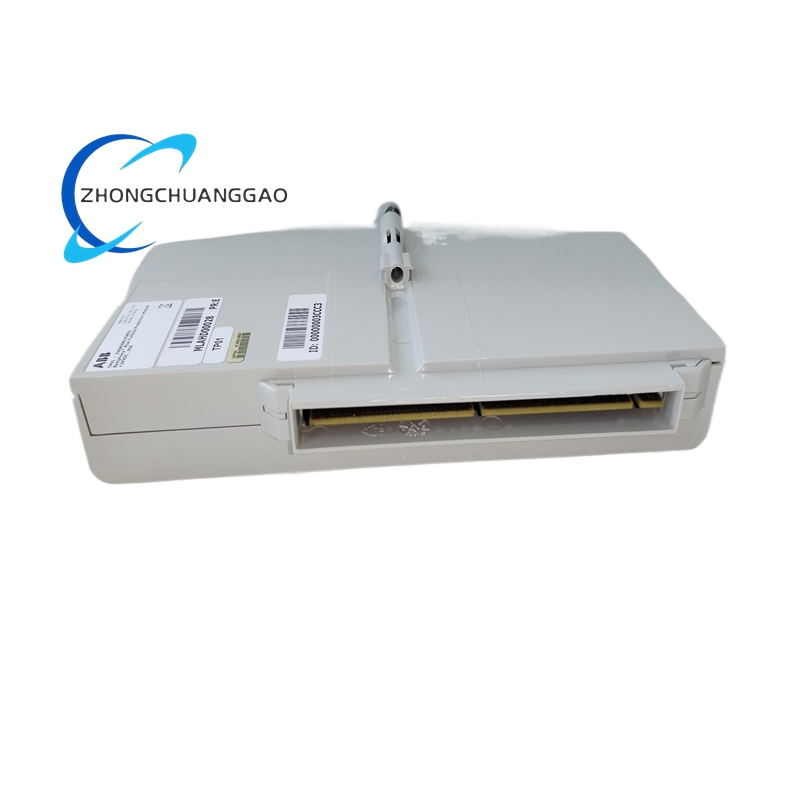

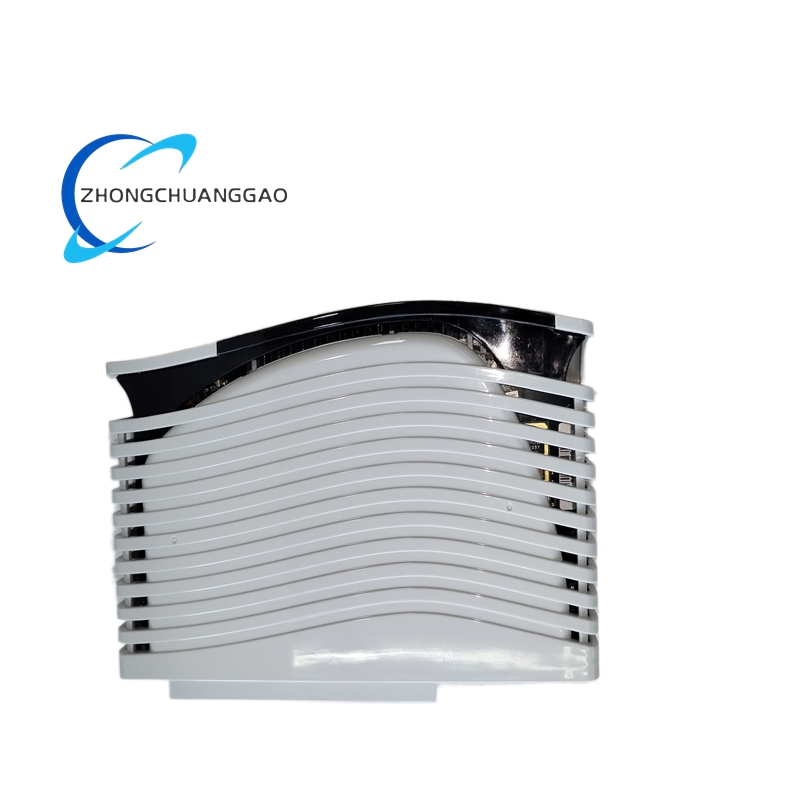

The ABB TP01 (87TP01-E/R1210) is a dedicated communication coupling module engineered for the ABB PROCONTROL P14 power plant and industrial process control system. It serves as the critical bridge between the PROCONTROL station bus and external automation systems, enabling seamless, bidirectional data exchange while ensuring signal integrity, protocol conversion, and electrical isolation. Paired with the 87TS01 series coupling modules, it manages data formatting, signal marshaling, and protocol translation, supporting reliable communication in mission-critical applications such as thermal power, hydropower, petrochemical, and large-scale process automation.
Description
Technical Specifications
Core Electrical & Communication Parameters
| Parameter | Specification |
|---|---|
| Product Type | PROCONTROL P14 Communication Coupling Module |
| Compatible System | ABB PROCONTROL P14 |
| Power Supply | 24 V DC (station bus-powered, USA/USB) |
| Current Consumption | Approx. 200 mA |
| Power Dissipation | 5 W |
| Communication Interfaces | – External system: RS232/RS422/RS485 (selectable via connector X21)
– 87TS01 link: Dual RS232 (9600/19200 baud, max 1 m) – Service PC: RS232 (9600 baud, max 6 m) |
| Max External System Distance | 15 m (RS232); extendable via RS422/RS485 |
| Data Throughput | – TP01 → 87TS01: Max 3 send jobs, 100 telegrams/sec (16 bits each)
– 87TS01 → TP01: Max 5 listen jobs, 100 telegrams/sec (16 bits each) |
| Signal Capacity | Up to 1024 signals per 87TS01 (bidirectional); supports binary, analog, counter, and time-stamped data |
| Isolation | 3 potential-isolated external system interfaces; galvanic isolation for noise immunity |
Environmental & Physical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -25 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% RH (non-condensing) |
| EMC Compliance | IEC 61000-4-2 (ESD, Class 3), IEC 61000-4-3 (RF, Class 3), IEC 61000-4-4 (EFT, Class 3), IEC 61000-4-5 (Surge, Class 3)eero |
| Certifications | CE (2014/30/EU, 2011/65/EU RoHS)eero |
| Weight | Approx. 0.38 kg |
| Mounting | PROCONTROL P14 station bus subrack (24 V supply) |
| Form Factor | Standard industrial module, 48-pole edge connector (X11) for station bus; 32-pole edge connector (X21) for external system I/O |
Implemented Protocols
- MODBUS
- 3964R (Siemens)
- ANSI X3.28
- TELEPERM ME
- PROCONTROL P14 Standard Protocol (event-driven data transfer)
Core Functions & Features
1. Seamless System Integration & Protocol Conversion
- Dual Interface Linking: Connects PROCONTROL P14 station bus (via 87TS01) to external systems (SCADA, DCS, PLCs, HMI) via RS232/RS422/RS485, unifying disparate communication architectures.
- Automatic Protocol Translation: Converts PROCONTROL P14 telegrams to external system formats and vice versa, including bit-level marshaling, analog value scaling, and counter data formatting.
- Self-Learning Address Lists: Automatically generates signal address lists for 87TS01 modules via service PC, eliminating manual configuration and reducing setup errors.
- Event-Driven Data Transfer: Transmits data only on signal changes (per PROCONTROL protocol), optimizing bandwidth and ensuring real-time responsiveness.
2. Robust Signal Integrity & Reliability
- Potential Isolation: 3 isolated external interfaces prevent ground loops and protect against electrical surges, critical in industrial environments.
- High EMI/RFI Immunity: Complies with strict industrial EMC standards, ensuring error-free communication in electrically noisy power and process plantseero.
- Redundant Power Support: Operates reliably with 24 V DC station bus power, suitable for mission-critical systems requiring high availability.
- Onboard Diagnostics: Front-panel LEDs (RUN, ST, SG, SK1, SK2, DK1, DK2) provide real-time status of communication links, module health, and faults for rapid troubleshooting.
3. Scalability & System Flexibility
- Cascadable Design: Supports up to 5 cascaded 87TS01 modules, expanding signal capacity to 5120 signals (bidirectional) for large-scale systems.
- Dual RS232 Grouping: Allows separation of send/receive functions via two RS232 interfaces, improving network efficiency and reducing collisions.
- Modular Expansion: Integrates seamlessly with existing PROCONTROL P14 infrastructure, enabling cost-effective system upgrades without full replacement.
- Service Interface Compatibility: Works with standard PCs (386+) via RS232 for configuration, diagnostics, and firmware updates.
Application Scenarios
- Thermal & Hydropower Plants: Connects PROCONTROL P14 to turbine/generator control systems, SCADA, and grid management systems for real-time monitoring and control.
- Petrochemical & Refining Facilities: Links process control systems to external safety instrumented systems (SIS) and batch management platforms, ensuring compliance with industry standards.
- Nuclear Power Installations: Provides reliable, isolated communication between reactor control systems and safety monitoring networks, meeting stringent reliability requirements.
- Large-Scale Process Automation: Integrates PROCONTROL P14 with third-party PLCs (Siemens, Rockwell) and DCS for unified plant-wide control in cement, steel, and mining.
- Power Distribution & Grid Management: Connects substation control systems to SCADA/EMS for remote monitoring, fault detection, and load balancing.
- Marine & Offshore Platforms: Supports communication between shipboard/ platform control systems and external monitoring stations, withstanding harsh marine environments.
Unique Advantages
- Zero Configuration: Auto-generated address lists and protocol translation minimize setup time, reducing human error and deployment costs.
- Max Signal Integrity: Isolated interfaces and EMC-hardened design ensure reliable data transfer in extreme industrial conditionseero.
- High Scalability: Cascadable architecture supports growth from small to large systems, adapting to evolving plant requirements.
- Proven Reliability: Engineered for mission-critical power and process applications, with a long service life and low maintenance requirements.
- Comprehensive Diagnostics: Onboard LEDs and service interface simplify troubleshooting, reducing downtime and maintenance costs.
