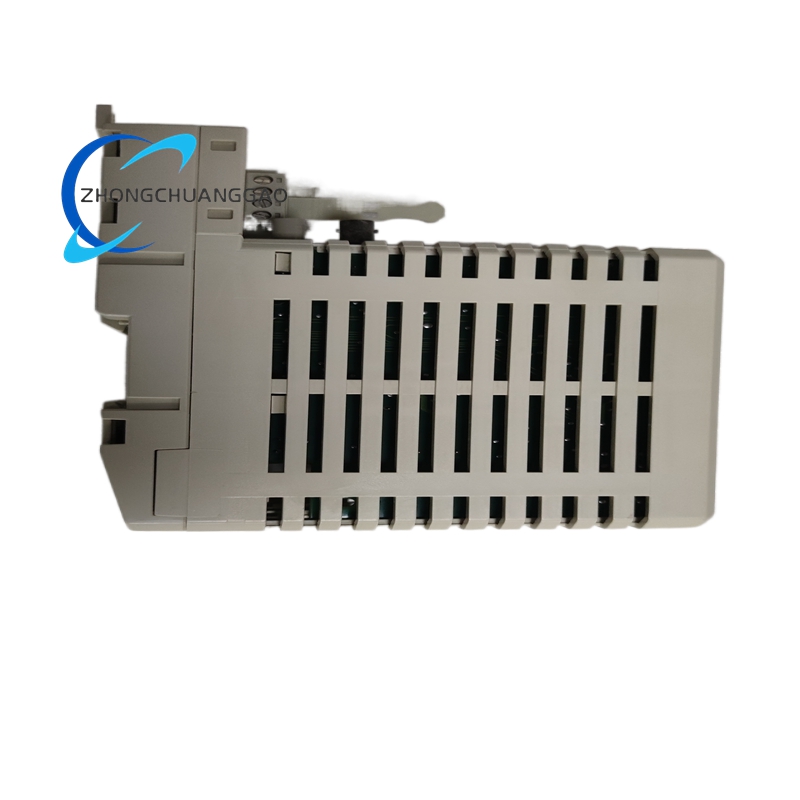

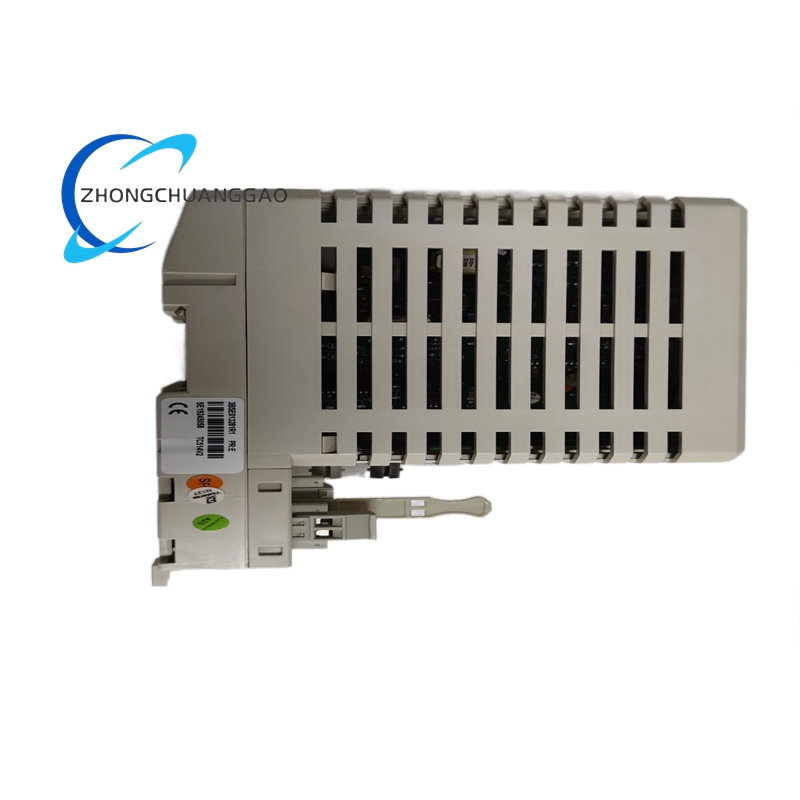

The ABB TC514V2 3BSE013281R1 is a dedicated industrial communication media converter and repeater designed exclusively for the ABB Advant Fieldbus 100 (AF100) network, a core communication protocol for the Advant 800xA and Advant Controller distributed control systems (DCS). This module acts as a critical bridge, converting electrical signals transmitted over twisted-pair copper cables into optical fiber signals and vice versa. It enables reliable, long-distance, and noise-immune data transmission between controllers, remote I/O stations, and field devices in harsh industrial environments. By extending communication reach and isolating electrical interference, the TC514V2 ensures stable operation of large-scale, distributed automation architectures.
Description
Technical Specifications
Core Communication & Electrical Parameters
| Parameter | Specification |
|---|---|
| Product Type | AF100 Twisted Pair to Optical Fiber Repeater / Media Converter |
| Supported Protocol | ABB Advant Fieldbus 100 (AF100) |
| Media Conversion | Twisted-pair copper ↔ Optical fiber (multi-mode/single-mode) |
| Power Supply | 24 V DC (system bus-powered) |
| Power Consumption | Low power draw, typical < 5 W |
| Isolation Voltage | Rated 50 V (galvanic isolation between ports) |
| Transmission Distance | Up to 2 km over twisted pair; up to 15 km over optical fiber (depending on fiber type) |
| Data Rate | Compliant with AF100 standard baud rates |
Physical & Environmental Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 58 mm (Width) × 122 mm (Height) × 168 mm (Depth) |
| Weight | Approx. 0.34 kg |
| Mounting | DIN-rail mountable (standard industrial control cabinet) |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% RH (non-condensing) |
| Vibration Resistance | Compliant with IEC 60068-2-6 industrial standards |
| EMC Compliance | IEC 61000 series (industrial electromagnetic compatibility) |
| Protection Class | IP20 (indoor installation only) |
| Certifications | CE, RoHS compliant (EU Directive 2011/65/EU) |
Interface & Port Specifications
| Parameter | Specification |
|---|---|
| Twisted-Pair Port | 1 × RJ-45 connector (for AF100 twisted-pair bus) |
| Optical Port | 1 × Fiber optic connector (ST/SC type, multi-mode) |
| Status Indicators | LED indicators for Power, Link, Activity, and Fault |
| System Compatibility | ABB Advant 800xA DCS, Advant Controller 160/410/450 series |
Core Functions & Features
1. Reliable Media Conversion & Signal Repeating
- Bidirectional Conversion: Seamlessly converts AF100 electrical signals on twisted pair to optical signals and back, extending network reach beyond copper cable limits.
- Signal Regeneration: Acts as a repeater to clean and amplify degraded signals, ensuring data integrity over long transmission paths.
- Galvanic Isolation: Provides 50 V electrical isolation between copper and fiber ports, eliminating ground loops and protecting sensitive control equipment from electrical surges.
- Noise Immunity: Optical fiber transmission is immune to electromagnetic interference (EMI) and radio frequency interference (RFI), critical in industrial environments with heavy machinery.
2. Industrial-Grade Performance & Reliability
- Wide Temperature Range: Operates stably from -20 °C to +60 °C, suitable for extreme industrial environments.
- Rugged Construction: Compact, robust design withstands vibration and mechanical shocks common in manufacturing and process plants.
- Plug-and-Play Operation: No software configuration required; automatically detects and adapts to AF100 network parameters for instant deployment.
- Status Monitoring: Front-panel LEDs provide real-time visibility into power, link status, data activity, and fault conditions for quick diagnostics.
3. System Integration & Scalability
- Seamless DCS Integration: Fully compatible with ABB Advant 800xA and Advant Controller platforms, preserving full AF100 network functionality.
- Distributed I/O Support: Enables deployment of remote I/O stations at significant distances from the main controller cabinet, reducing cabling costs.
- Network Expansion: Facilitates building large, segmented AF100 networks across extensive plant facilities or multiple sites.
- Redundancy Compatibility: Supports redundant AF100 network configurations, enhancing overall system availability and fault tolerance.
Application Scenarios
- Process Automation (Chemical/Petrochemical): Extends AF100 communication between central control rooms and remote process units, ensuring reliable data transfer in hazardous areas.
- Power Generation & Distribution: Connects turbine control systems, generator I/O, and substation monitoring equipment over long distances in power plants.
- Oil & Gas Facilities: Used in refineries, offshore platforms, and pipeline stations for noise-immune communication between control centers and field instrumentation.
- Manufacturing & Heavy Industry: Integrates remote I/O and machine controllers on large production floors in automotive, steel, and mining operations.
- Water & Wastewater Treatment: Links pump stations, filter systems, and remote monitoring points in distributed water management networks.
- Marine & Offshore: Provides reliable communication between bridge control systems and engine room equipment on vessels and offshore rigs.
- Pharmaceutical & Food Processing: Ensures stable data transmission for precise process control in regulated manufacturing environments.
Unique Advantages
- Zero Configuration: Passive, auto-sensing design eliminates complex setup, reducing installation time and human error.
- Maximum Signal Integrity: Optical isolation and signal regeneration guarantee error-free data transmission in electrically noisy environments.
- Cost-Effective Expansion: Low-cost module enables significant network extension without replacing existing twisted-pair infrastructure.
- Proven Compatibility: Backed by ABB’s quality assurance, ensuring flawless interoperability with the entire Advant 800xA ecosystem.
- Minimal Maintenance: Solid-state design with no moving parts delivers high MTBF and low operational costs.
