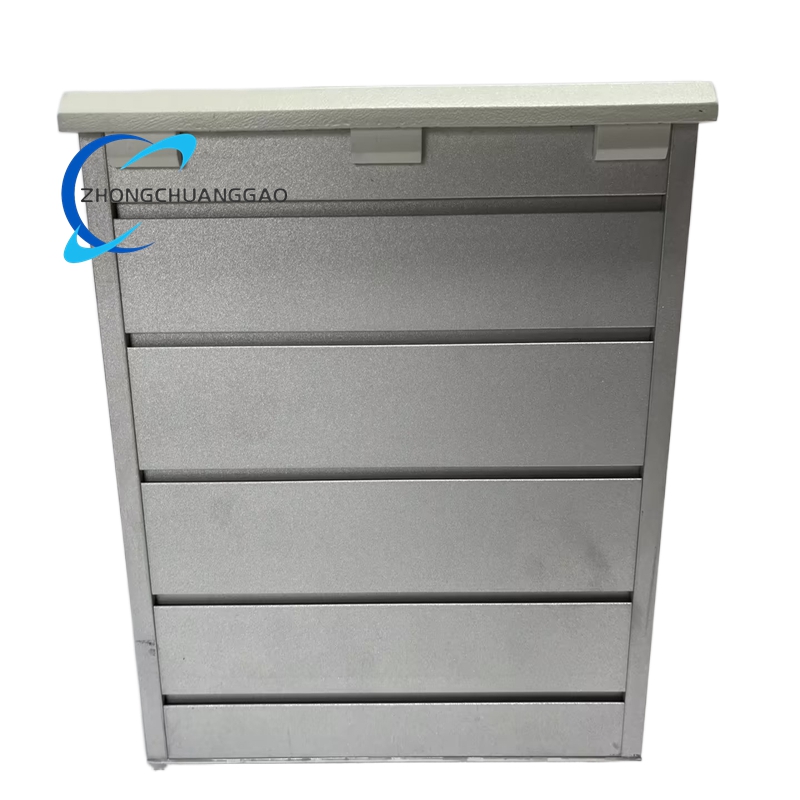

The ABB SYN5202-0277 3BHB006715R0277 is a high-precision, industrial-grade digital automatic synchronizing device belonging to the SYNCHROTACT 5/6 product family. It is engineered to perform safe, reliable, and fully automatic synchronization and paralleling of synchronous generators, power lines, and busbars. Featuring dual independent hardware and software channels, this device ensures maximum operational safety by preventing asynchronous circuit breaker closing, thus eliminating equipment damage and power system instability. It serves as a core control unit for generator grid connection, busbar paralleling, and power source transfer in power generation plants, industrial facilities, and utility substations.
Description
Technical Specifications
Core Synchronization & Electrical Parameters
| Parameter | Specification |
|---|---|
| Synchronization Type | Automatic dual-channel synchronization (generator-grid, line-line, busbar-busbar) |
| Frequency Range | 45 Hz – 65 Hz (supports 50/60 Hz global standards) |
| Voltage Measurement Range | 100 V – 765 kV (via instrument transformers) |
| Synchronization Accuracy | Phase angle deviation ≤ ±0.5°; frequency difference ≤ 0.01 Hz |
| Response Time | Millisecond-level; regulation time ≤ 200 ms (for frequency difference ≤ 1 Hz) |
| Controlled Breakers | Up to 7 independent circuit breakers (7 configurable parameter sets) |
| Power Supply | Multi-voltage support: 24/48 V DC, 100–125 V AC/DC, 220–250 V DC; optional redundant power input |
| Power Consumption | ≤ 8 W (typical operation) |
I/O & Communication Interfaces
| Parameter | Specification |
|---|---|
| Analog Inputs | 8 channels (voltage/frequency measurement) |
| Digital Inputs | 2 channels (synchronization enable, breaker status) |
| Analog Outputs | 4 channels (AVR/govenor control signals) |
| Digital Outputs | 4 channels (breaker close command, alarm, fault) |
| Communication Ports | 1 × 100 Mbps Ethernet (RJ45), 1 × RS-485, optical fiber interface |
| Supported Protocols | Modbus TCP, Profibus DP, IEC 61850-8-1, SPA bus, LON |
Physical & Environmental Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 233 mm × 102 mm × 41 mm (19-inch rack-mountable) |
| Weight | Approx. 1.0–1.2 kg |
| Operating Temperature | -25 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% RH (non-condensing) |
| Vibration Resistance | 10 g acceleration (10–500 Hz) |
| EMC Compliance | IEC 61000; electrostatic discharge: ±15 kV (air), ±8 kV (contact) |
| Protection Class | IP20 (indoor installation) |
| Certifications | CE, IEC 60255 (relay standards) |
Core Functions & Features
1. Dual-Channel Safety Synchronization
- Independent Dual Channels: Two separate hardware/software channels perform parallel synchronization checks; only simultaneous approval triggers breaker closing, eliminating single-point failure risks.
- Multi-Mode Synchronization: Supports automatic generator-grid synchronization, line/busbar paralleling, and dead-bus synchronization (synchrocheck).
- Precise Parameter Control: Monitors and regulates voltage, frequency, and phase angle to meet strict synchronization criteria before issuing close commands.
- 7 Configurable Parameter Sets: Stores independent settings for up to 7 synchronization points, enabling multi-breaker control from one unit.
2. Advanced Control & Regulation
- Automatic Governor/AVR Control: Outputs precise frequency (f+/f-) and voltage (U+/U-) adjustment signals to generator control systems for rapid synchronization.
- Real-Time Measurement: Continuously samples and calculates voltage, frequency, phase angle difference, and slip frequency with high accuracy.
- Synchronization Window: Defines adjustable acceptance windows for phase, frequency, and voltage to ensure safe paralleling under varying conditions.
- Fast Response: Executes synchronization and breaker closing within milliseconds to prevent system instability.
3. Monitoring, Diagnostics & Safety
- Comprehensive Fault Detection: Monitors for over/undervoltage, over/underfrequency, phase loss, and internal faults; triggers alarms and blocks unsafe operations.
- Event Recorder: Logs synchronization events, fault data, and breaker operations for post-event analysis and troubleshooting.
- Self-Diagnosis: Performs continuous internal hardware/software health checks and reports anomalies via indicators and communication ports.
- Visual Status Indicators: Front-panel LEDs for power, run, sync, and fault status for local monitoring.
- Breaker Interlock: Prevents simultaneous closing of multiple breakers and enforces safety interlocks for system protection.
4. Industrial-Grade Reliability & Integration
- Redundant Power Supply: Optional dual power inputs ensure uninterrupted operation during power source failures.
- Modular Design: Compact rack-mount form factor for easy integration into control panels and switchgear assemblies.
- Protocol Compatibility: Seamlessly connects to SCADA, PLCs, and power management systems via standard industrial protocols.
- Long Service Life: Designed for 24/7 continuous operation in harsh industrial and power system environments with minimal maintenance.
Application Scenarios
- Power Generation Plants: Automatic synchronization of thermal, gas, hydro, and combined-cycle generators with the main grid or auxiliary busbars.
- Industrial Cogeneration Facilities: Paralleling on-site generators with utility power for combined heat and power (CHP) systems.
- Utility Substations: Synchronization and paralleling of transmission lines, distribution feeders, and busbar sections.
- Data Centers & Critical Infrastructure: Ensures safe transfer between utility and backup generator power for uninterrupted IT operations.
- Oil & Gas, Petrochemical Plants: Synchronizes emergency generators and maintains stable power for critical process controls.
- Marine & Offshore Platforms: Generator synchronization and busbar management for vessel and offshore power systems.
- Mining & Heavy Industry: Paralleling multiple generator sets to power large motors and continuous production processes.
Unique Advantages
- Unmatched Safety: Dual-channel architecture provides redundant verification, the highest level of protection against asynchronous closing.
- High Precision & Speed: Millisecond-level response and sub-degree phase accuracy ensure smooth, disturbance-free synchronization.
- Multi-Point Control: Manages up to 7 breakers with independent settings, reducing hardware costs and panel space.
- Proven Technology: Part of ABB’s SYNCHROTACT family with decades of global deployment in power systems.
- Easy Integration: Standard communication protocols and compact design simplify retrofitting into existing control systems.
- Comprehensive Diagnostics: Built-in event logging and self-monitoring reduce downtime and simplify maintenance.
