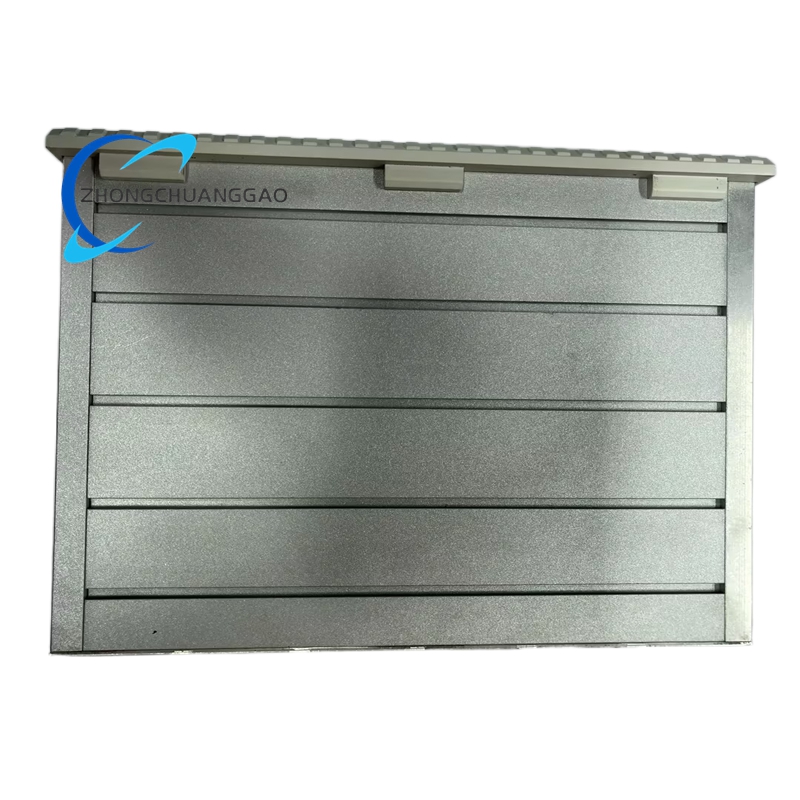

ABB SYN5201A-ZV271 Automatic Single-Channel Synchronization Unit

Description

Technical Specifications

• Product Type: Automatic Single-Channel Synchronization Unit (SYNCHROTACT® 5)
• Model Variant: SYN5201A-Z,V271 (3BHB006714R0271)
• Nominal Frequencies: 50 Hz / 60 Hz (supports 16 2/3 Hz for specialized applications)
• Voltage Input Range: 200 – 690 V AC (nominal)
• Frequency Measurement Range: 45 – 65 Hz
• Input Current Rating: 5 A (nominal)
• Synchronization Accuracy: Phase angle alignment within ±0.5° at the moment of breaker closure
• Time Stamp Resolution: 1 ms for event logging
• Auxiliary Power Supply: 85 – 264 V AC / 100 – 300 V DC (wide range)
• Power Consumption: 20 VA (typical)
• Digital Inputs: 8 configurable digital inputs (24 V DC) for control signals and mode selection
• Digital Outputs: 4 relay outputs (changeover contacts, 250 V AC / 5 A) for close command, synchrocheck, and fault indication
• Communication Interfaces:
  • Profibus DP (for integration with DCS/PLC systems)
  • RS485 (Modbus RTU protocol)
• Data Storage: Non-volatile flash memory for parameter sets and event log (stores up to 1000 events)
• Physical Dimensions: 72 mm (W) × 144 mm (H) × 120 mm (D)
• Net Weight: Approx. 1.0 kg
• Mounting: Standard 19-inch rack-mount or panel-mount (front-panel operation)
• Environmental Ratings:
  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Humidity: 5% – 95% RH (non-condensing)
  • Vibration/Shock: Compliant with IEC 60068 industrial standards
  • EMC Compliance: EN 61000-6-2 / EN 61000-6-4 (industrial immunity and emission)
• Certifications: CE, UL 508, CSA C22.2 No. 14, IEC 60255, RoHS

Key Features

Precise Automatic Synchronization

• Microprocessor-Controlled Algorithm: Real-time calculation of voltage difference, frequency slip, and phase angle to determine optimal breaker closure time.
• Lead Angle Compensation: Automatically calculates and applies a lead angle to account for breaker operating time delay, ensuring perfect phase match at contact closure.
• Synchrocheck Function: Independent monitoring of synchronization conditions; blocks unsafe closing commands at all times.
• Multiple Parameter Sets: Stores up to 7 configurable parameter sets for different operating modes or generator types.

Comprehensive Protection & Safety

• Over/Under Voltage Protection: Monitors and blocks synchronization if voltage deviates beyond configurable thresholds.
• Over/Under Frequency Protection: Prevents paralleling during frequency excursions outside safe operating limits.
• Phase Sequence Check: Validates correct phase rotation between sources to avoid reverse power conditions.
• Black Start Capability: Supports synchronization of isolated generators during system restoration without an external reference source.
• Islanding Protection: Detects and responds to unintentional islanding conditions to maintain system stability.

Advanced Monitoring & Diagnostics

• Real-Time Parameter Display: Front-panel LEDs and digital display show live voltage, frequency, phase angle, and slip values.
• Event Logging: Records all synchronization events, fault codes, and breaker operations with 1 ms time stamping for post-event analysis.
• Built-In Self-Test (BIST): Continuous self-diagnosis of hardware and software; alerts to internal faults via relay outputs and display.
• Fault Code Indication: Provides detailed fault codes (e.g., 072, 073) for rapid troubleshooting of synchronization failures.

Flexible Operation & Integration

• Dual Operation Modes: Supports fully automatic synchronization and manual synchrocheck for operator-controlled paralleling.
• Wide Auxiliary Power Range: Operates on universal AC/DC supply for global deployment.
• Industrial Communication: Seamless integration with Profibus DP and Modbus RTU for remote control and monitoring in SCADA systems.
• Hot-Swappable Design: Allows replacement without complete system shutdown in redundant configurations.

Robust & User-Friendly Design

• Industrial-Grade Construction: Rugged, compact design for reliable operation in harsh industrial and marine environments.
• Front-Panel Operation: Intuitive controls and clear visual indicators for local operation and configuration.
• Easy Configuration: Parameter setup via front-panel keypad or software tools (e.g., ABB SYNCHROTACT® 5 Configuration Tool).
• Long-Term Reliability: Designed for 24/7 continuous operation with minimal maintenance requirements.

Application Scenarios

Power Generation

• Thermal Power Plants: Automatic synchronization of steam/gas turbines with the main grid; ensures stable paralleling during startup and load changes.
• Hydroelectric Power Plants: Synchronization of hydro generators with grid or plant auxiliary systems; supports black start operations.
• Combined Cycle Power Plants: Coordinates synchronization of gas turbines and steam turbines for efficient combined cycle operation.
• Renewable Energy Plants: Synchronization of wind turbine generators and solar inverter systems with the utility grid; maintains grid code compliance.
• Diesel Generator Sets: Automatic paralleling of emergency diesel generators for backup power and load sharing in critical facilities.

Industrial Facilities

• Oil & Gas Refineries: Synchronization of on-site generation with grid or between multiple generator sets; ensures continuous power for critical processes.
• Chemical & Petrochemical Plants: Safe paralleling of captive power plants with utility supply; supports islanded operation during grid outages.
• Manufacturing Plants: Synchronization of large motor drives and captive generators; prevents downtime in automotive, steel, and cement production.
• Data Centers: Automatic synchronization of UPS systems and backup generators; ensures zero downtime for IT equipment.

Marine & Offshore

• Shipboard Power Systems: Synchronization of main and auxiliary generators on cargo vessels, cruise ships, and offshore platforms.
• Offshore Drilling Rigs: Coordinates paralleling of multiple generator sets for dynamic positioning and drilling operations.
• Floating Production Storage and Offloading (FPSO) Vessels: Ensures stable synchronization of power generation systems in harsh marine environments.

Utilities & Grid Infrastructure

• Substation Automation: Synchronization of transmission lines and grid sections; supports grid reconfiguration and restoration after faults.
• Microgrids: Enables seamless connection and disconnection of microgrids to the main grid; supports grid-forming and grid-following modes.
• Distribution Networks: Synchronization of distributed energy resources (DERs) for reliable and stable grid integration.

Specialized Applications

• Mining Operations: Synchronization of large mining equipment and on-site power generation; supports heavy-duty conveyor and crusher systems.
• Water & Wastewater Treatment: Ensures stable power supply for pump stations and treatment processes; synchronizes backup generation.
• Railway Electrification: Synchronization of traction power systems and auxiliary generators for reliable rail operation.
• Legacy System Modernization: Upgrades older synchronization systems with modern SYN5201A-Z,V271 units while preserving existing control architecture.
