Product Description

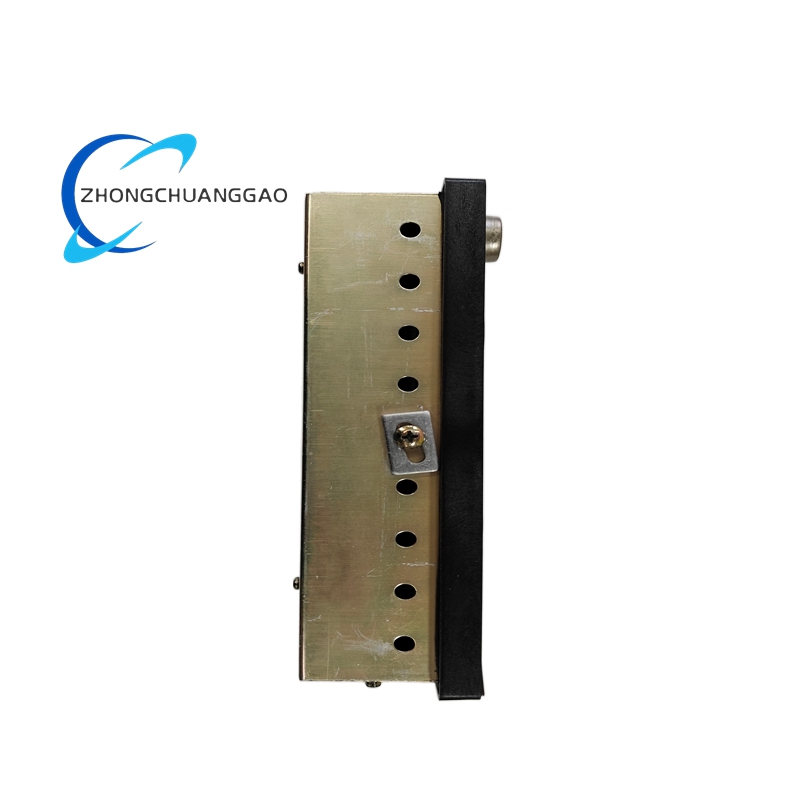

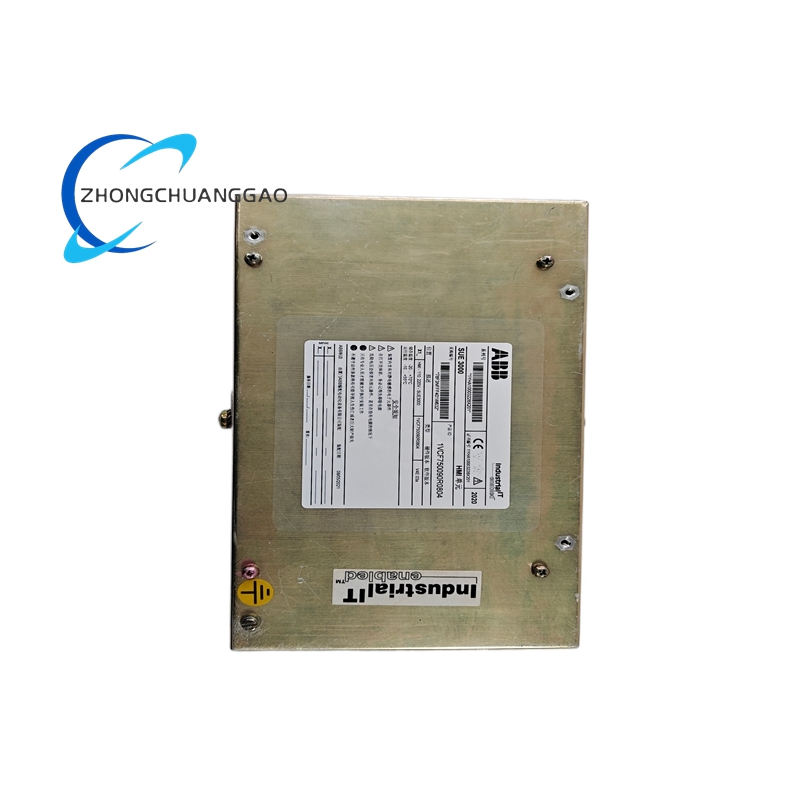

The ABB SUE3000 1VCF750090R0804 is a high-performance, industrial-grade high-speed power transfer device designed for critical power supply applications. It serves as the core control unit for ABB’s SUE3000 High Speed Transfer System (HSTS), enabling automatic, ultra-fast switching between primary and backup power sources to ensure uninterrupted power delivery to mission-critical loads. Engineered with advanced detection logic and magnetic high-speed vacuum circuit breaker integration, it eliminates costly production downtime caused by voltage sags, interruptions, or power source failures. This device is purpose-built for industrial and utility environments requiring zero power disruption, offering superior reliability, fast response times, and seamless integration with existing power protection and distribution systems.
Description
Technical Specifications
Core Transfer & Electrical Parameters
| Parameter | Specification |
|---|---|
| Transfer Type | Automatic high-speed power source transfer (primary → backup) |
| Typical Transfer Time | 30 ms (1/2 cycle) for synchronous inputs; <100 ms total system transfer |
| Response Time | <2 ms (solid-state I/O board) from fault detection to command issuance |
| Rated Voltage (UN) | 100 V – 125 V AC (50/60 Hz) |
| Rated Current (IN) | 1 A or 5 A (CT secondary) |
| Making Current | 70 A (t ≤ 10 ms) |
| Continuous Load Current | 12 A (t ≤ 30 s) |
| Thermal Withstand (Current Path) | 250 IN (peak); 100 IN (dynamic, 1 s); 4 IN (continuous) |
| Voltage Path Rating | 2 UN/√3 (continuous) |
| Power Consumption | ≤30 W (with 2 BIO boards) |
| Inrush Current | ≤10 A peak (200 ms duration) |
Control & Communication Interfaces
| Parameter | Specification |
|---|---|
| Binary I/O | Opto-isolated inputs (1 ms filter); static high-speed outputs |
| Communication Protocols | IEC 61850-8-1, SPA bus, LON, Modbus RTU, IEC 60870-5-103, Profibus DP, Ethernet (RJ45), Web server |
| Optical Interfaces | Multi-mode fiber (ST connectors) for IEC 60870-5-103 and Modbus RTU |
| Control Inputs | 48 – 265 V DC / 110 – 265 V DC (threshold: 35 V DC or 75 V DC) |
| Power Outputs | 2 independent outputs per board (48 – 265 V DC) |
Physical & Environmental Specifications
| Parameter | Specification |
|---|---|
| Mounting | Rack-mountable for control panel installation |
| Operating Temperature | -10 °C to +55 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5 – 95 % RH (non-condensing) |
| Pollution Degree | Degree 2 (IEC 60664-1) |
| Protection Class | IP20 (indoor use) |
| Certifications | CE, IEC 61000 (EMC), IEC 60255 (relay standards) |
Core Functions & Features
1. Ultra-Fast Power Transfer
- Sub-Cycle Switching: Achieves transfer in 30 ms (half-cycle) for synchronous power sources, preventing process interruptions for sensitive electronic loads.
- Multi-Mode Transfer: Supports four configurable transfer modes for 2–3 breaker configurations, adapting to diverse power distribution setups.
- Seamless Failover: Automatically detects primary power faults (undervoltage, overvoltage, phase loss) and initiates transfer to the backup source without operator intervention.
- Synchronization Check: Verifies phase, voltage, and frequency alignment between sources before transfer to avoid transient disturbances.
2. Advanced Monitoring & Diagnostics
- Fault Recorder: Integrated module records analog and binary data (voltage, current, status) for post-event analysis and troubleshooting.
- Real-Time System Supervision: Continuously monitors power source health, breaker status, and internal module health with self-diagnostic functions.
- Watchdog Function: Built-in watchdog ensures device integrity and triggers fail-safe actions in case of internal faults.
- Visual & Remote Status: Front-panel LEDs and remote communication provide real-time status (normal, transfer, fault) for local and centralized monitoring.
3. Industrial-Grade Reliability & Safety
- Galvanic Isolation: Opto-isolated I/O and communication ports eliminate ground loops and protect against electrical noise.
- Coil Monitoring & Decoupling: Integrated safety functions monitor breaker coil health and provide safe decoupling to prevent equipment damage.
- High Surge Immunity: Complies with strict EMC standards (IEC 61000) for operation in electrically harsh industrial environments.
- Long Service Life: Designed for continuous operation with minimal maintenance, supporting 24/7 critical process availability.
4. Flexible System Integration
- Universal Compatibility: Works with all voltage levels and seamlessly integrates with existing protection relays, circuit breakers, and switchgear.
- Protocol Flexibility: Supports all major industrial communication protocols for easy connection to SCADA, PLCs, and power management systems.
- Modular Design: Configurable I/O and communication boards allow customization for specific application requirements.
- Cost-Effective Alternative: Lower investment and operational costs compared to UPS systems, with simpler installation and maintenance.
Application Scenarios
- Power Generation Plants: Ensures uninterrupted power for auxiliary systems in thermal, gas, combined-cycle, and nuclear power plants, including boiler controls, turbine governing, and flue gas purification systems.
- Continuous Industrial Processes: Critical for chemical, petrochemical, and fiber manufacturing plants where power interruptions cause costly material loss and production downtime.
- Oil & Gas Facilities: Protects refineries, offshore platforms, and pipeline pumping stations from power failures that risk safety and environmental incidents.
- Data Centers & Critical Infrastructure: Provides redundant power transfer for IT equipment, ensuring 100% uptime for data processing and storage systems.
- Water & Wastewater Treatment: Maintains power for pumps, valves, and control systems in water treatment plants and distribution networks.
- Manufacturing & Automotive: Safeguards automated assembly lines, robotic systems, and precision manufacturing equipment from voltage disturbances.
- Mining & Metals: Ensures continuous operation of heavy machinery, conveyors, and process control systems in mining and metal production facilities.
Unique Advantages
- Zero Downtime Assurance: Ultra-fast transfer speed eliminates production losses from power interruptions, maximizing plant utilization and revenue.
- Proven Reliability: Over 1,600 systems deployed worldwide, demonstrating ABB’s expertise in high-speed power transfer technology.
- Simplified Integration: Works with existing infrastructure, reducing retrofit costs and implementation time compared to UPS-based solutions.
- Comprehensive Diagnostics: Built-in fault recording and monitoring simplify maintenance and accelerate root-cause analysis.
- Future-Proof Communication: Supports modern digital protocols (IEC 61850) for seamless integration into smart grid and digital substation environments.
