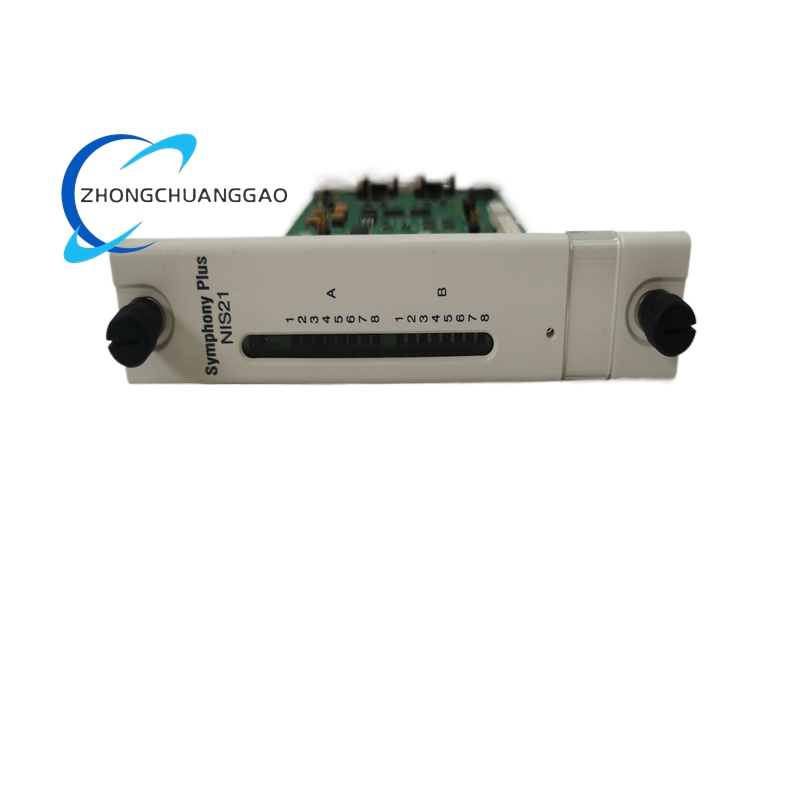

ABB SPNIS21 Network Interface Slave Module (NISM)

Description

Technical Specifications

Core Communication Parameters

Electrical & Power Specifications

Physical & Environmental Specifications

Certifications

• CE Marking
• IEC 61000-4 (EMC standards)
• cULus Listed for industrial control equipment

Core Functions & Features

1. High-Speed Cnet Communication

• Dual Baud Rate Operation: Automatically switches between 10 Mbaud (high-speed) and 2 Mbaud (reliable) modes to optimize performance based on network load and distance.
• Redundant Network Paths: Supports dual-loop Cnet architecture, enabling automatic failover to the backup path in case of a cable break or node failure, ensuring 99.99% system uptime.
• Intelligent Data Routing: Embedded microprocessor manages packet routing, error checking, and data buffering, reducing host controller overhead and ensuring efficient data flow across the network.
• Large Node Support: Accommodates up to 62,500 nodes in a single system, making it suitable for large-scale, geographically distributed DCS installations.

2. Seamless System Integration

• Symphony Plus / INFI 90 Compatibility: Native plug-and-play integration with ABB’s modern Symphony Plus and legacy INFI 90 DCS platforms, preserving investment in existing control infrastructure.
• I/O Expander Bus Interface: Connects directly to I/O subsystems (e.g., IET800 modules) via a dedicated high-speed parallel bus, enabling fast, direct data transfer between field devices and the control network.
• Master-Slave Architecture: Operates as a slave module under the control of a master module (e.g., SPNPM22), facilitating coordinated communication across the entire control system.
• Cross-Platform Connectivity: Integrates with third-party PLCs, SCADA systems, and HMIs via standard industrial Ethernet gateways, enabling unified control and monitoring.

3. Advanced Diagnostics & Reliability

• Real-Time Self-Monitoring: Continuously monitors communication link status, power supply, and module health, with immediate fault detection and alarm generation.
• Error Detection & Correction: Implements cyclic redundancy check (CRC) and parity checking for all data packets, ensuring data integrity and preventing corruption during transmission.
• Status Indicators: Front-panel LEDs provide visual feedback on power, communication activity, fault conditions, and network redundancy status for quick on-site troubleshooting.
• Hot-Swappable Design: Allows module replacement or maintenance without shutting down the entire control system, minimizing process downtime and disruption.
• Non-Volatile Memory: Stores configuration parameters and network settings in non-volatile memory, preserving settings during power cycles and eliminating the need for reconfiguration after restart.

4. Robust Industrial Design

• Vibration Resistance: Industrial-grade PCB construction with reinforced components withstands high-vibration environments common in power plants, manufacturing facilities, and process industries.
• Wide Temperature Tolerance: Operates reliably across a -25 °C to +60 °C temperature range, suitable for both controlled indoor environments and challenging industrial locations.
• Galvanic Isolation: 2500 V RMS isolation protects the control system from ground loops, electrical surges, and noise, ensuring stable communication in electrically noisy industrial settings.
• Compact Chassis Mount: Single-slot design maximizes rack space utilization, allowing for high-density I/O and communication module deployment in control cabinets.

Application Scenarios

• Power Generation: Core communication module for thermal, gas, nuclear, and renewable power plants, enabling real-time control of turbines, boilers, generators, and balance-of-plant systems.
• Oil & Gas Processing: Facilitates communication between distributed control nodes in refineries, pipelines, and offshore platforms, ensuring safe and efficient operation of critical process equipment.
• Chemical & Petrochemical: Provides reliable data exchange for continuous and batch process control, including reactor control, distillation, and material handling systems.
• Water & Wastewater: Integrates control systems for water treatment plants, pumping stations, and distribution networks, enabling remote monitoring and control of valves, pumps, and sensors.
• Metals & Mining: Supports communication in steel mills, aluminum smelters, and mining operations, controlling heavy machinery, material processing, and safety interlock systems.
• Pharmaceutical & Food & Beverage: Ensures compliance with strict regulatory standards by providing secure, reliable communication for process automation, batch tracking, and quality control.
• Manufacturing & Automotive: Enables high-speed communication in automated assembly lines, robotic cells, and material handling systems, supporting just-in-time production and quality assurance.

Unique Advantages

• Legacy-to-Modern Bridge: Seamlessly connects legacy INFI 90 systems with modern Symphony Plus platforms, enabling phased system upgrades without full replacement.
• Unmatched Scalability: Supports up to 62,500 nodes, making it ideal for large-scale, enterprise-wide DCS implementations.
• Redundancy for Critical Operations: Dual-loop Cnet architecture eliminates single points of failure, ensuring uninterrupted operation for safety-critical processes.
• Low Latency Performance: Sub-millisecond data transfer meets the stringent real-time requirements of high-speed process control applications.
• Simplified Maintenance: Hot-swappable design, advanced diagnostics, and visual status indicators reduce maintenance time and improve overall system availability.
