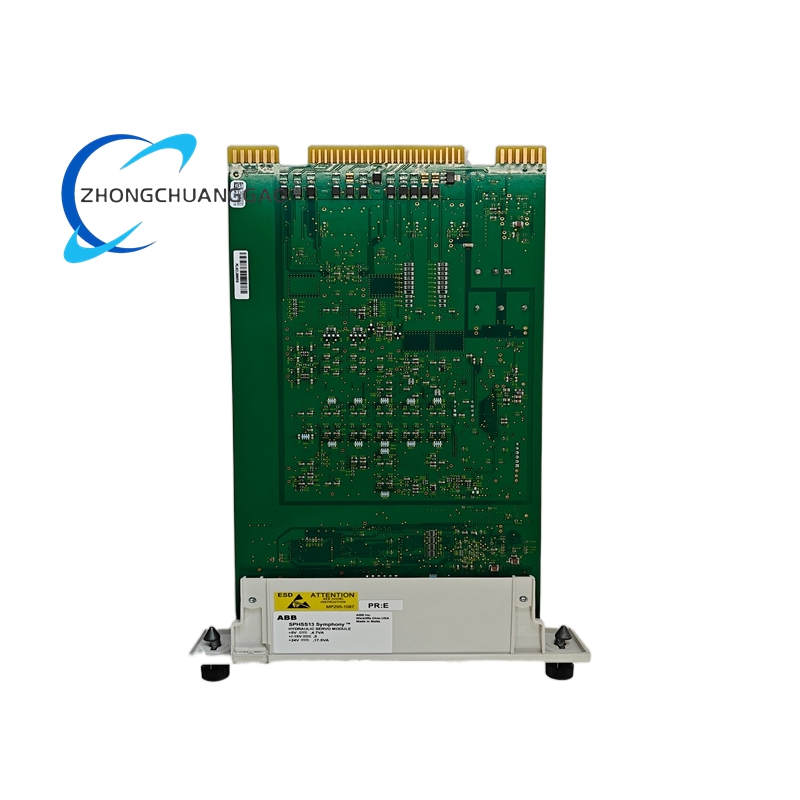

The ABB SPHSS13 is a high-performance, precision hydraulic servo control module designed for critical industrial and power generation applications. It serves as the core control interface between digital control systems and hydraulic actuators, delivering ultra-precise, high-speed regulation of valve positions, turbine governors, and heavy-duty mechanical motion systems. As a key component of ABB’s Bailey Symphony Plus and INFI 90 DCS platforms, it integrates advanced servo control algorithms, redundant hardware, and robust signal conditioning to ensure reliable, stable operation in demanding environments. The module converts low-power control signals into high-precision hydraulic actuation commands, enabling accurate positioning and dynamic control of critical assets in power plants, manufacturing, and heavy industry.
Description
Technical Specifications
Core Electrical & Control Parameters
| Parameter | Specification |
|---|---|
| Rated Supply Voltage | 24 V DC (20.4–28.8 V DC); compatible with 48 V DC systems |
| Power Consumption | 25 W (nominal) |
| Control Modes | Proportional-Integral (PI) control; Pure Proportional (P) control |
| Output Frequency | 50 kHz (high-frequency servo drive capability) |
| Sensor Compatibility | AC/DC Linear Variable Differential Transformers (LVDT); RVDT (Rotary VDT) |
| Redundancy | Dual redundant servo coils (active parallel operation) |
| Control Accuracy | ≤ ±0.1% of full-scale position (LVDT/RVDT input) |
| Response Time | ≤ 5 ms (full-scale position change) |
| Signal Isolation | 2500 V RMS (galvanic isolation between control and power circuits) |
Physical & Environmental Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 297.18 mm (L) × 175.26 mm (W) × 35.56 mm (H) (30.5 × 17.8 × 3.8 cm) |
| Weight | 0.272–0.28 kg (0.6–0.62 lbs) |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Humidity | 5–95 % RH (non-condensing) |
| Protection Class | IP20 (panel/rack mount) |
| Mounting | Standard 19-inch rack mount; DIN rail compatible |
| Certifications | CE, IEC 61000-4 (EMC), ATEX (optional for hazardous areas) |
Interfaces & Connectivity
| Interface | Specification |
|---|---|
| Control Inputs | Analog setpoint (4–20 mA, 0–10 V DC); digital command signals |
| Feedback Inputs | LVDT/RVDT position feedback (AC/DC compatible) |
| Servo Outputs | Dual redundant servo coil drive signals (current-controlled) |
| Status Outputs | 4 × Form C relay outputs (fault, ready, active, redundancy status) |
| Communication | Proprietary Bailey INFI 90/Symphony Plus bus; Modbus RTU (optional) |
| Diagnostics | Front-panel LED indicators; internal fault logging; remote status monitoring |
Core Functions & Features
1. High-Precision Servo Control
- Dual Control Algorithms: Supports PI control for zero static error and stable regulation, and P control for fast, responsive dynamic positioning, adaptable to diverse hydraulic system requirements.
- Redundant Servo Coils: Features dual active servo coils operating in parallel, ensuring continuous operation if one coil fails, eliminating single points of failure for critical applications.
- High-Frequency Drive: 50 kHz output frequency enables precise control of fast-acting hydraulic valves and actuators, supporting sub-5 ms response times for rapid position adjustments.
- Sensor Compatibility: Direct interface with AC and DC LVDT/RVDT sensors, providing accurate, non-contact position feedback for linear and rotary hydraulic actuators.
2. Robust Signal Conditioning & Isolation
- Galvanic Isolation: 2500 V RMS isolation between control electronics and power outputs, protecting the DCS from electrical noise, surges, and ground loops in industrial environments.
- Noise Filtering: Integrated low-pass and high-pass filters eliminate electrical interference from power lines, motors, and nearby equipment, ensuring clean control and feedback signals.
- Signal Linearization: Automatic linearization of non-linear LVDT/RVDT feedback signals, delivering accurate position data across the full actuator stroke.
3. Advanced Diagnostics & Reliability
- Continuous Self-Monitoring: Real-time monitoring of servo coil health, power supply, sensor inputs, and communication links, with immediate fault detection and alarm generation.
- Redundancy Management: Automatic failover between primary and secondary servo coils, with no disruption to control output during a fault; redundancy status is visible locally and remotely.
- Fault Logging: Stores detailed fault records (time, type, severity) for predictive maintenance and post-fault analysis, reducing unplanned downtime.

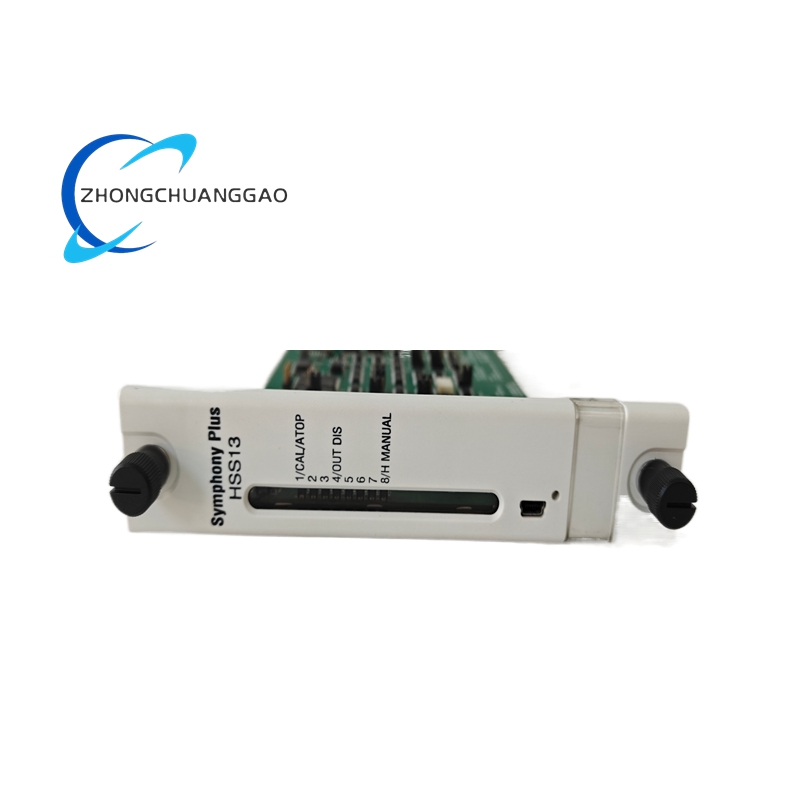

- LED Status Indicators: Front-panel LEDs provide at-a-glance visibility of module status (power, ready, active, fault, redundancy), simplifying on-site troubleshooting.
4. Seamless DCS Integration
- Symphony Plus/INFI 90 Compatibility: Native integration with ABB’s legacy and modern DCS platforms, enabling direct connection to control processors, I/O buses, and HMI systems.
- Open Communication: Optional Modbus RTU interface supports integration with third-party PLCs, SCADA systems, and industrial networks for cross-platform control.
- Hot-Swappable Design: Allows module replacement or maintenance without shutting down the entire control system, minimizing process interruption.
- Configurable Parameters: All control parameters (gain, integral time, setpoint limits, fault thresholds) are configurable via DCS software or local interface, enabling system optimization.
5. Rugged Industrial Design
- Extreme Temperature Operation: Operates reliably from -40 °C to +85 °C, suitable for outdoor installations, power plant turbine halls, and high-temperature industrial environments.
- Compact Form Factor: Low-profile, lightweight design (0.272 kg) fits into standard control cabinets and rack-mounted DCS enclosures, saving valuable panel space.
- Vibration Resistance: Industrial-grade construction with reinforced internal components withstands high-vibration environments common in power generation and heavy machinery.
Application Scenarios
- Steam/Gas Turbine Control: Precision positioning of turbine throttle valves, governor valves, inlet guide vanes, and nozzle control mechanisms in thermal and gas power plants.
- Hydraulic Actuator Systems: Control of heavy-duty hydraulic actuators in steel mills, aluminum smelters, and metal forming machinery for precise motion and force regulation.
- Power Plant Valves: Regulation of boiler feedwater valves, steam control valves, turbine bypass valves, and condenser valves in fossil, nuclear, and renewable power facilities.
- Industrial Manufacturing: High-precision control of hydraulic presses, injection molding machines, robotic assembly lines, and material handling systems.
- Marine & Offshore: Position control of shipboard rudder actuators, offshore platform valve systems, and subsea hydraulic control modules (ATEX-certified versions).
- Water & Wastewater: Regulation of large-scale water treatment valves, dam gates, and pump control systems in municipal and industrial water infrastructure.
- Mining & Heavy Equipment: Control of hydraulic systems in mining shovels, conveyor drives, and mineral processing machinery for reliable operation in harsh conditions.
Unique Advantages
- Unmatched Precision: Delivers sub-0.1% position accuracy and 5 ms response time, meeting the most demanding control requirements for critical power and industrial assets.
- Redundancy for Critical Operations: Dual servo coil design ensures 100% uptime for safety-critical applications, eliminating costly shutdowns due to component failure.
- Legacy & Modern Compatibility: Seamlessly integrates with both ABB’s legacy INFI 90 and modern Symphony Plus DCS platforms, ideal for system upgrades and retrofits.
- Extreme Environment Durability: Operates reliably across a -40 °C to +85 °C temperature range, with robust EMC protection for industrial noise immunity.
- Simplified Maintenance: Advanced diagnostics, hot-swappable design, and clear status indicators reduce maintenance time and improve overall system availability.
