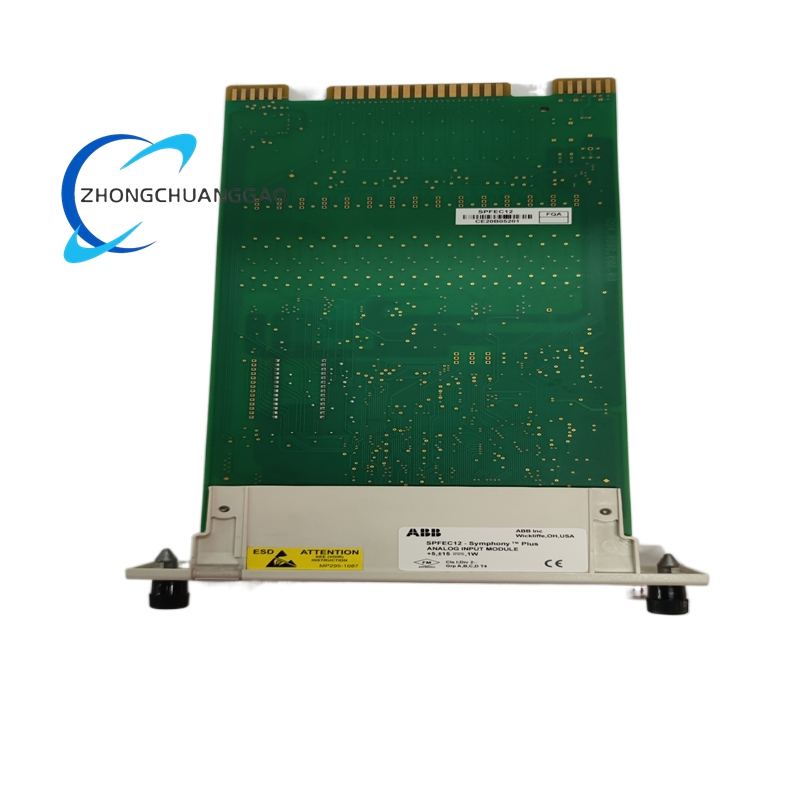

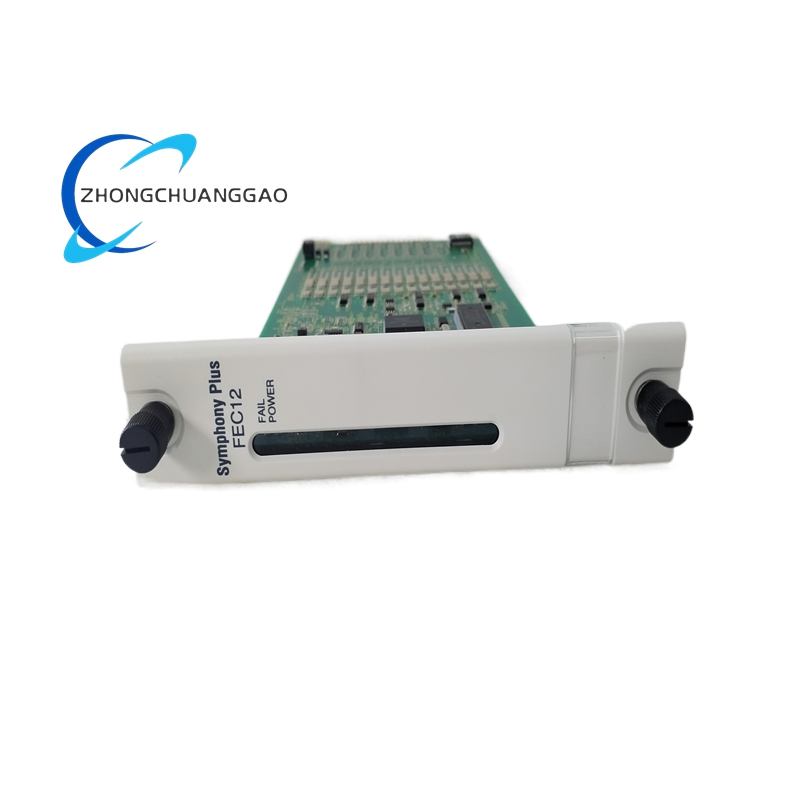

ABB SPFEC12 Symphony Plus Analog Input Slave Module

Description

Technical Specifications

• Product Type: Analog Input (AI) Slave Module
• System Compatibility: ABB Symphony Plus, Symphony, Bailey INFI 90 DCS
• Input Channels: 15 independent, configurable analog input channels (single-ended/differential)ABB
• Supported Signal Types:
  • Current: 4–20 mA (two-wire/three-wire)ABB
  • Voltage: 1–5 V DCABB
• Resolution: 16-bit Analog-to-Digital Converter (ADC)ABB
• Accuracy: ±0.1% of full-scale (FS) for all input rangesABB
• Conversion Time: Fast signal conversion (≤ 2.5 ms per channel)
• Isolation: Full galvanic isolation between channels and system bus (1500 V AC); per-channel overvoltage/overcurrent protectionABB
• Bus Interface: Direct connection to INFI 90/Symphony Plus I/O backplane (HN800/FBP)
• Power Supply:
  • Logic Power: +5 V DC ±5%
  • Field Power: +24 V DC (20.4–28.8 V DC)
• Power Consumption: Typical 4 W, maximum 5 W
• Physical Dimensions: 358 mm (H) × 267 mm (W) × 74 mm (D)ABB
• Net Weight: Approx. 4.5 kgABB
• Mounting: Standard 19-inch rack-mount (Harmony Rack compatible)ABB
• Environmental Ratings:
  • Operating Temperature: -20°C to +60°CABB
  • Humidity: 5%–95% RH (non-condensing)ABB
  • Vibration/Shock: Compliant with IEC 60068 industrial standardsABB
  • EMC Compliance: Industrial-grade electromagnetic interference shieldingABB
• Certifications: CE, UL, IEC 61010 safety compliance, RoHS
• Alternate Part Numbers: IMFEC12, YSPFEC12, RSPFEC12ABB

Key Features

High-Density, Flexible Signal Input

• 15-Channel Design: Maximizes analog signal acquisition capacity in a single module, reducing cabinet space and simplifying system wiringABB.
• Configurable Input Mode: Supports both single-ended and differential input configurations to adapt to various sensor types and noise environmentsABB.
• Universal Signal Compatibility: Accepts standard 4–20 mA current and 1–5 V DC voltage signals, the most common outputs for industrial process sensorsABB.

Superior Signal Integrity & Accuracy

• 16-Bit High Resolution: Delivers precise digital conversion of analog signals, enabling fine-grained process parameter monitoringABB.
• Industrial-Grade Isolation: Galvanic isolation eliminates ground loops and cross-channel interference, ensuring signal purity in electrically noisy environmentsABB.
• Built-In Signal Filtering: Onboard filtering suppresses electrical noise, providing stable and reliable data to the control systemABB.

Seamless System Integration

• Full Backward Compatibility: Direct replacement for legacy IMFEC12 modules, preserving existing wiring, configurations, and system investmentsABB.
• High-Speed Communication: Connects directly to the system backplane for real-time data transfer to the DCS controller.
• Hot-Swappable Design: Allows installation, removal, or replacement without system shutdown, minimizing downtime during maintenance.

Advanced Diagnostics & Reliability

• Continuous Self-Monitoring: Onboard diagnostics track channel health, signal validity, and power supply status, providing real-time fault detectionABB.
• LED Status Indicators: Visual feedback for power, communication, and channel faults for quick on-site troubleshootingABB.
• Robust Construction: Rugged design with industrial-grade components ensures 24/7 operation in harsh process environmentsABB.

Easy Configuration & Maintenance

• Software Configuration: Full parameterization, calibration, and channel setup via ABB’s Control Builder M engineering tool.
• Standardized Mounting: Fits standard 19-inch industrial racks for flexible installation optionsABB.
• Long-Term Stability: Designed for minimal drift and extended calibration intervals, reducing maintenance requirementsABB.

Application Scenarios

Oil & Gas Industry

• Refinery Process Control: Monitoring temperature, pressure, flow, and level in distillation columns, catalytic crackers, and hydrotreatersABB.
• Offshore Production: Acquiring signals from pressure transmitters, level sensors, and flow meters on drilling rigs and production platformsABB.
• Pipeline Operations: Analog input for flow meters, pressure transmitters, and leak detection sensors in long-distance transmission networksABB.

Power Generation

• Thermal Power Plants: Monitoring boiler drum level, steam pressure, turbine bearing temperature, and flue gas emissionsABB.
• Hydroelectric Facilities: Acquiring water level, flow rate, and turbine vibration signals for dam and powerhouse controlABB.
• Renewable Energy: Monitoring inverter output, solar irradiance, and wind speed for grid integration controlABB.

Chemical & Pharmaceutical Manufacturing

• Continuous Process Plants: Precise monitoring of reactor temperature, pressure, pH, and feedstock flow ratesABB.
• Batch Processing: Analog input for tank level, temperature, and pressure sensors in pharmaceutical synthesis and chemical blendingABB.
• Hazardous Area Applications: Isolated signal acquisition for processes involving flammable, toxic, or corrosive materialsABB.

Water & Wastewater Treatment

• Municipal Water Plants: Monitoring water flow, pressure, pH, turbidity, and chemical dosing ratesABB.
• Wastewater Facilities: Acquiring signals from dissolved oxygen sensors, sludge level transmitters, and effluent quality analyzersABB.
• Desalination Plants: Monitoring pressure, flow, and salinity in reverse osmosis and multi-stage flash distillation processesABB.

Metals & Mining

• Steel Mills: Analog input for furnace temperature, molten metal level, and rolling mill pressure sensorsABB.
• Mineral Processing: Monitoring slurry density, flow rate, and flotation cell level in ore concentration plantsABB.
• Aluminum Smelting: Acquiring cell voltage, current, and temperature signals for electrolytic process controlABB.

Pulp & Paper Industry

• Paper Machine Control: Monitoring stock consistency, dryer temperature, and press load for quality controlABB.
• Pulp Digestion: Regulating and monitoring cooking temperature, pressure, and chemical concentrationABB.
• Recovery Boilers: Controlling and monitoring steam pressure, temperature, and black liquor flowABB.

General Industrial Automation

• Food & Beverage: Monitoring pasteurization temperature, filling level, and packaging line pressureABB.
• Automotive Manufacturing: Acquiring signals from weld current monitors, paint booth pressure sensors, and assembly line torque transducersABB.
• Legacy System Modernization: Upgrading INFI 90 DCS installations with modern SPFEC12 modules while preserving existing infrastructureABB.
