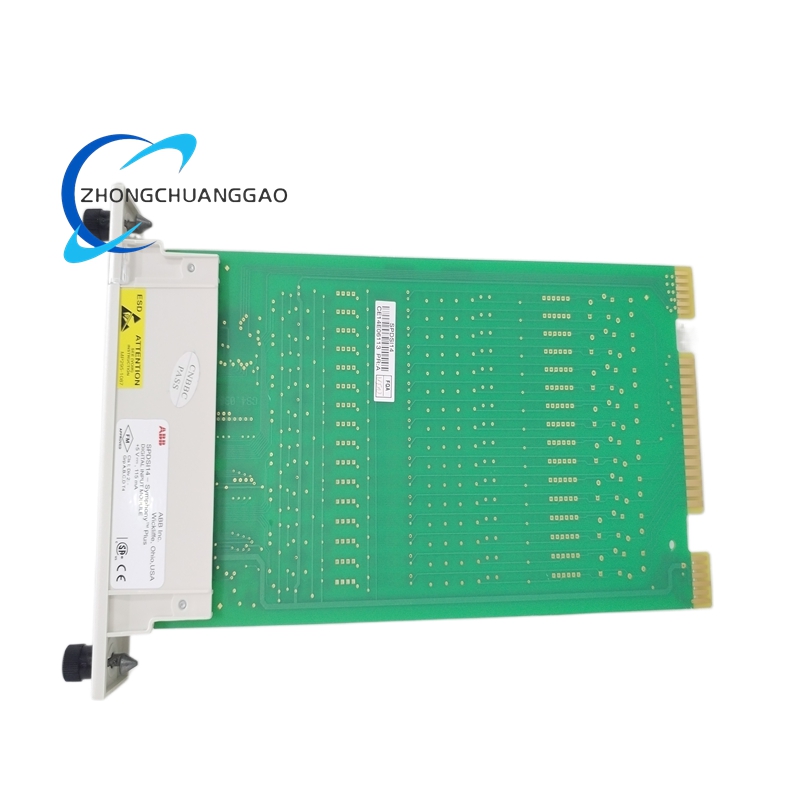

ABB SPDSI14 Symphony Plus Digital Input Slave Module

Description

Technical Specifications

• Product Type: Digital Input (DI) Slave Module
• System Compatibility: ABB Symphony Plus, Symphony, Bailey Infi 90 DCS; compatible with HR Series controllers (BRC300/400/410)
• Number of Channels: 16 independent, galvanically isolated digital input channels
• Input Voltage Rating: 48 VDC nominal; wide operating range 24–60 VDC
• Input Type: Sink/source configurable; supports resistive and capacitive sensing
• Isolation Voltage: 1500 V AC (channel-to-channel and channel-to-system bus)
• Response Time: < 1 ms per channel; fast signal detection for critical interlocks
• Input Current: 5–20 mA per channel (typical)
• Bus Interface: Direct connection to HN800 I/O network; FBP bus compatible
• Power Supply:
  • Logic Power: +5 V DC ±5%
  • Field Power: +24 V DC (20.4–28.8 V DC)
• Power Consumption: Typical 4 W; maximum 5 W
• Physical Dimensions: 73.66 mm (D) × 358.14 mm (H) × 266.7 mm (W)
• Net Weight: Approx. 0.8 kg
• Mounting: Standard 19-inch rack mount; compatible with Harmony Rack (HR) systems
• Environmental Ratings:
  • Operating Temperature: -20°C to +60°C
  • Humidity: 5%–95% RH (non-condensing)
  • Vibration/Shock: Compliant with IEC 60068 industrial standards
  • Corrosion Resistance: G3 coating for harsh industrial environments
• Protection & Certifications:
  • Overvoltage and reverse polarity protection per channel
  • IP20 front-panel protection
  • Compliance with IEC 61010, CE, and UL safety standards
  • RoHS and WEEE environmental compliance
• Alternate Part Numbers: IMDSI14, YSPDSI14, RSPDSI14, PIMDSI14

Key Features

High-Density Isolated Inputs

• 16 Independent Channels: Maximizes signal acquisition capacity in a single module, reducing cabinet footprint and wiring complexity.
• Full Galvanic Isolation: Eliminates ground loops and electrical interference, ensuring signal integrity in electrically noisy industrial environments.
• Wide Voltage Compatibility: Supports 24–60 VDC inputs, accommodating diverse field device power configurations.

Fast, Reliable Signal Acquisition

• Microsecond Response Time: Delivers near-instantaneous signal detection, critical for safety interlocks and fast process control.
• Configurable Sink/Source Operation: Adapts to both NPN and PNP field devices without external wiring modifications.
• Resistive/Capacitive Sensing: Compatible with standard mechanical switches and modern solid-state sensors.

Seamless DCS Integration

• Legacy & Modern System Support: Direct replacement for IMDSI14, preserving existing Infi 90 wiring and configurations.
• High-Speed Bus Communication: Connects directly to Symphony Plus HN800 I/O network for real-time data transfer.
• Hot-Swappable Design: Enables module replacement without system shutdown, minimizing process downtime during maintenance.

Advanced Diagnostics & Monitoring

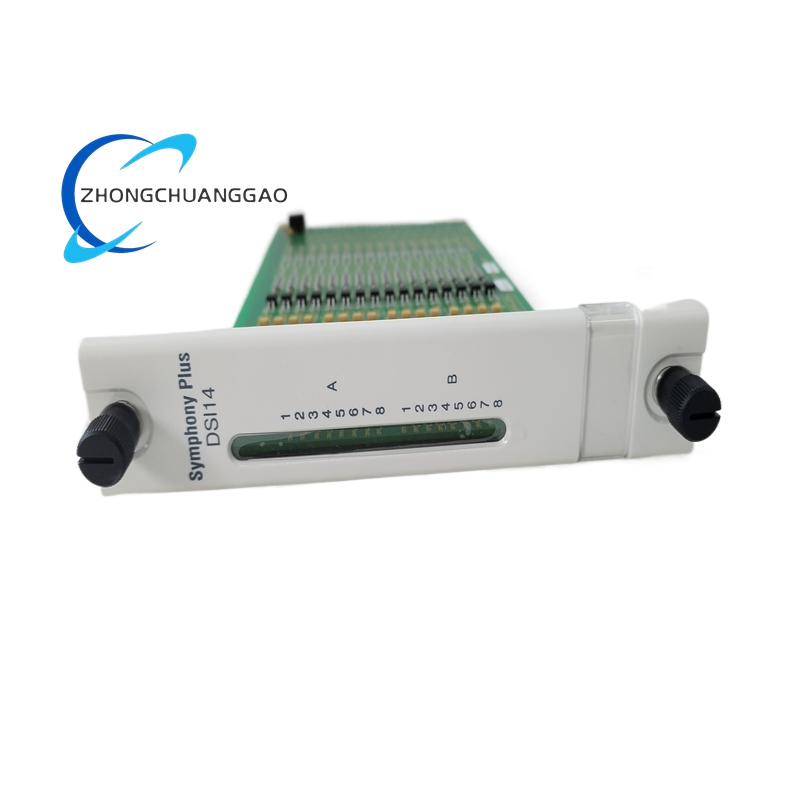

• Per-Channel LED Indicators: Visual status lights for each input channel, enabling quick on-site troubleshooting.
• Continuous Self-Monitoring: Onboard diagnostics detect open circuits, short circuits, and out-of-range voltage conditions.
• System Health Reporting: Transmits real-time fault data to the DCS controller for centralized alarm management.

Industrial-Grade Durability

• G3 Coating: Protects circuitry from corrosive gases and contaminants in harsh process environments.
• Wide Temperature Range: Operates reliably in extreme industrial temperature conditions.
• Shock/Vibration Resistance: Built to withstand mechanical stress common in heavy industrial settings.

Application Scenarios

Oil & Gas Industry

• Refinery Process Monitoring: Acquiring valve position feedback, pump run status, and safety interlock signals in distillation and cracking units.
• Offshore Platforms: Monitoring emergency shutdown (ESD) switches, fire/gas detection alarms, and pipeline valve status in marine environments.
• Pipeline Operations: Collecting signals from pressure switches, flow alarms, and block valve positions in long-distance transmission networks.

Power Generation

• Thermal Power Plants: Monitoring boiler safety valves, turbine trip signals, and auxiliary equipment (fans, pumps) status.
• Hydroelectric Facilities: Acquiring gate position switches, water level alarms, and turbine protection interlocks.
• Renewable Energy: Collecting wind turbine vibration alarms, solar inverter status, and grid interlock signals.

Chemical & Pharmaceutical Manufacturing

• Continuous Process Plants: Monitoring reactor pressure switches, safety relief valve status, and material transfer interlocks.
• Batch Processing: Acquiring tank level alarms, valve limit switches, and clean-in-place (CIP) system status.
• Hazardous Area Applications: Isolated signal acquisition for processes involving flammable or toxic materials.

Water & Wastewater Treatment

• Municipal Water Plants: Collecting filter valve position, pump run status, and chemical dosing system interlocks.
• Wastewater Facilities: Monitoring aeration basin level switches, sludge pump alarms, and UV disinfection system status.
• Desalination Plants: Acquiring pressure switch signals and membrane system interlocks in reverse osmosis processes.

Metals & Mining

• Steel Mills: Monitoring rolling mill limit switches, furnace safety interlocks, and conveyor system status.
• Mineral Processing: Collecting flotation cell level alarms, slurry pump run signals, and crusher interlocks.
• Aluminum Smelting: Acquiring potroom safety switches, raw material feed status, and electrolytic cell protection signals.

Pulp & Paper Industry

• Paper Machine Control: Monitoring dryer section safety interlocks, press roll position switches, and stock tank level alarms.
• Pulp Digestion: Acquiring cooking vessel pressure switches and chemical feed system status.
• Recovery Boilers: Collecting steam pressure alarms and fuel feed system interlocks.

General Industrial Automation

• Manufacturing Assembly Lines: Monitoring part presence sensors, safety door interlocks, and emergency stop buttons.
• Food & Beverage: Acquiring filling machine level switches, pasteurization temperature alarms, and packaging line status.
• Material Handling: Collecting conveyor position sensors, warehouse crane limit switches, and automated storage system interlocks.
