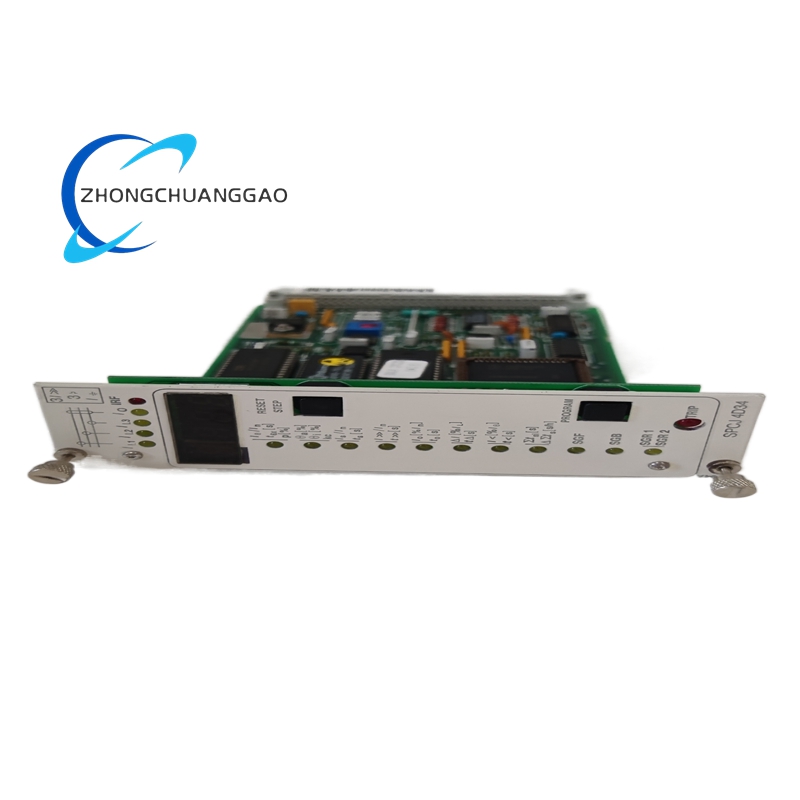

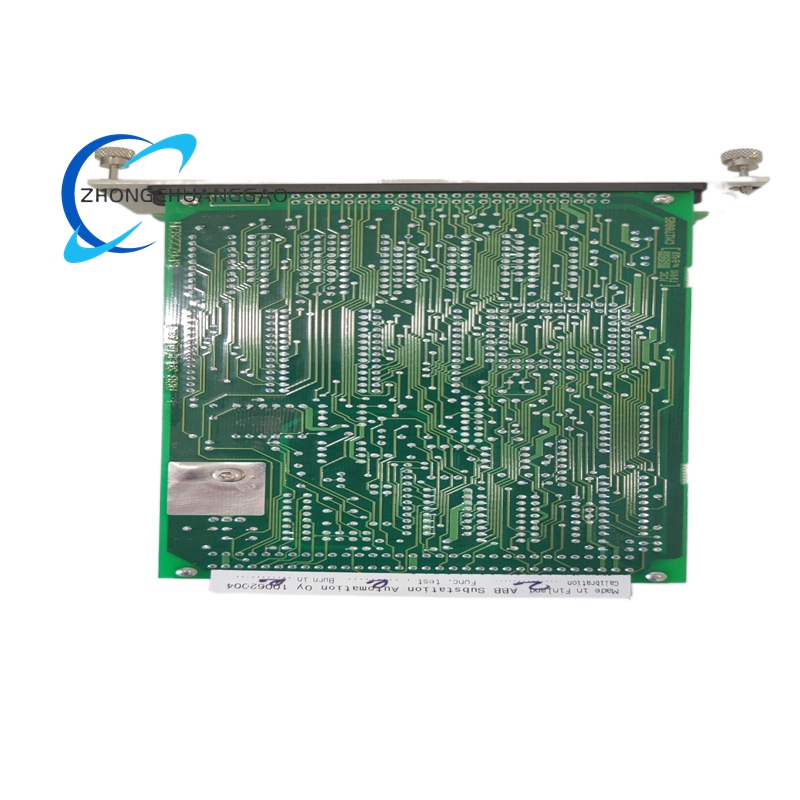

The ABB SPCJ4D34-AA is a microprocessor-based numerical protection relay module engineered for medium-voltage power systems and industrial distribution networks. It integrates comprehensive overcurrent and earth-fault protection functions into a single, compact unit, delivering reliable, high-speed fault detection and circuit breaker tripping for critical electrical assets. As part of ABB’s legacy D-type relay family, it features robust local control, front-panel programming, and integrated diagnostics, making it ideal for substation automation, generator protection, and industrial plant distribution systems. The module supports both definite and inverse time-current characteristics, enabling tailored protection strategies to match diverse application requirements, from small-scale industrial feeders to large utility networks.
Description
Technical Specifications
Core Protection Parameters
| Parameter | Specification |
|---|---|
| Rated Auxiliary Supply | 80–265 V AC, 50/60 Hz; 18–80 V DC |
| Overcurrent (I>) – Low Set | Setting Range: 0.5–5.0 × In (definite time); 0.5–2.5 × In (inverse time)
Time Delay: 0.05–300 s (definite); 0.05–1.00 × time multiplier (inverse) |
| Overcurrent (I>>) – High Set | Setting Range: 0.5–40.0 × In (infinite selectable)
Time Delay: 0.04–300 s |
| Earth-Fault (I0>) – Low Set | Setting Range: 1.0–25.0 % In
Time Delay: 0.05–300 s |
| Earth-Fault (I0>>) – High Set | Setting Range: 2.0–200.0 % In (infinite selectable)
Time Delay: 0.05–300 s |
| Measurement Accuracy | ≤ ±1.0 % of rated value (current); ≤ ±2.0 % of rated value (residual current) |
| Response Time | ≤ 20 ms (high-set stage); ≤ 300 ms (low-set stage, inverse time) |
Communication & Interfaces
| Interface | Specification |
|---|---|
| Serial Communication | SPA Bus (4800/9600 baud); RS-485 (Modbus RTU, DNP3) |
| Local Control | Front-panel pushbuttons (PROGRAM, STEP, RESET) |
| Output Signals | 2 × Form A relay outputs (tripping: TS2; auxiliary: SS1/SS3)
1 × Form C relay output (alarm/self-supervision: IRF) |
| Input Signals | 3 × Binary inputs (blocking: BS; remote setting switch) |
| Data Display | 4-digit LED display (measured values, settings, fault codes) |
Mechanical & Environmental
| Parameter | Specification |
|---|---|
| Form Factor | Standard 19-inch rack-mount or switchgear plug-in module |
| Dimensions | 174 mm (W) × 180 mm (H) × 138 mm (D) |
| Weight | 1.8 kg (net) |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95 % RH (non-condensing) |
| Certifications | CE, IEC 60255, IEC 61000-4 (EMC) |
| Protection Class | IP20 (front panel) |
Core Functions & Features
1. Multi-Stage Overcurrent Protection
- Dual Overcurrent Stages: Independent low-set (I>) and high-set (I>>) stages for comprehensive fault coverage. The low-set stage supports 6 inverse-time characteristics (4 BS 142 standard, 2 special types) plus definite time, while the high-set stage provides instantaneous or definite-time tripping for severe faults.
- Inrush Current Mitigation: Automatic setting doubling for the high-set stage (I>>) during motor start-up or transformer energization, preventing nuisance tripping from inrush currents.
- Two-Stage Load Shedding: Operates as two independent stages at lower setpoints for selective load shedding in distribution networks.
2. Non-Directional Earth-Fault Protection
- Dual Residual Current Stages: Low-set (I0>) and high-set (I0>>) stages for sensitive earth-fault detection, critical for unearthed or resistance-earthed systems.
- Harmonic Filtering: Integrated low-pass filter reduces third and higher-order harmonics in residual current measurements, ensuring accuracy under distorted grid conditions.
- Inrush Inhibition: Automatic blocking of the high-set earth-fault stage (I0>>) during low-set overcurrent (I>) start-up, avoiding false trips from transformer inrush or CT saturation.
3. Advanced System Integration
- Circuit Breaker Failure Protection (CBFP): Monitors circuit breaker performance; if a fault is not cleared within the set delay, it initiates a backup trip signal, ensuring system safety.
- Remote Settings & Monitoring: Supports remote parameter configuration and event logging via SPA Bus or RS-485, enabling integration with SCADA and substation automation systems.
- Dual Setting Banks: Main and alternative setting groups for rapid mode switching (e.g., normal/maintenance), controlled locally or remotely.
4. Robust Self-Supervision & Diagnostics
- Continuous Self-Testing: Real-time monitoring of hardware (ROM, RAM, EEPROM, A/D converters) and software integrity.
- Fault Coding & Alarming: Displays unique fault codes (e.g., memory errors, output relay faults) on the front panel; triggers the IRF alarm relay for permanent faults.
- Event Logging: Records fault events (time, type, affected phase) for post-fault analysis and compliance reporting.
- Latching Trips: Maintains tripping signals until manual reset, ensuring clear fault indication and traceability.
5. Flexible Local Control & Programming
- Front-Panel Interface: Intuitive pushbuttons for menu navigation, parameter adjustment, and fault reset; 4-digit LED display shows real-time measurements and settings.
- Programmable Switchgroups: SGF, SGB, and SGR switchgroups for customizing protection logic (e.g., characteristic selection, blocking, output mapping).
- Manual/Automatic Reset: Starting indications auto-reset after fault clearance; tripping indications require manual reset via RESET/PROGRAM buttons.
Application Scenarios
- Medium-Voltage Substations: Protection of feeders, transformers, and busbars in utility and industrial substations.
- Power Generation: Generator step-up transformers, auxiliary busbars, and motor control centers (MCCs) in thermal, hydro, and renewable power plants.
- Industrial Distribution: Critical industrial processes (oil & gas, chemicals, mining, manufacturing) requiring selective overcurrent and earth-fault protection.
- Transmission & Distribution Networks: Overhead lines, underground cables, and ring main units (RMUs) in distribution grids.
- Renewable Energy Integration: Wind and solar farm collector systems, protecting inverters, transformers, and grid connection points.
- Marine & Offshore: Shipboard power systems, offshore platforms, and drilling rigs (harsh environment compliance).
Unique Advantages
- Comprehensive Protection: All-in-one overcurrent and earth-fault coverage eliminates the need for separate relays, reducing cabinet space and wiring costs.
- Tailored Protection Strategies: Definite/inverse time options and inrush mitigation ensure optimal protection for diverse assets (motors, transformers, feeders).
- High Reliability: Industrial-grade design with continuous self-supervision and fault diagnostics minimizes downtime and maintenance.
- Legacy Compatibility: Seamlessly integrates with existing ABB SPA Bus systems, ideal for retrofits and upgrades of legacy substations.
- Global Compliance: Meets international standards (IEC, CE) for safety, EMC, and performance, suitable for worldwide applications.
