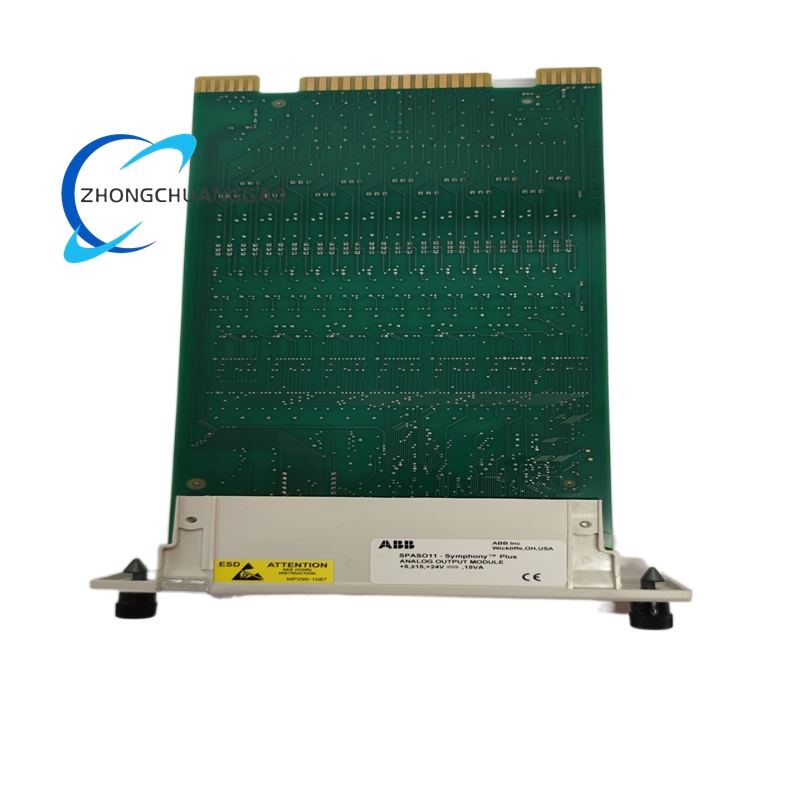

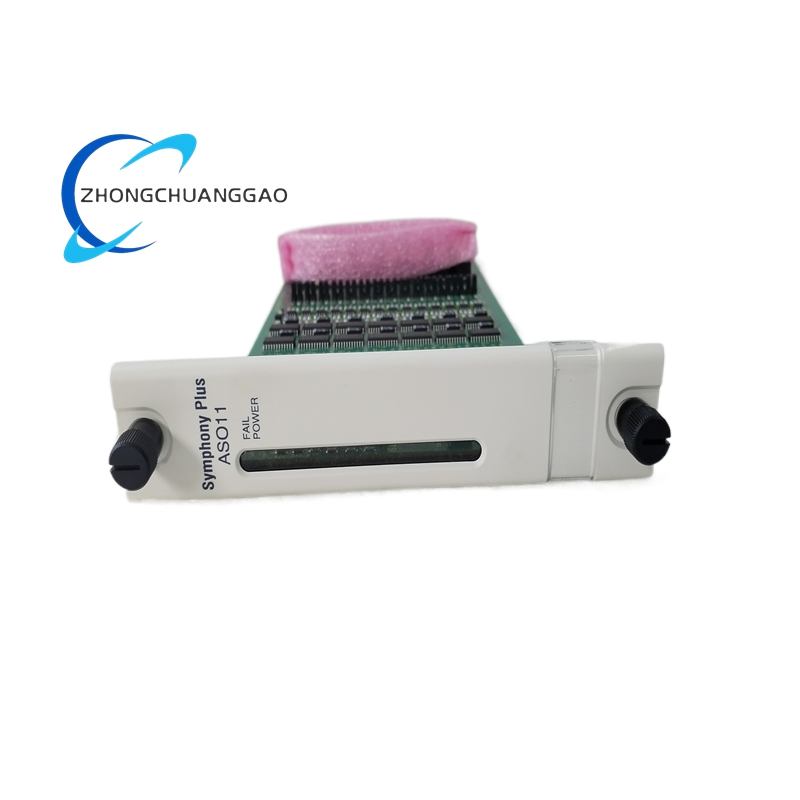

ABB SPASO11 Symphony Plus Analog Output Slave Module

Description

Technical Specifications

• Product Type: Analog Output Slave Module
• Series Compatibility: ABB Symphony Plus (Bailey Infi 90) DCS, compatible with ABB 800xA systems
• Number of Channels: 14 independent, galvanically isolated analog output channels
• Output Signal Ranges:
  • Current: 4–20 mA (standard industrial loop)
  • Voltage: 1–5 V DC
• D/A Resolution: 12 bits (16 bits optional in advanced configurations)
• Accuracy: ±0.1% of full-scale (FS) for voltage; ±0.25% FS for current
• Response Time: < 10 ms per channel update
• Isolation Voltage: 1500 V AC (channel-to-channel and channel-to-system)
• Load Capability:
  • Current mode: Up to 750 Ω load resistance
  • Voltage mode: Minimum 22 kΩ load resistance
• Power Supply:
  • Logic: +5 V DC ±5%
  • Field: +24 V DC (20.4–28.8 V DC)
  • Auxiliary: ±15 V DC ±5%
• Power Consumption: Typical 8 W (max 10 W)
• Operating Environment:
  • Temperature: -20°C to +60°C
  • Humidity: 5%–95% RH (non-condensing)
  • Vibration/Shock: Compliant with IEC 60068 industrial standards
• Physical Dimensions: Compact rack-mount form factor (approx. 73.66 mm D × 358.14 mm H × 271.78 mm W)
• Weight: Approx. 0.3 kg (net)
• Protection & Certifications:
  • Short-circuit and overcurrent protection for each output channel
  • IP20 front-panel protection
  • Compliance with IEC 61010, CE, and UL industrial safety standards
  • RoHS and WEEE environmental compliance

Key Features

High-Density, Isolated Analog Output

• 14 Independent Channels: Maximizes control capacity in a single module, reducing cabinet space requirements and wiring complexity.
• Full Galvanic Isolation: Eliminates ground loops and electrical interference, ensuring signal integrity in noisy industrial environments.
• Dual Signal Support: Each channel is software-configurable for 4–20 mA current or 1–5 V voltage output, matching diverse field device requirements.

Precision Control & Fast Response

• High-Resolution Conversion: Delivers fine control granularity for critical process variables such as flow, pressure, and temperature.
• High Accuracy: Maintains tight control tolerances, supporting stable and efficient process operation.
• Rapid Update Rate: Ensures timely response to control commands, critical for dynamic process regulation.

Seamless DCS Integration

• Symphony Plus Compatibility: Plugs directly into Symphony Plus/Infi 90 backplanes, communicating via the system’s high-speed internal bus.
• 800xA Interoperability: Integrates smoothly with ABB’s 800xA extended automation system for unified plant control.
• Remote Configuration: Full parameterization, calibration, and diagnostics via ABB’s system engineering tools (e.g., Control Builder M).

Robust Diagnostics & Reliability

• Channel Status Monitoring: Onboard diagnostics detect open circuits, short circuits, and out-of-range conditions on each output channel.
• System Health Monitoring: Continuous self-supervision of power supplies, communication links, and internal circuitry.
• Industrial-Grade Durability: Designed for 24/7 operation in harsh conditions, with high resistance to vibration, temperature extremes, and electrical noise.

Flexible Installation & Maintenance

• Hot-Swappable Design: Allows module replacement without powering down the entire DCS, minimizing process downtime.
• Standard Rack Mounting: Fits standard 19-inch industrial control cabinets for easy installation.
• LED Indicators: Visual status lights for power, communication, and individual channel faults for quick troubleshooting.

Application Scenarios

Oil & Gas Industry

• Refinery Process Control: Regulating control valves for distillation columns, catalytic crackers, and hydrotreaters.
• Pipeline Operations: Controlling pump speeds and valve positions for crude oil and natural gas transmission.
• Offshore Platforms: Actuating valves and drives for production separation, water injection, and utility systems in harsh marine environments.

Power Generation

• Thermal Power Plants: Controlling steam turbine valves, boiler feedwater pumps, and flue gas desulfurization (FGD) systems.
• Hydroelectric Plants: Regulating turbine guide vanes and bypass valves for precise power output control.
• Renewable Energy: Managing grid interconnection and power flow control for wind and solar farms.

Chemical & Pharmaceutical Manufacturing

• Continuous Process Plants: Precise control of reactor feed rates, pH adjustment, and product blending in chemical synthesis.
• Batch Processing: Regulating temperature, pressure, and flow in pharmaceutical reaction vessels and clean-in-place (CIP) systems.
• Specialty Chemicals: Delivering accurate control for high-purity material production and hazardous material handling.

Water & Wastewater Treatment

• Municipal Water Plants: Controlling chemical dosing pumps (e.g., chlorine, fluoride) and filter backwash valves.
• Wastewater Facilities: Regulating aeration blowers, sludge pumps, and UV disinfection systems.
• Desalination Plants: Managing high-pressure pumps and membrane control systems for reverse osmosis processes.

Metals & Mining

• Steel Mills: Controlling rolling mill drives, furnace temperature regulators, and material handling conveyors.
• Aluminum Smelting: Regulating electrolytic cell current and raw material feed systems.
• Mineral Processing: Actuating valves for flotation cells, grinding mills, and slurry pipelines.

Pulp & Paper

• Paper Machine Control: Adjusting stock flow, press loads, and dryer temperatures for uniform sheet formation.
• Pulp Digestion: Regulating chemical injection and temperature in batch and continuous cooking processes.
• Recovery Boilers: Controlling fuel feed and air distribution for efficient black liquor combustion.

General Industrial Automation

• Food & Beverage: Managing pasteurization temperatures, filling machine speeds, and packaging line actuators.
• Textile Manufacturing: Controlling yarn tension, dyeing process parameters, and weaving machine drives.
• Legacy System Modernization: Upgrading analog output capabilities in existing Bailey Infi 90 DCS installations to meet current performance standards.
