Product Short Description

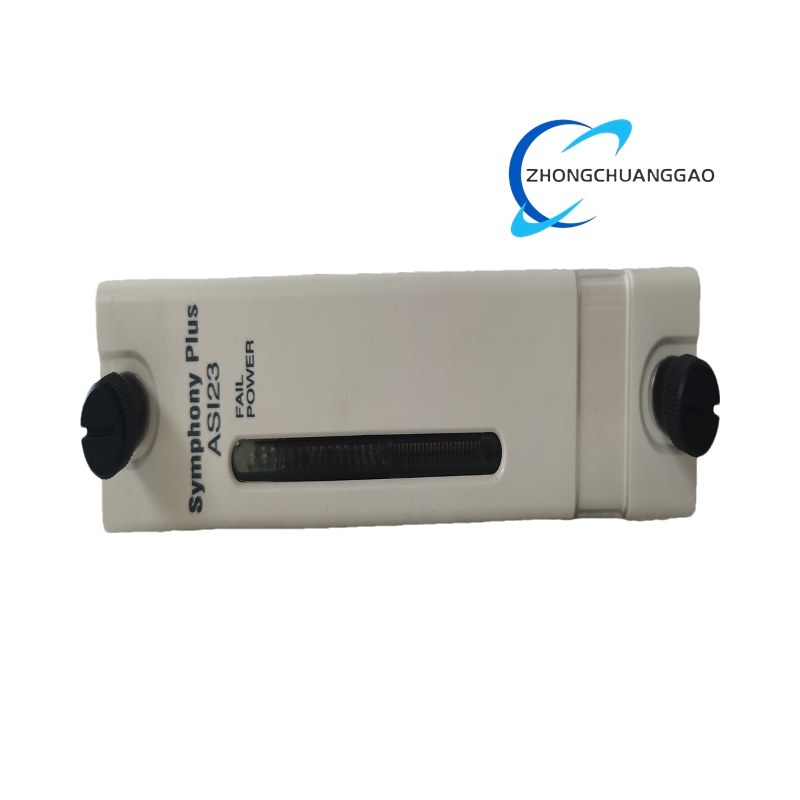

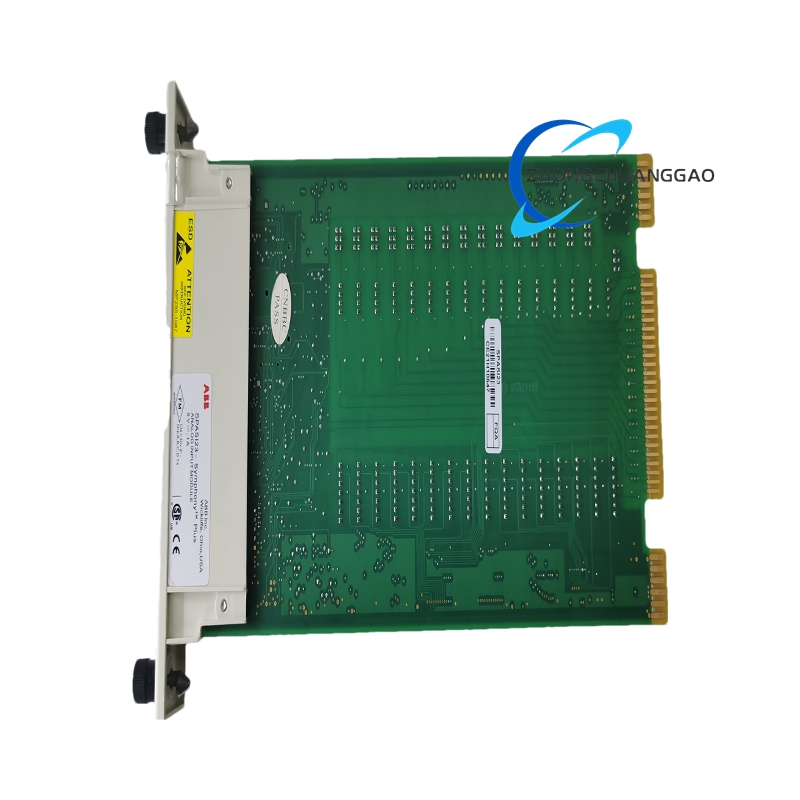

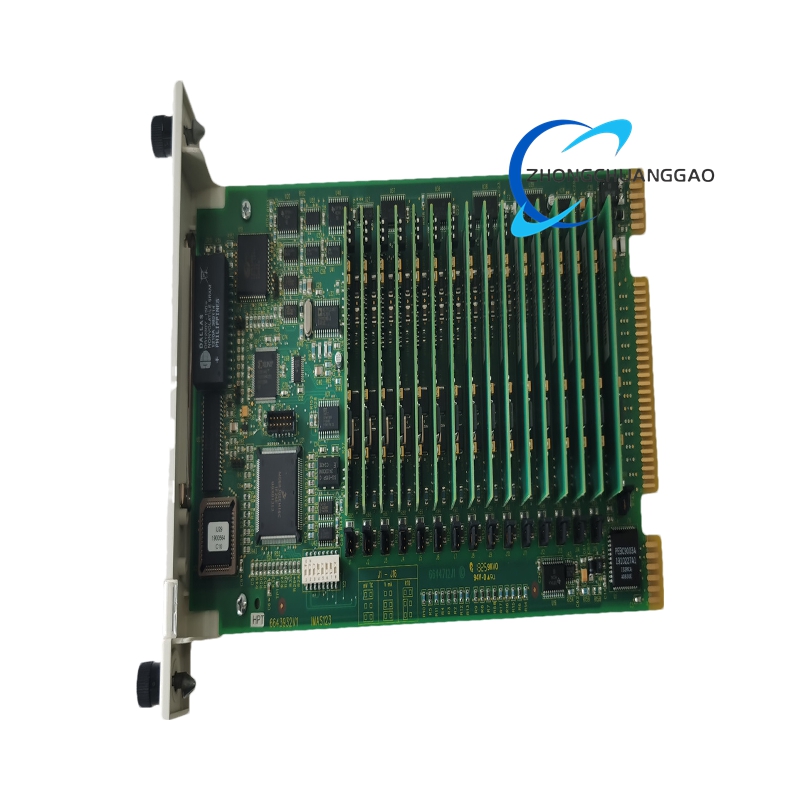

SPASI23 is a 16-channel high-performance analog input module within ABB’s Bailey INFI 90 / Symphony Plus I/O family. It converts field signals from thermocouples (TC), RTDs, thermistors, millivolt sources, voltage and current loops into high-resolution digital data for controllers such as AC 800M, Symphony Plus, or any PLC/DCS that supports Modbus RTU or proprietary Bailey Controlway .
Description
Technical Specifications
-
Input channels: 16
-
Signal types & ranges
– Thermocouple: –200 °C to +1 800 °C (all standard types B, E, J, K, N, R, S, T)
– RTD: –200 °C to +800 °C (Pt100, Pt1000, Ni120, Cu50, Cu100)
– Thermistor: –50 °C to +150 °C
– Voltage: –10 V to +10 V, 0–10 V, ±2.5 V, 1–5 V
– Current: –20 mA to +20 mA, 4–20 mA -
ADC resolution: 16-bit (24-bit front-end Σ-Δ)
-
Accuracy: ±0.1 % of full scale
-
Conversion time: 250 µs per channel
-
Isolation: 2 500 V RMS channel-to-ground, 1 500 V channel-to-channel
-
Communication: RS-485 Modbus RTU; Profibus DP, Controlway (optional)
-
Power supply: 24 VDC ±10 %, 2.5 W
-
Operating temperature: –40 °C to +70 °C
-
Storage temperature: –55 °C to +85 °C
-
Humidity: 0 % – 95 % RH non-condensing
-
Dimensions: 73.66 mm × 360.68 mm × 269.24 mm (6U single-slot)
-
Weight: 0.771 kg
-
Mounting: DIN rail or rack installation; includes terminal board and cables .
Functional Features
-
Universal inputs: each channel independently configurable via software for any of the listed signal types.
-
High-speed sampling and filtering: built-in anti-aliasing and digital averaging for noise immunity.
-
Hot-swap support: module can be replaced without powering down the rack.
-
Self-diagnostics: open-circuit, short-circuit, over-range alarms with LED indication and register flags.
-
Redundancy-ready: supports dual-module configurations and address-coded cascading for larger channel counts.
-
Easy integration: drop-in replacement for legacy IMASI03/IMASI13 modules with minimal configuration changes .
Typical Applications
-
Process control: temperature, pressure, flow and level loops in chemical, petrochemical, pharmaceutical and food plants.
-
Power generation: turbine metal temperature, boiler flue-gas, generator stator RTDs.
-
Oil & gas: wellhead thermocouples, pipeline RTD leak detection, refinery distillation column profiling.
-
Environmental monitoring: air-quality, water-quality and stack emission measurement systems.
-
Laboratory & test rigs: engine test cells, climatic chambers, material testing machines.
-
Building and energy management: HVAC, solar thermal, district heating metering .
