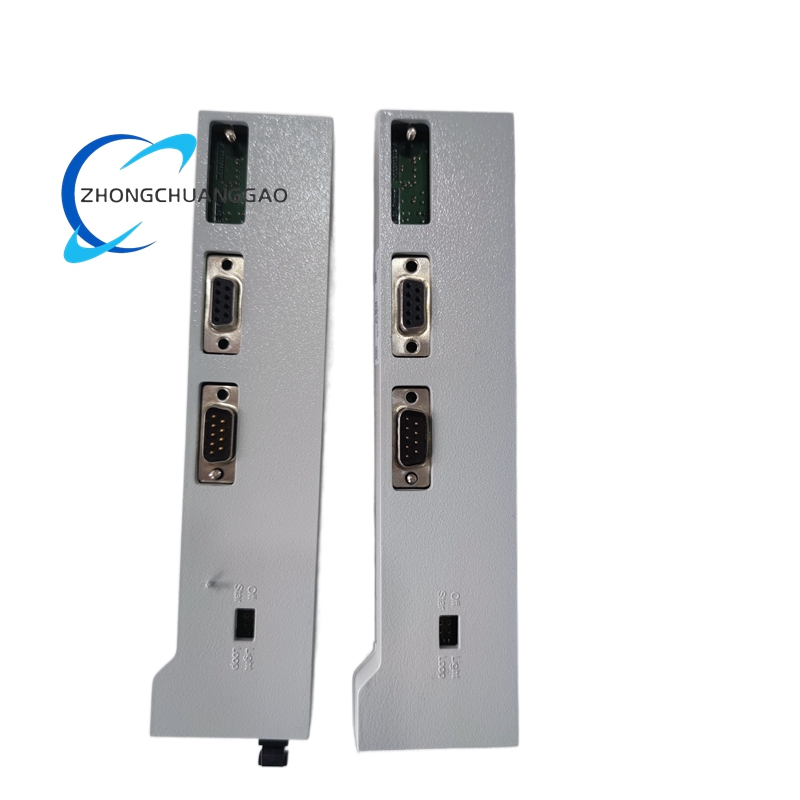

ABB SPA-ZC 400 Ethernet & IEC 61850 Communication Adapter

Description

Technical Specifications

Core Physical & Mechanical Specifications

• Product Type: Ethernet Communication Adapter / Protocol Gateway
• Compatibility: ABB REF 541/3/5, RET 541/3/5, REM 543/5 Protection & Control DevicesABB
• Dimensions (W × H × D): 195 mm × 50 mm × 26 mm
• Net Weight: 120 g (0.12 kg)
• Mounting: Direct plug-in to compatible IEDs
• Protection Class: IP20 (enclosed within IED housing)
• Environmental Ratings:
  • Operating Temperature: -10 °C to +55 °C (continuous)
  • Storage Temperature: -40 °C to +85 °C
  • Humidity: 5% – 95% RH, non-condensing
• Certifications: IEC 60068 (Environmental), IEC 61000-4 (EMC), CE

Electrical & Communication Specifications

Interface Details

• IED Interface: Direct connection to RE_54_ series device communication port
• Ethernet Port: RJ45 (copper) or LC (fiber) for 10/100BASE-TX/100BASE-FX
• Fiber-Optic SPA/LON Port (Optional):
  • MT-RJ: Multimode glass fiber transceiver for IEC 61850 LAN
  • ST: Multimode glass fiber transmitter/receiver pair
  • Snap-in: Multimode plastic fiber transmitter/receiver pair

Key Features

Multi-Protocol Gateway Capability

• IEC 61850 Enablement: Converts legacy device data to IEC 61850-8-1 MMS protocol for seamless integration into digital substations.
• Simultaneous Protocol Support: Operates IEC 61850, SPA TCP/IP, and Modbus TCP/IP concurrently over a single Ethernet connectionABB.
• Legacy Protocol Bridging: Maintains compatibility with existing SPA and LON fieldbus networks via optional fiber-optic ports.
• Disturbance Recorder Integration: Supports uploading of disturbance recorder files from host IEDs via the IEC 61850 interfaceABB.

Robust & Flexible Communication

• Dual Media Support: Offers both copper (RJ45) and fiber-optic (LC/MT-RJ/ST) Ethernet connections for diverse installation needs.
• Fiber-Optic SPA/LON: Optional fiber links provide galvanic isolation and immunity to electrical noise in harsh substation environments.
• Internal Power: Draws power directly from the host IED, eliminating the need for separate power wiring and simplifying installation.
• High Isolation: 2500 VAC isolation between communication ports ensures system safety and noise rejection.

User-Friendly Engineering & Diagnostics

• Intuitive Configuration: Dedicated software tool for easy IEC 61850 data modeling and protocol mappingABB.
• Real-Time Diagnostics: Front-panel LEDs provide instant visual feedback on power, link status, and communication health.
• Event Logging: Maintains a log of communication events and faults for troubleshooting and system analysis.
• Time Synchronization: Supports SPA time synchronization for accurate event timestamping across the network.

Seamless Integration & Modernization

• Plug-and-Play Installation: Directly plugs into compatible RE_54_ series IEDs with minimal setup required.
• Backward Compatibility: Preserves investment in legacy protection devices while enabling migration to modern communication standards.
• Space-Saving Design: Compact form factor fits within standard IED housings, preserving panel space.
• Wide Temperature Range: Operates reliably in extreme substation environmental conditions.

Application Scenarios

Substation Automation Modernization

• Legacy IED Integration: Connects REF/RET/REM 540 series relays to IEC 61850-based substation automation systems (SAS).
• Digital Substation Upgrades: Facilitates the transition from traditional serial-based communication to Ethernet/IEC 61850 networks.
• SCADA System Connectivity: Enables remote monitoring and control of legacy protection devices via SPA over TCP/IP or Modbus TCP/IP.
• Multi-Protocol Networks: Supports coexistence of IEC 61850, SPA, and LON protocols in hybrid substation architectures.

Power Distribution Networks

• Distribution Feeder Monitoring: Provides Ethernet access to feeder protection relays for real-time status and fault data.
• Substation Control Room Integration: Links field-mounted protection devices to central control and monitoring systems.
• Fault Recording & Analysis: Enables remote retrieval of disturbance records from legacy IEDs for post-fault analysis.
• Remote Configuration: Allows engineers to configure and maintain protection relays from a central location via Ethernet.

Industrial Power Systems

• Manufacturing Plant Substations: Integrates legacy protection relays into industrial Ethernet networks for process control.
• Oil & Gas Facilities: Provides robust, noise-immune communication for protection devices in harsh industrial environments.
• Mining Operations: Connects underground and surface substation IEDs to surface control systems via fiber-optic links.
• Water & Wastewater Treatment: Enables remote monitoring of pump and motor protection relays in treatment plants.

Utility & Infrastructure

• Renewable Energy Plants: Integrates protection relays in wind farms and solar installations into utility SCADA systems.
• Transmission Substations: Bridges legacy protection equipment with modern digital control and monitoring systems.
• Railway Electrification: Provides reliable communication for protection devices in railway power distribution networks.
• Data Center Power Systems: Connects critical power protection relays to building management and SCADA systems.
