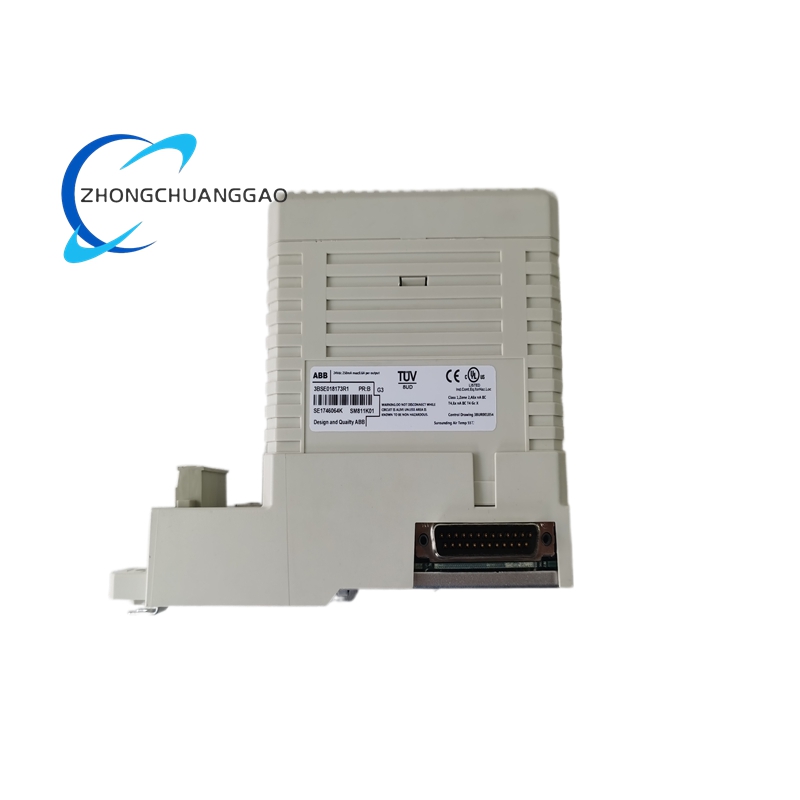

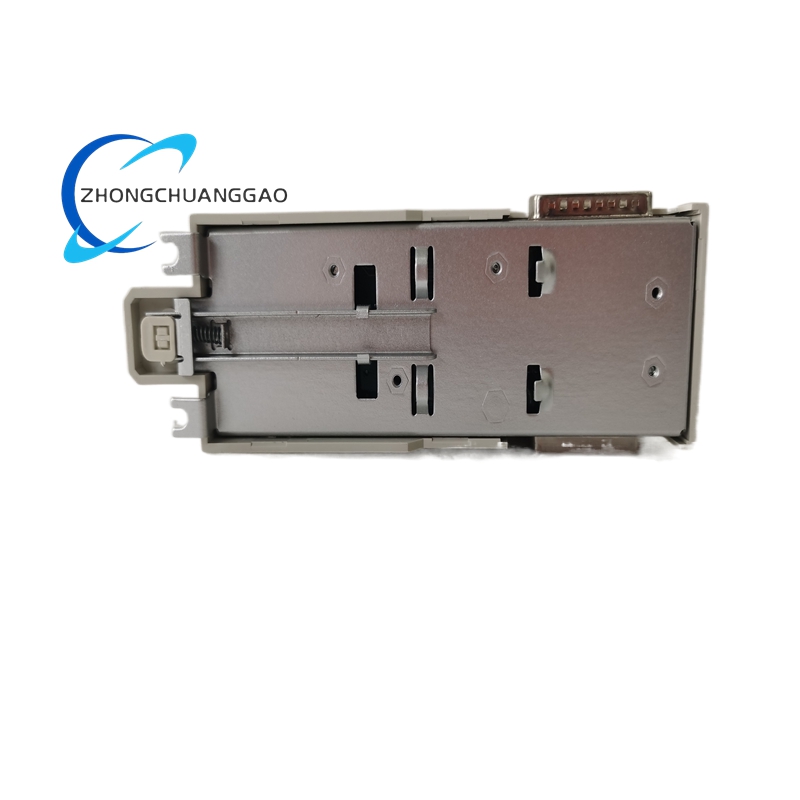

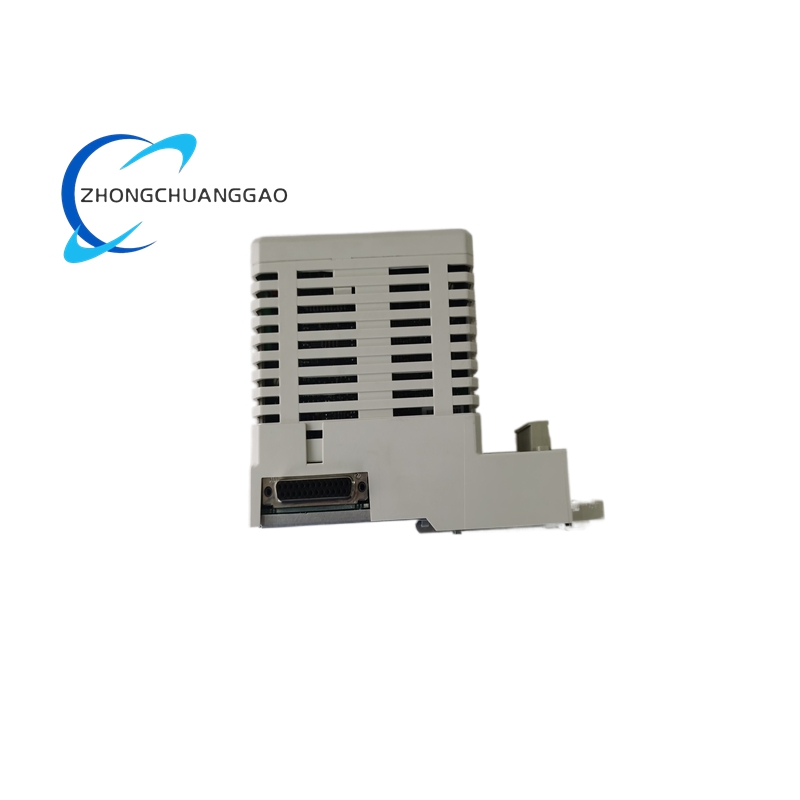

The ABB SM811K01 (3BSE018173R1) is a high‑integrity safety CPU module kit designed for safety‑critical industrial automation applications. It is certified for SIL3 (Safety Integrity Level 3) compliance with IEC 61508 standards, making it suitable for the highest‑risk industrial processes. This module operates in conjunction with the ABB PM865 controller to form a 1oo2 (one‑out‑of‑two) diverse architecture, enabling robust safety functions for SIL1, SIL2, and SIL3 applications. The kit includes the SM811 safety module, TP868 baseplate, and TK852V10 synchronization link cable, and connects to the CEX bus via the BC810 interconnection box. It provides intelligent supervision of the main controller, executes safety‑related logic, and ensures fail‑safe operation in emergency scenarios. This module is intended for legacy system maintenance and upgrades; new installations should use the SM812K01 successor.
Description
Technical Specifications
Core Processing & Memory
- Microprocessor: MPC862P, operating at 96 MHz
- RAM: 32 MB
- Non‑Volatile Memory: 2 MB for safety‑critical data retention
- Response Time: Sub‑millisecond safety logic execution
- Safety Certification: SIL3 (IEC 61508), PL e (ISO 13849‑1)
Power & Electrical
- Supply Voltage: 24 V DC (19.2–30 V DC)
- Power Consumption: Typical 3.8 W, Maximum 6.0 W
- Input Current: 160 mA (typical), 250 mA (maximum) at 24 V DC
- Isolation: Full galvanic isolation between safety logic and field circuits
- Integrated Safety I/O: 3 digital inputs, 2 digital outputs for safety‑related signaling
Mechanical Specifications
- Dimensions: 59 mm (W) × 186 mm (H) × 127.5 mm (D)
- Weight: 0.6 kg (module only), 1.0 kg (complete kit)
- Mounting: Standard DIN‑rail or rack mounting via TP868 baseplate
- Form Factor: Compact industrial module for control cabinet integration
Environmental & Compliance
- Operating Temperature: -20 °C to +60 °C
- Storage Temperature: -40 °C to +85 °C
- Humidity: 5% – 95% RH (non‑condensing)
- Vibration/Shock: Complies with IEC 60068‑2‑6 (vibration) and IEC 60068‑2‑27 (shock)
- EMC: IEC 61000‑4 series industrial electromagnetic compatibility
- Certifications: CE marked, SIL3, PL e, IEC 61508, ISO 13849‑1
- RoHS Status: Not RoHS 2 compliant; for legacy system use only
Communication Interfaces
- Bus Connection: CEX bus via BC810 interconnection box
- Synchronization Link: Dedicated TK852V10 cable for redundant module synchronization
- Supported Protocols: PROFIsafe, Modbus, ABB DriveBus
- Redundancy Support: Hot‑swap capable redundant pair configuration
Core Functions & Features
1. SIL3‑Certified Safety Control
- 1oo2 Diverse Architecture: Works with PM865 to deliver SIL3‑level safety integrity
- Safety Logic Execution: Implements emergency shutdown (ESD), burner management, and interlock functions
- Fail‑Safe Design: Automatically initiates safe states upon fault detection
- Continuous Self‑Diagnostics: Monitors internal circuits and external safety devices for faults
2. Redundancy & High Availability
- Redundant Pair Operation: Supports active‑standby SM811 modules for uninterrupted safety functions
- Synchronization Link: Dedicated TK852V10 cable for real‑time data mirroring between redundant units
- Hot‑Swap Capability: Allows module replacement without system shutdown
- Online Upgrade: Supports firmware updates while maintaining safety operations
3. Intelligent Supervision & Monitoring
- Controller Supervision: Monitors PM865 performance during SIL1‑2 and non‑SIL operation
- Integrated Safety I/O: 3 DI / 2 DO for direct safety‑related signal handling
- Voltage Monitoring: Internal overvoltage and undervoltage protection
- Fault Logging: Stores detailed safety event logs for compliance and troubleshooting
4. Seamless System Integration
- CEX Bus Connectivity: Integrates with Advant 800xA and AC 800M control systems
- Multi‑Protocol Support: PROFIsafe for safety communication, Modbus for general automation
- Baseplate Compatibility: Uses TP868 baseplate for easy installation and wiring
- Configuration Flexibility: Programmable via ABB Safety Manual guidelines for custom safety logic
5. Industrial‑Grade Reliability
- Wide Temperature Range: Operates in harsh industrial environments from -20 °C to +60 °C
- Vibration Resistance: Withstands mechanical stress from heavy machinery
- Isolation Protection: Prevents ground loops and electrical interference
- Long Service Life: Designed for extended operation in mission‑critical safety systems
Application Scenarios
- Oil & Gas: Emergency shutdown (ESD) systems for refineries, offshore platforms, and pipeline networks
- Chemical & Petrochemical: Safety interlocks for reactors, distillation columns, and toxic material handling
- Power Generation: Boiler protection, turbine control, and nuclear power plant safety systems
- Pharmaceutical: GMP‑compliant safety interlocks for batch processes and cleanroom equipment
- Metals & Mining: Furnace safety, conveyor interlocks, and ore processing emergency stop systems
- Pulp & Paper: Dryer section safety, press control, and paper machine emergency shutdown
- Marine & Offshore: Shipboard machinery safety, winch control, and drilling platform protection
- Water & Wastewater: Pump station safety, valve interlocks, and treatment process emergency systems
- Manufacturing: Automotive assembly line safety, robotic cell interlocks, and heavy machinery protection
Unique Advantages
- SIL3 Certification: Meets the highest international safety standards for critical processes
- 1oo2 Diverse Architecture: Delivers unmatched safety integrity with redundant control paths
- Redundancy Support: Ensures continuous safety operation with hot‑swap capability
- Legacy System Compatibility: Designed for maintaining and upgrading existing Advant 800xA systems
- Integrated Safety I/O: Reduces external component requirements for safety signal handling
- Swedish Engineering: Manufactured to ABB’s strict quality standards for long‑term reliability
