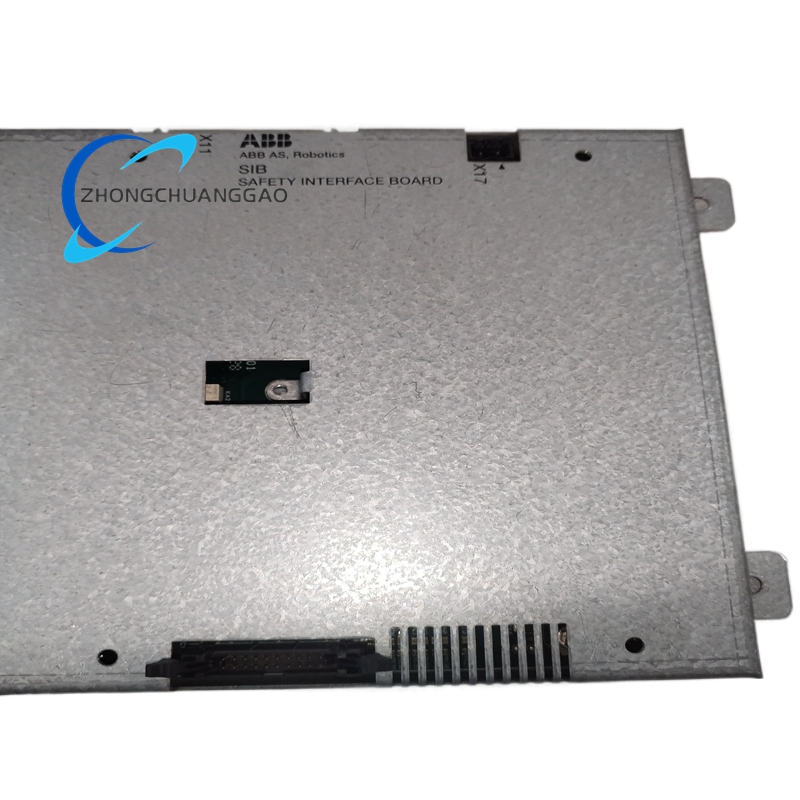

ABB SIB-01 3HNA006146-001 Safety Interface Board

Description

Technical Specifications

Electrical & Safety Parameters

• Safety Classification: Category 4 / Performance Level PL e (ISO 13849-1), SIL 3 (IEC 61508)
• Input Voltage: 24 V DC ± 20% (safety-rated power supply)
• Input Channels: 8 safety-rated digital inputs (dry contact, NPN/PNP compatible)
• Output Channels: 4 safety-rated relay outputs (NO/NC contacts, 250 V AC / 30 V DC, 5 A max)
• Signal Isolation: 2500 V AC (input-to-output, input-to-ground) for electrical safety
• Response Time: < 10 ms (input-to-output safety reaction)
• Fault Detection: Continuous self-testing for short circuits, open circuits, and cross-wiring
• Diagnostics: LED indicators for power, input status, output status, and fault codes

Mechanical & Physical

• Dimensions: 150 mm × 100 mm × 30 mm (compact PCB-mount design)
• Weight: 0.92 kg (net, industrial-grade PCB with aluminum mounting bracket)
• Mounting: Direct DIN rail or cabinet mounting (fits standard IRC5P controller enclosures)
• Terminals: Screw terminals (0.5–2.5 mm²) for field wiring, color-coded for safety connections
• Enclosure Rating: IP20 (suitable for industrial control cabinet installation)
• Construction: FR-4 high-temperature PCB with conformal coating for dust and moisture resistance

Environmental & Reliability

• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5%–95% RH, non-condensing
• Vibration Resistance: IEC 60068-2-6 (5–500 Hz, 10 g rms)
• Shock Resistance: IEC 60068-2-27 (50 g, 11 ms)
• MTBF: Exceeds 200,000 hours under rated operating conditions
• Lifespan: 15+ years of continuous industrial service
• Certifications: CE, UL 508, CSA C22.2 No. 142, RoHS, REACH
• EMC Standards: IEC 61000-6-2 (immunity), IEC 61000-6-3 (emissions)

Compatibility

• Controller Compatibility: ABB IRC5P (Paint Robot Controller) series
• Robot Compatibility: ABB IRB 5510, IRB 5400, IRB 52 paint robot models
• Safety Device Compatibility: Emergency stop buttons, safety door switches, light curtains, safety mats, two-hand control devices
• Software Integration: Fully compatible with ABB RobotStudio and IRC5P safety configuration software

Key Features

High-Integrity Safety Performance

• PL e / SIL 3 Compliance: Meets the highest international safety standards for critical industrial applications
• Redundant Safety Circuits: Dual-channel design for fault tolerance and fail-safe operation
• Immediate Safety Reaction: Sub-10ms response time for emergency stop and safety interlock signals
• Continuous Self-Testing: Built-in diagnostics monitor all safety channels for faults in real time
• Isolated Signal Paths: Prevents electrical interference and ensures reliable safety signal transmission

Robust Industrial Design

• Conformal Coating: Protects PCB from paint overspray, solvents, dust, and moisture in paint shop environments
• Wide Temperature Tolerance: Operates reliably in extreme industrial temperature conditions
• Vibration/Shock Resistance: Withstands robotic motion and factory floor vibrations without performance degradation
• Heavy-Duty Terminals: Secure screw terminals for reliable field wiring connections
• Compact Form Factor: Fits seamlessly into IRC5P controller cabinets without additional space requirements

Advanced Diagnostics & Monitoring

• LED Status Indicators: Clear visual feedback for power, input activation, output status, and fault conditions
• Fault Code Logging: Stores detailed safety fault history for troubleshooting and compliance reporting
• Remote Diagnostics: Access safety status and fault data via ABB RobotStudio or controller HMI
• Real-Time Signal Monitoring: Continuously verifies safety input/output integrity to prevent silent failures
• Predictive Maintenance: Alerts for potential safety channel degradation to reduce unplanned downtime

Seamless Integration & Usability

• Plug-and-Play Installation: Direct compatibility with IRC5P controllers, no custom wiring required
• Pre-Configured Safety Logic: Factory-set safety parameters for standard paint robot applications
• Flexible I/O Configuration: Supports custom safety logic programming via ABB safety software
• Color-Coded Wiring: Simplifies installation and reduces wiring errors
• Hot-Swappable Design: Allows replacement without full controller shutdown (in multi-channel configurations)

Compliance & Safety Assurance

• Global Safety Certifications: Meets CE, UL, and CSA requirements for international deployment
• RoHS/REACH Compliance: Free of hazardous substances, suitable for global manufacturing facilities
• Fail-Safe Design: All safety outputs default to safe state in case of power loss or component failure
• Safety Integrity Monitoring: Continuous verification of safety function performance
• ABB Quality Assurance: 100% factory-tested for safety and reliability before shipment

Application Scenarios

Automotive Paint Shop Automation

• Paint Robot Safety: Emergency stop and safety door interlock control for IRB 5510 paint robots
• Spray Booth Safety: Light curtain and safety mat integration for personnel protection in paint application zones
• Oven & Process Safety: Safety interlocks for paint drying ovens and conveyor systems
• Color Change Stations: Safety monitoring for automated paint color change equipment
• Paint Line Interlocks: Coordinated safety shutdowns for entire paint production lines

General Industrial Robotics Safety

• Assembly Line Safety: Emergency stop and safety gate control for robotic assembly cells
• Material Handling Safety: Light curtain and safety scanner integration for robotic palletizing/depalletizing
• Welding Cell Safety: Safety interlocks for robotic welding workcells
• Machine Tending Safety: Two-hand control and safety door monitoring for CNC machine tending robots
• Cleanroom Automation: Safety signal processing for cleanroom-compatible robotic systems

Hazardous Environment Automation

• Flammable Material Handling: Safety control for robots handling paints, solvents, and other flammables
• Chemical Processing: Safety interlocks for robotic systems in chemical manufacturing facilities
• High-Temperature Operations: Safety monitoring for robots operating in high-temperature industrial environments
• Explosion-Proof Zones: Safety signal conditioning for robots in classified hazardous areas
• Aerospace Coating: Safety control for robotic coating applications in aerospace manufacturing

Safety System Integration

• Emergency Stop Networks: Centralized safety control for multiple robots and production cells
• Safety PLC Integration: Interface between ABB robot safety systems and factory-wide safety PLCs
• Conveyor Safety Interlocks: Coordinated safety shutdowns between robots and conveyor systems
• Personnel Safety Zones: Monitoring and control for restricted access robotic work areas
• Compliance Auditing: Safety status logging for ISO 13849 and IEC 61508 compliance reporting

Maintenance & Service

• Preventive Maintenance: Scheduled safety system testing and component replacement
• Controller Retrofits: Upgrade legacy IRC5P controllers with modern safety interface technology
• System Expansion: Add safety I/O channels for expanded robotic production lines
• Fault Troubleshooting: Diagnostic support for safety system fault identification and resolution
• Spare Part Inventory: Critical replacement component for minimizing paint line downtime
