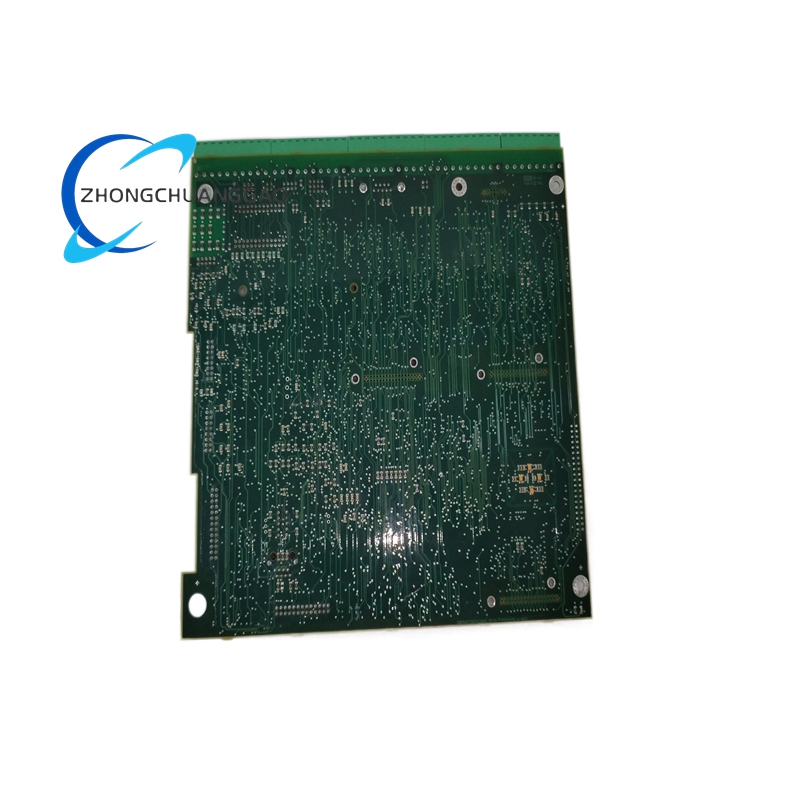

ABB SDCS-CON-4-COAT 3ADT313900R1001 DC Drive Control Board

Description

Technical Specifications

Core Electrical & Processing Parameters

• Primary Function: DC drive control, signal processing, motor regulation, and system monitoring
• Power Supply: 24 V DC nominal (±20% tolerance), low power consumption (≤10 W)
• Processor: High-speed industrial microcontroller for real-time control and fast command execution
• Response Time: ≤550 μs for critical control signal processing
• Control Algorithms: Integrated PID, vector control, and advanced motor regulation algorithms
• I/O Configuration: Modular I/O expansion via 4 dedicated sub-module slots
• Isolation: Full galvanic isolation between control logic and power circuits
• Signal Compatibility: Supports standard industrial analog (0–10 V, 4–20 mA) and digital I/O signals

Communication Interfaces

• Standard Ports: RS-232 (configuration) and RS-485 (field communication)
• Supported Protocols: MB300, MB300E, Modbus RTU/TCP, and ABB DriveBus
• Data Transfer: High-speed serial communication for real-time parameter exchange and diagnostics
• System Integration: Seamless connectivity with PLCs, DCS systems, and HMI panels

Mechanical & Environmental Specifications

• Form Factor: Industrial printed circuit board (PCB) with conformal coating
• Dimensions: 115 mm × 65 mm × 23 mm (compact design for cabinet integration)
• Weight: Approximately 0.24 kg (lightweight for easy installation)
• Mounting: Standard PCB mounting in drive converter enclosures
• Operating Temperature: -20 °C to +60 °C (wide industrial temperature range)
• Storage Temperature: -40 °C to +85 °C
• Humidity: 5% – 95% RH (non-condensing)
• Vibration/Shock: Complies with IEC 60068-2-6 (vibration) and IEC 60068-2-27 (shock) standards
• Protection Rating: IP20 (when installed in appropriate drive enclosure)
• EMC Compliance: IEC 61000-4 series (industrial electromagnetic compatibility)

Compliance & Certifications

• Safety & Environmental: CE marked, RoHS compliant (EU Directive 2011/65/EU)
• Quality: Manufactured to ISO 9001 quality management standards
• Origin: Designed and manufactured in Sweden

Core Functions & Features

1. Precision DC Drive Control

• Motor Regulation: Delivers precise closed-loop speed and torque control for DC motors
• Real-Time Processing: Executes control algorithms with sub-millisecond response time
• Adaptive Control: Automatically adjusts parameters for varying load conditions
• Fault Protection: Implements overcurrent, overvoltage, undervoltage, and overtemperature protection

2. Modular I/O Expansion

• 4 Sub-Module Slots: Supports flexible configuration with analog input/output, digital input/output, and specialty modules
• Scalability: Adapts to diverse application requirements without hardware redesign
• Signal Isolation: Each I/O channel features galvanic isolation to prevent ground loops and electrical interference

3. Robust Communication Capabilities

• Multi-Protocol Support: Integrates with industrial networks via RS-232, RS-485, and standard protocols
• Remote Monitoring: Enables real-time parameter monitoring and configuration from control rooms
• Diagnostic Data: Transmits detailed drive status, fault codes, and performance metrics to host systems
• Seamless Integration: Works with ABB automation systems and third-party industrial controllers

4. Industrial-Grade Durability

• Conformal Coating: Protective coating resists dust, moisture, and chemical exposure in harsh environments
• Wide Temperature Tolerance: Operates reliably in extreme industrial temperature conditions
• Vibration Resistance: Withstands mechanical vibration from heavy machinery and production lines
• Long Service Life: High-quality components ensure extended operational life with minimal maintenance

5. Advanced Diagnostics & Self-Monitoring

• Continuous Self-Testing: Performs real-time diagnostics of internal circuits and connected devices
• Fault Detection: Identifies and reports drive faults, sensor errors, and communication anomalies
• Status Indicators: Onboard LEDs provide visual feedback for power, communication, and fault conditions
• Data Logging: Stores critical operational data for troubleshooting and performance analysis

Application Scenarios

• Metal Processing Machinery: Precision speed control for rolling mills, extrusion lines, and metal forming equipment
• Material Handling Systems: DC motor control for conveyors, cranes, hoists, and automated storage systems
• Pulp & Paper Manufacturing: Drive control for paper machines, calenders, and winding equipment
• Mining Equipment: Reliable operation for crushers, conveyors, and ore processing machinery in harsh mining environments
• Cement & Building Materials: Control for kilns, mills, and material handling systems in cement production plants
• Marine & Offshore: DC drive control for shipboard machinery, winches, and offshore drilling equipment
• Textile Manufacturing: Precise speed regulation for spinning, weaving, and finishing machinery
• Printing & Packaging: High-performance control for printing presses, laminators, and packaging lines
• Power Generation: Auxiliary drive control for turbines, pumps, and generator systems in power plants

Unique Advantages

• Conformal Coated Design: Enhances reliability in harsh industrial environments with dust, moisture, and chemical exposure
• Modular Flexibility: 4 sub-module slots enable custom I/O configurations for diverse application needs
• High-Speed Control: Sub-millisecond response time ensures precise and stable DC motor regulation
• Seamless Integration: Multi-protocol communication simplifies connection to industrial automation systems
• RoHS Compliance: Meets global environmental standards for sustainable industrial operation
• Swedish Engineering: Manufactured to ABB’s strict quality standards for long-term reliability
