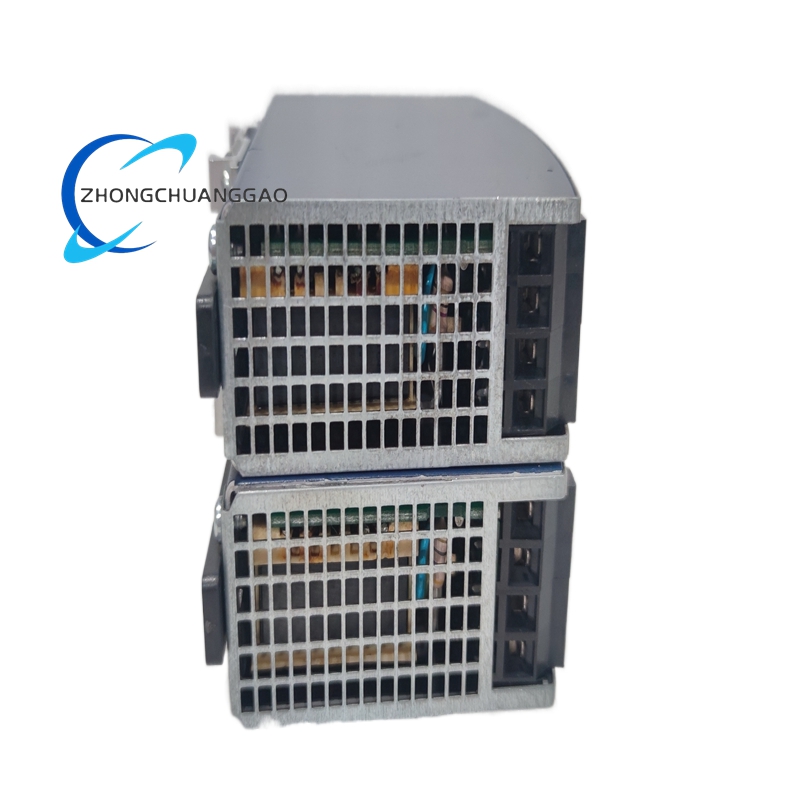

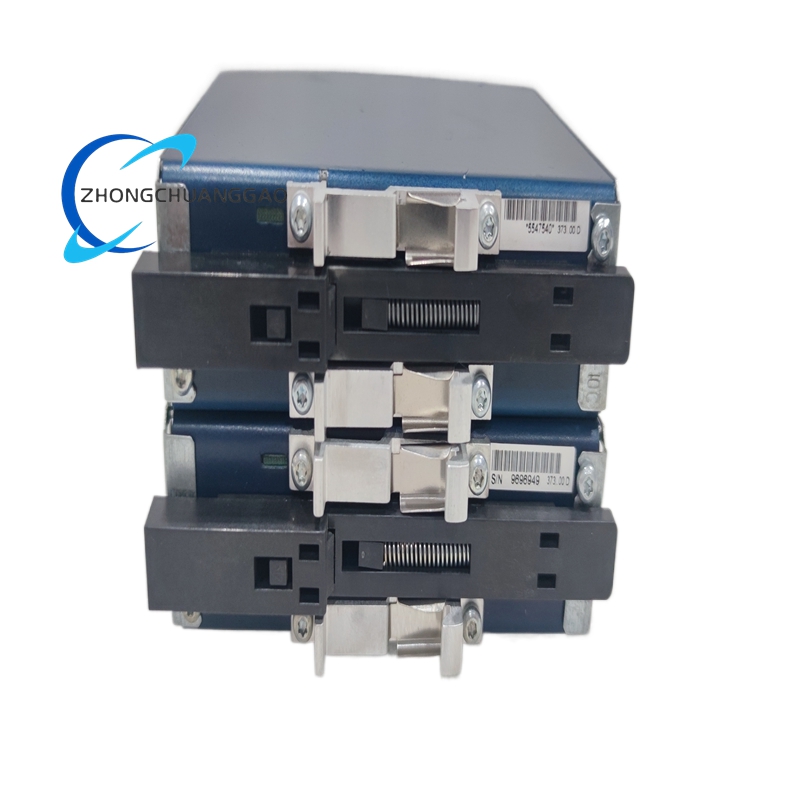

ABB SD831 3BSC610064R1 Switch-Mode Power Supply Module

Description

• Input Voltage:
  • AC: 100–240 V AC, 50/60 Hz (wide range, auto-adaptive)
  • DC: 110–300 V DC (wide range)
• Output Voltage: 24 V DC (regulated, SELV/PELV compliant)
• Output Current: 3 A (rated), 72 W (total output power)
• Efficiency: Up to 89.8% (high energy conversion)ABB
• Soft Start: Built-in soft-start function prevents fuse tripping during power-on
• Protection Features:
  • Overcurrent protection (current limiting)
  • Overvoltage protection (OVP)
  • Short-circuit proof output circuitry
• Isolation: Protective electrical isolation between primary and secondary circuits
• Status Indicators: LED indicators for power-on, output normal, and fault conditions
• Mounting: DIN rail mounting (standard industrial installation)
• Dimensions: 32 mm (W) × 124 mm (H) × 102 mm (D) (compact form factor)
• Weight: Approximately 0.52 kg (lightweight design)
• Operating Temperature: 0°C to +55°C
• Humidity: 5%–95% RH (non-condensing)
• Protection Rating: IP20 (basic dust and contact protection)
• Certifications:
  • EN 50178, EN 61131-2, UL 508 (electrical safety)
  • RoHS (2011/65/EU), WEEE (2012/19/EU) complianceABB
  • Overvoltage Category III for mains connection

Key Features

Wide-Range Input Compatibility

• Dual Input Support: Accepts both AC (100–240 V) and DC (110–300 V) inputs without manual switching.
• Global Adaptability: Operates reliably across diverse regional power grids, simplifying global deployment.
• No Mains Filter Required: Integrated design eliminates the need for external mains filtering components.

High Efficiency & Stable Output

• Switch-Mode Technology: Delivers up to 89.8% efficiency, minimizing energy loss and heat generationABB.
• Precision Regulation: Provides a clean, low-ripple 24 V DC output for sensitive industrial electronics.
• SELV/PELV Compliance: Secondary output meets safety standards for low-voltage, isolated applications.

Redundancy & System Integration

• Redundancy Support: Works with ABB SS823 or SS832 diode voting units to build fully redundant power systems.
• Seamless Compatibility: Directly integrates with AC 800M controllers and S800 I/O subsystems.
• Hot-Swappable: Enables replacement in redundant setups without system shutdown, maximizing uptime.

Robust Protection & Diagnostics

• Multi-Layer Safety: Overcurrent, overvoltage, and short-circuit protection safeguard connected devices.
• Visual Diagnostics: LED indicators provide instant status feedback for quick troubleshooting.
• Soft-Start Function: Prevents inrush current spikes, protecting fuses and circuit breakers during startup.

Compact & Easy Installation

• DIN Rail Mount: Standard industrial mounting for quick, tool-free installation in control cabinets.
• Space-Saving Design: Slim 32 mm width optimizes cabinet space utilization.
• Lightweight Construction: Reduces structural load and simplifies handling during setup.

Application Scenarios

Process Automation (DCS Systems)

• Oil & Gas: Powering AC 800M DCS for refinery process control, pipeline monitoring, and safety systems.
• Chemical & Petrochemical: Supplying stable power to reactor controls, analyzer systems, and emergency shutdown (ESD) loops.
• Power Generation: Supporting turbine control, boiler management, and plant auxiliary systems in thermal and renewable power plants.
• Water & Wastewater: Providing reliable power for SCADA, pump controls, and water treatment automation.

Manufacturing & Discrete Automation

• Automotive Production: Powering assembly line robots, conveyor systems, and quality inspection equipment.
• Pharmaceuticals: Ensuring uninterrupted power for batch processing, packaging, and cleanroom automation.
• Food & Beverage: Supporting high-speed packaging, bottling, and material handling systems.
• Electronics Manufacturing: Delivering clean power for precision assembly, testing, and semiconductor fabrication lines.

Infrastructure & Utilities

• Smart Grids: Powering remote terminal units (RTUs), substation automation, and distribution control systems.
• Building Automation: Supplying HVAC controls, fire safety systems, and energy management platforms.
• Marine & Offshore: Providing robust power for shipboard control, navigation, and offshore platform automation.
• Mining & Metals: Supporting heavy machinery control, material handling, and process monitoring in harsh mining environments.

General Industrial Control

• S800 I/O Systems: Primary power source for digital and analog I/O modules in distributed control architectures.
• Field Instrumentation: Powering transmitters, actuators, solenoid valves, and other 24 V DC field devices.
• System Retrofits: Upgrading legacy power supplies in existing AC 800M installations for improved reliability and efficiency.
• Machine Safety Systems: Ensuring continuous power for safety interlocks, emergency stop circuits, and safety PLCs.
