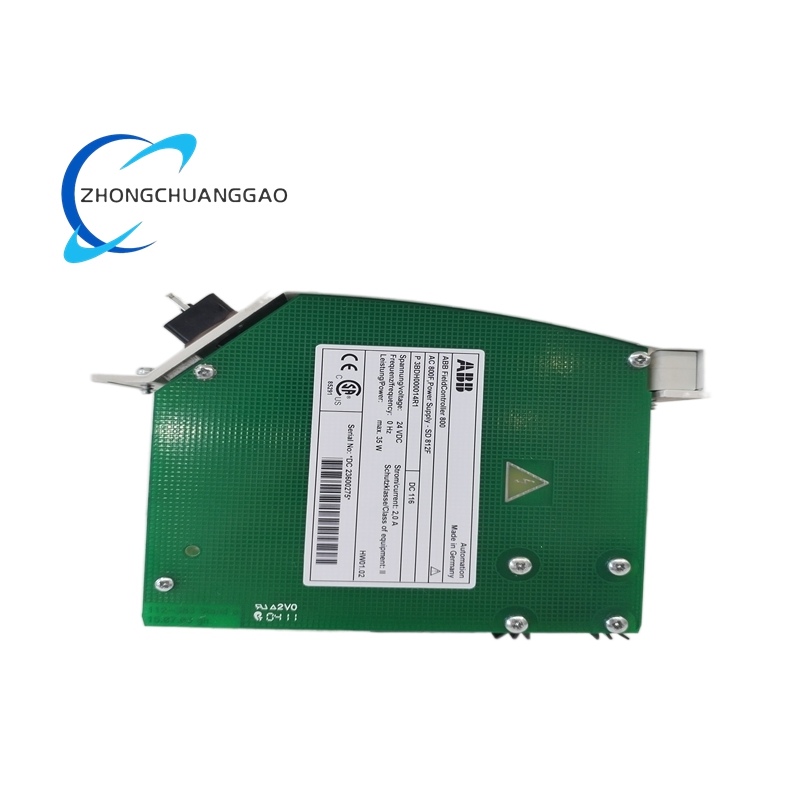

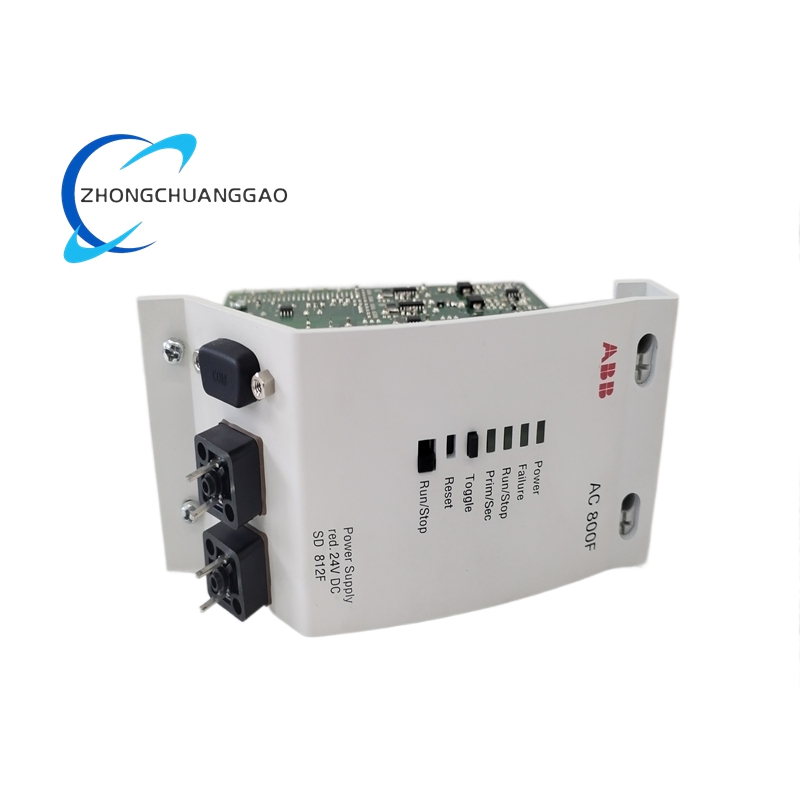

ABB SD812F 3BDH000014R1 Power Supply Module

Description

• Input Power: Dual redundant 24 V DC inputs, with a tolerance of ±25%
• Input Filter: Integrated EMC (Electromagnetic Compatibility) filter for noise suppression
• Output Voltages:
  • 3.3 V DC, ±3% tolerance, 6.5 A maximum current
  • 5.0 V DC, ±3% tolerance, 5.5 A maximum current
• Total Output Power: 35 Watts
• Power Failure Bridging: Maintains output for >20 ms during input power loss
• Protection Features:
  • Overcurrent limiting with permanent short-circuit proof design
  • Input and output voltage monitoring
  • Power-fail signal generation for system diagnostics
• Diagnostics: Onboard EEPROM for storing manufacturing and diagnostic data
• Status Indicators: Integrated LED indicators for operational status and fault diagnosis
• Operating Temperature: -25°C to +70°C, suitable for harsh industrial environments
• Dimensions: Compact form factor for standard DIN rail or backplane mounting
• Weight: Approximately 2.5 kg
• Certifications: CE, IEC 61010, and relevant industrial safety standards

Key Features

Redundant Power Input

• Dual 24V DC Inputs: Supports fully redundant power sources for maximum system uptime.
• Automatic Input Selection: Seamlessly switches between primary and backup power supplies without interruption.
• Enhanced Reliability: Eliminates single point of failure for the power subsystem.

High-Efficiency Power Conversion

• Step-Down Switch Controllers: Delivers precise, regulated output voltages with high energy efficiency.
• Low Heat Dissipation: Optimized design minimizes thermal output, improving long-term reliability.
• Wide Input Compatibility: Accommodates fluctuating industrial power grids.

Comprehensive Protection & Diagnostics

• Multi-Level Protection: Overcurrent, short-circuit, and voltage monitoring safeguards connected electronics.
• Power-Fail Signaling: Triggers early warnings to the controller for proactive system response.
• Diagnostic Interface: Facilitates remote monitoring and troubleshooting via the AC 800F system.
• Status LEDs: Provides at-a-glance visual feedback on module health and power status.

Seamless System Integration

• Plug-and-Play Design: Directly mounts onto the AC 800F controller backplane for easy installation.
• Hot-Swappable: Supports replacement without powering down the entire system (in redundant configurations).
• Compatibility: Fully integrated with ABB’s Control Builder F (CBF) engineering tool for configuration and monitoring.

Application Scenarios

Process Automation & Control

• Oil & Gas Refineries: Powering distributed control systems (DCS) for process monitoring and regulation.
• Chemical & Petrochemical Plants: Ensuring stable power for critical reactor control and safety systems.
• Power Generation: Supporting turbine control and plant automation in thermal and renewable energy facilities.
• Water & Wastewater Treatment: Providing reliable power for SCADA and PLC-based treatment processes.

Manufacturing & Industrial Production

• Pharmaceutical Manufacturing: Powering precision control systems for batch processing and quality control.
• Food & Beverage Production: Ensuring uninterrupted operation of packaging and bottling lines.
• Automotive Assembly: Supporting high-speed robotics and conveyor control systems.

Infrastructure & Utilities

• Smart Grid Systems: Powering remote terminal units (RTUs) and substation automation.
• Building Automation: Providing stable power for HVAC, fire safety, and energy management systems.
• Marine & Offshore: Delivering robust power for shipboard control and navigation systems.

General Industrial Control Systems

• DCS/PLC Systems: Serving as the primary power source for ABB AC 800F and compatible control platforms.
• Instrumentation Loops: Powering field transmitters, actuators, and I/O modules.
• System Retrofits: Upgrading power supplies in legacy industrial control systems for improved reliability.
