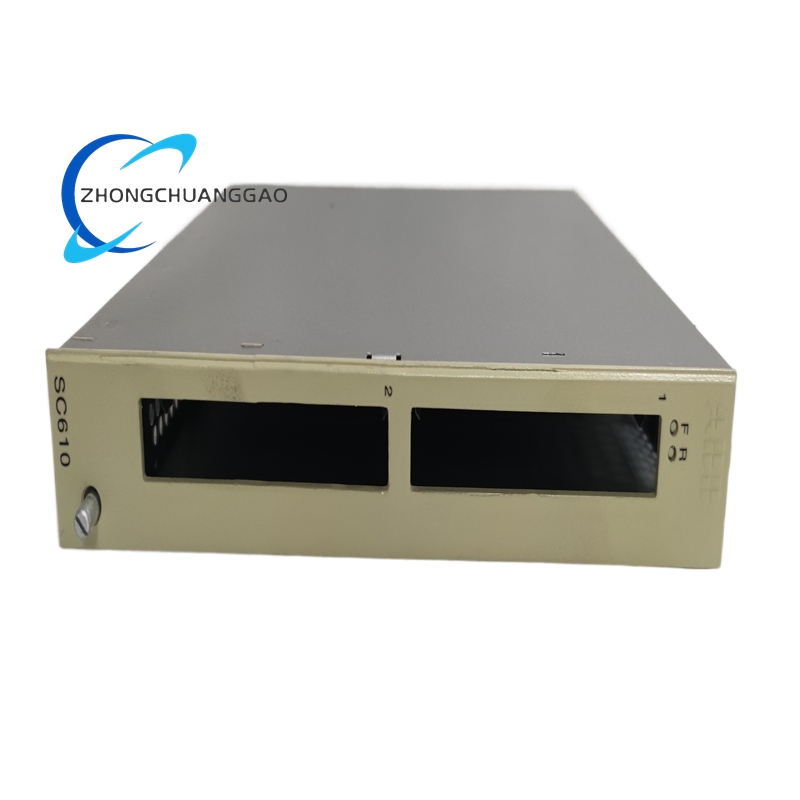

ABB SC610 3BSE001552R1 Submodule Carrier

Description

Technical Specifications

Core Physical & Mechanical Specifications

• Product Type: Submodule Carrier (No Integrated CPU)
• Order Code: 3BSE001552R1
• Dimensions (W × H × D): 40 mm × 273 mm × 252 mm
• Net Weight: 1.44 kg
• Material: High‑strength aluminum alloy with anodized surface treatment
• Mounting: Standard cabinet rack‑mounting for Advant Controller 100 Series systems
• Protection Class: IP20
• Environmental Ratings:
  • Operating Temperature: -20°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Humidity: 5% – 95% RH, non‑condensing
• Certifications: CE, RoHS compliant (EU Directive 2011/65/EU)

Electrical & Interface Specifications

• System Compatibility: Exclusively designed for ABB Advant Controller 100 Series DCS
• Power Interface: Accepts 24 V DC system power for connected communication modules
• Module Capacity: Accommodates up to two CI532 communication interface modules
• Signal Routing: High‑speed backplane connectors for reliable data transmission between communication modules and the main controller
• Isolation: Integrated galvanic isolation for communication signals
• EMC Performance: Complies with IEC 61000‑6‑2 (Immunity) and IEC 61000‑6‑4 (Emissions) standards

Key Features

Specialized Communication Module Support

• CI532 Compatibility: Engineered specifically to host two CI532 communication modules, enabling integration of PROFIBUS DP, Modbus, and other fieldbus protocols into the Advant 100 system.
• Dual Module Capacity: Maximizes communication port density within a single carrier, reducing cabinet space requirements for communication infrastructure.
• Stable Communication Backbone: Precision‑engineered backplane ensures low‑latency, error‑free data transfer between communication modules and the control system.

Robust & Durable Construction

• High‑Strength Aluminum Build: Anodized aluminum alloy construction provides excellent resistance to vibration, shock, and corrosion, ensuring long‑term reliability in harsh industrial settings.
• Thermal Stability: Optimized thermal design maintains consistent performance across the full operating temperature range, preventing communication errors due to temperature fluctuations.
• Long Service Life: Designed for continuous 24/7 operation, minimizing maintenance needs and system downtime.

Simplified Installation & Integration

• Plug‑and‑Play Design: Supports direct, tool‑free installation of CI532 modules, reducing setup time and complexity.
• Clear Labeling: Intuitive slot and connector labeling simplifies wiring, configuration, and troubleshooting of communication modules.
• Seamless System Integration: Fully compatible with Advant Controller 100 Series hardware and software, ensuring plug‑and‑play functionality without additional configuration.

Enhanced System Flexibility

• Modular Communication Expansion: Enables incremental expansion of communication capabilities, allowing users to add fieldbus interfaces as needed.
• Space‑Efficient Design: Compact 40 mm width maximizes cabinet space utilization, ideal for dense control system layouts.
• Future‑Proof Connectivity: Supports a wide range of industrial communication protocols via CI532 modules, ensuring compatibility with legacy and modern field devices.

Application Scenarios

Industrial Automation & Process Control

• Manufacturing Automation: Provides communication interfaces for connecting PLCs, HMIs, and field devices in discrete manufacturing lines, including automotive, electronics, and consumer goods production.
• Machine Control: Integrates fieldbus communication for CNC machines, robotics, and material handling equipment, enabling real‑time data exchange and precise control.
• Packaging & Processing: Supports communication between control systems and packaging machinery, ensuring efficient and reliable operation in food, beverage, and pharmaceutical packaging lines.

Power Generation & Distribution

• Power Plant Monitoring: Facilitates communication between control systems and power generation equipment, including boilers, turbines, and generators, for real‑time monitoring and control.
• Substation Automation: Provides a platform for communication modules in high‑voltage substations, enabling integration of protection relays, RTUs, and SCADA systems.
• Grid Management: Supports fieldbus communication for power distribution network monitoring, load management, and fault detection systems.

Oil & Gas Industry

• Upstream Operations: Enables communication between control systems and wellhead equipment, sensors, and actuators in drilling and production operations.
• Refining & Petrochemicals: Provides communication interfaces for process control systems in refineries and petrochemical plants, supporting integration with distributed I/O and safety systems.
• Pipeline Control: Facilitates long‑distance communication for pipeline monitoring, leak detection, and flow control systems.

Water & Wastewater Treatment

• Plant Automation: Integrates communication modules for connecting pump stations, valve actuators, and water quality sensors in treatment facilities.
• Distribution Networks: Supports remote communication for water distribution and wastewater collection systems, enabling real‑time monitoring and control.
• Environmental Monitoring: Provides fieldbus interfaces for environmental sensors, ensuring compliance with regulatory requirements for water quality and emissions.

Mining & Metallurgy

• Mine Automation: Facilitates communication between control systems and mining equipment, including conveyors, hoists, and ventilation systems.
• Metallurgical Processing: Supports communication for furnace control, material handling, and quality monitoring systems in steel and non‑ferrous metal production.
• Mineral Processing: Enables integration of control systems with crushing, grinding, and flotation equipment, optimizing process efficiency and safety.
