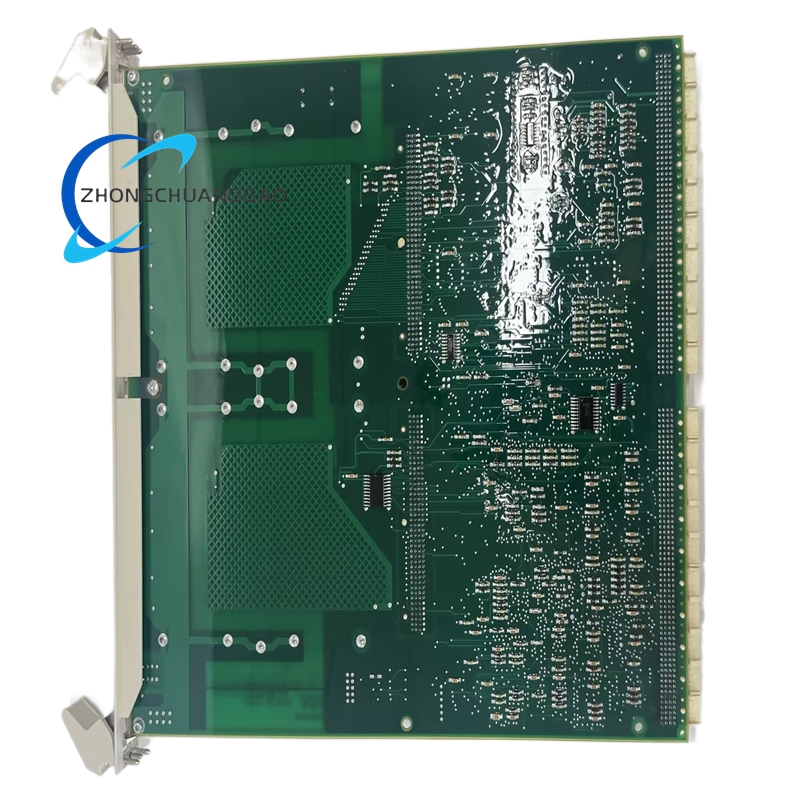

ABB SC510 3BSE003832R1 Submodule Carrier

Description

Technical Specifications

Core Physical & Mechanical Specifications

• Part Number: 3BSE003832R1ABB
• Product Type: Submodule Carrier (No Integrated CPU)ABB
• Dimensions: 486 mm (Width) × 288 mm (Depth) × 22.5 mm (Height)ABB
• Net Weight: 0.67 kgABB
• Material: Industrial‑grade stainless steel construction
• Mounting: Standard rack‑mountable for ABB control system cabinets
• Environmental Ratings:
  • Operating Temperature: -25°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Humidity: 5% – 95% RH, non‑condensing
• Certifications: CE, UL, ISO 9001 compliant
• RoHS Compliance: Meets EU Directive 2011/65/EUABB

Electrical & Interface Specifications

• System Compatibility: Fully compatible with ABB Advant OCS DCS platforms
• Power Interface: Accepts 24 V DC system power for connected submodules
• Signal Routing: High‑speed backplane connectors for reliable data transmission between submodules
• Isolation: Integrated galvanic isolation for communication and I/O signals
• EMC Performance: Complies with IEC 61000‑6‑2 (Immunity) and IEC 61000‑6‑4 (Emissions) standards

Key Features

Modular & Scalable Design

• Flexible Expansion: Accommodates a wide range of ABB submodules, enabling custom system configurations to meet specific application requirements.
• Seamless Integration: Designed for direct integration into ABB’s standard control system racks, ensuring compatibility with existing infrastructure.
• Space‑Efficient: Slim profile (22.5 mm height) maximizes cabinet space utilization, ideal for dense control system layoutsABB.

High Reliability & Durability

• Industrial‑Grade Construction: Stainless steel build withstands vibration, shock, and harsh industrial conditions.
• Stable Signal Integrity: Precision‑engineered backplane ensures consistent, low‑noise signal transmission between submodules.
• Long Lifespan: Designed for continuous operation in 24/7 industrial environments, minimizing maintenance requirements.

Simplified Installation & Maintenance

• Tool‑Free Module Installation: Supports hot‑swappable submodule installation and replacement without system shutdown.
• Clear Labeling: Intuitive marking for submodule slots and connectors simplifies wiring and troubleshooting.
• Universal Compatibility: Works with all standard ABB submodules for Advant OCS systems, reducing inventory complexity.

Enhanced System Performance

• High‑Speed Data Routing: Optimized backplane design supports fast data transfer between submodules and the main controller.
• Isolation Protection: Built‑in electrical isolation safeguards connected submodules from voltage transients and ground loops.
• EMC Compliance: Ensures reliable operation in environments with high electromagnetic interference, common in industrial settings.

Application Scenarios

Power Generation & Distribution

• Power Plant Automation: Supports submodule integration for boiler control, turbine control, and generator monitoring systems.
• Substation Control: Provides a carrier platform for protection relays, RTUs, and communication modules in high‑voltage substations.
• Grid Management: Facilitates expansion of SCADA systems for power distribution network monitoring and control.

Oil & Gas Industry

• Upstream Operations: Used in drilling and wellhead automation systems for sensor data acquisition and control signal routing.
• Refining & Processing: Supports modular I/O and communication expansion in process control systems for refineries and petrochemical plants.
• Pipeline Monitoring: Provides a stable platform for remote terminal units and communication modules in long‑distance pipeline control systems.

Chemical & Pharmaceutical Manufacturing

• Process Control Systems: Enables expansion of DCS configurations for chemical reactors, distillation columns, and batch processing lines.
• Hazardous Area Monitoring: Supports intrinsically safe submodules for monitoring and control in explosive environments.
• Quality Control: Facilitates integration of analytical instrumentation and data acquisition modules for product quality assurance.

Water & Wastewater Treatment

• Plant Automation: Provides a carrier for pump control, valve actuation, and water quality monitoring submodules.
• Distribution Networks: Supports remote I/O expansion for water distribution and wastewater collection systems.
• Environmental Monitoring: Enables integration of sensors for pH, flow, and level measurement in treatment facilities.

Manufacturing & Industrial Automation

• Assembly Lines: Supports modular I/O expansion for PLC‑based control systems in automotive and general manufacturing.
• Material Handling: Provides a platform for conveyor control, robot integration, and warehouse automation submodules.
• Machine Tools: Facilitates integration of motion control and monitoring modules for CNC machines and metalworking equipment.

Mining & Metallurgy

• Mine Automation: Supports submodule integration for ventilation, conveyor, and hoist control systems in underground and surface mines.
• Metallurgical Processing: Provides a stable carrier for furnace control, material handling, and quality monitoring submodules.
• Mineral Processing: Enables expansion of DCS configurations for crushing, grinding, and flotation processes.
