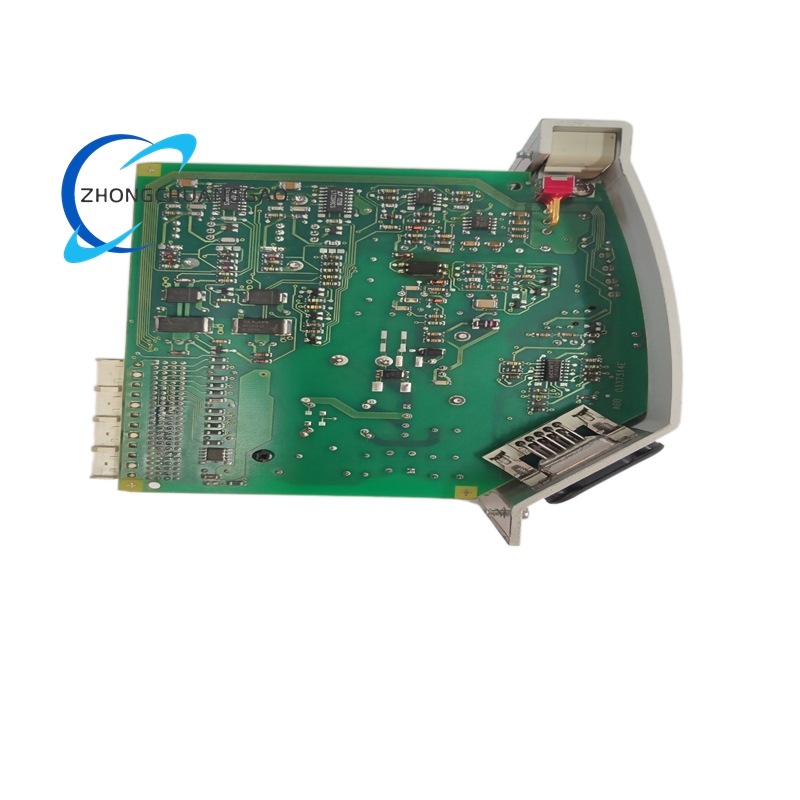

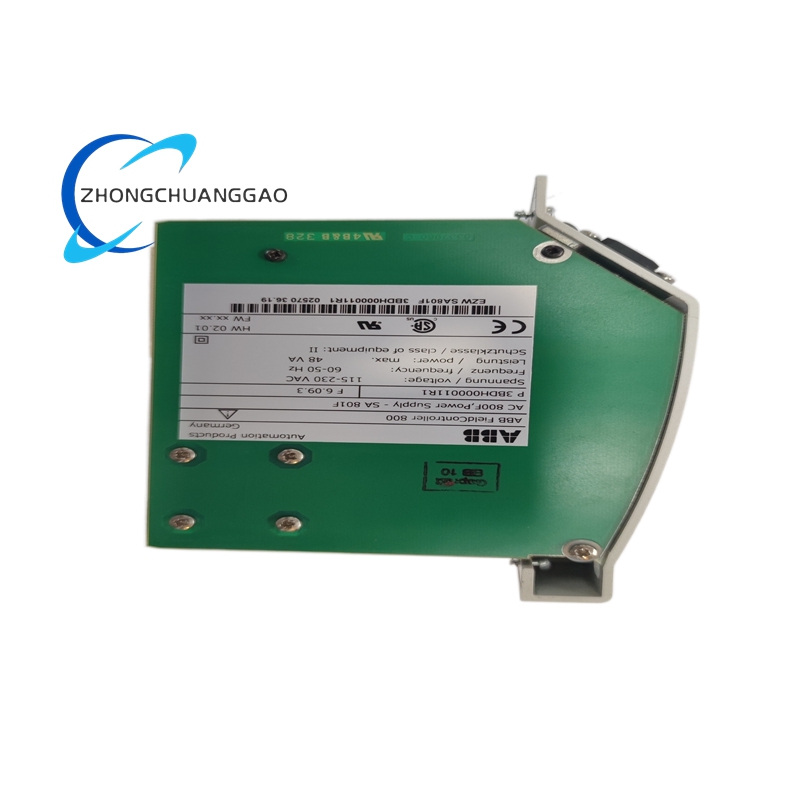

ABB SA801F 3BDH000011R1 Power Supply Module for AC800F

Description

Technical Specifications

Core Electrical Parameters

• Input Voltage: 115/230 V AC, wide range (90–264 V AC), 50/60 Hz
• Input Power Consumption: Max. 35 W (at full load)
• Output Voltages & Currents:
  • 3.3 V DC: ±3% tolerance, 5.0 A (26.5 W total output)
  • 5.0 V DC: ±3% tolerance, 5.0 A
• Output Hold-Up Time: ≥ 20 ms during input power failure
• Efficiency: ≥ 80% at full load
• Isolation Voltage: 2.5 kV AC (input to output)
• EMC Filtering: Integrated EMC filter on input for compliance with industrial standards
• Protection Features:
  • Overcurrent protection (OCP) with automatic recovery
  • Short-circuit protection (SCP)
  • Overvoltage protection (OVP)
  • Input/output voltage monitoring with fault signaling

Mechanical & Environmental Specifications

• Dimensions: 152 mm × 76 mm × 178 mm (6.0″ × 3.0″ × 7.0″)
• Weight: Approx. 0.4 kg (0.88 lbs)
• Mounting: Dedicated P-slot in AC800F controller rack; secured with top and bottom screws
• Operating Temperature: -10 °C to +60 °C
• Storage Temperature: -20 °C to +70 °C
• Humidity: 5% – 95% RH (non-condensing)
• Vibration/Shock: Complies with IEC 60255-21-1 (Class 2) and IEC 60255-21-2 (Class 1)
• EMC Compliance: IEC 61000-4 series (Class 3 immunity); EN 50081-2 (Class A emission)

System Integration & Diagnostics

• Status Indicators: Integrated LED indicators for Power On (green) and Power Fault (red)
• Diagnostic Interface: Built-in diagnostic port with EMC filtering for system monitoring
• Data Storage: On-board EEPROM for storing diagnostic data and module identification
• Compatibility: Exclusively for ABB AC800F / Freelance DCS; supports PM802F CPU motherboards
• Certifications: CE marked, compliant with IEC 60255 series and ANSI C37.90 standards

Core Functions & Features

1. Stable Power Distribution

• Dual Voltage Output: Provides precisely regulated 3.3 V DC and 5.0 V DC to power all critical components of the AC800F controller.
• Wide Input Range: Accepts global mains voltages (115/230 V AC) without manual adjustment, facilitating worldwide deployment.
• Hold-Up Function: Maintains stable output for ≥20 ms during power dips or outages, preventing system crashes and data corruption.

2. Comprehensive Protection & Safety

• Multi-Layer Protection: Integrates overcurrent, short-circuit, and overvoltage protection to safeguard the power supply and connected modules.
• Voltage Monitoring: Continuously monitors input and output voltages; triggers a fault signal if thresholds are breached, enabling rapid troubleshooting.
• Galvanic Isolation: High-voltage isolation between input and output ensures operator safety and protects sensitive control circuitry from mains-borne transients.

3. Advanced Diagnostics & Monitoring

• Visual Status Feedback: Front-panel LEDs provide immediate visual indication of normal operation (green) or fault conditions (red).
• Diagnostic Data Logging: On-board EEPROM stores fault logs and operational data, supporting predictive maintenance and root-cause analysis.
• System Integration: Fault signals are communicated to the AC800F CPU, triggering system alarms and enabling automated fault response sequences.

4. Robust Industrial Design

• EMC Filtering: Integrated input filter suppresses electromagnetic interference, ensuring reliable operation in electrically noisy industrial environments.
• Compact Form Factor: Optimized dimensions for the AC800F rack, minimizing space usage while maximizing cooling efficiency.
• High MTBF: Designed for long-term, continuous operation with a Mean Time Between Failures (MTBF) exceeding 80,000 hours in typical industrial conditions.

Application Scenarios

• Process Control in Oil & Gas: Powers AC800F DCS controllers in refineries, pipelines, and offshore platforms for critical process monitoring and control.
• Power Generation & Distribution: Ensures reliable operation of control systems in thermal power plants, hydroelectric facilities, and substations.
• Chemical & Petrochemical Industry: Provides stable power for safety instrumented systems (SIS) and process control in chemical plants and petrochemical refineries.
• Water & Wastewater Treatment: Supports SCADA and DCS systems in water treatment plants for pump control, filtration, and distribution management.
• Manufacturing & Automotive: Powers automation controllers in assembly lines, material handling systems, and quality control processes.
• Pharmaceutical & Food Processing: Ensures uninterrupted operation of regulatory-compliant control systems in sterile manufacturing environments.
• Mining & Metals: Delivers reliable power to control systems in harsh mining operations and metal processing facilities.

Unique Advantages

• Dedicated System Compatibility: Exclusively designed for ABB AC800F / Freelance DCS, ensuring seamless integration and optimal performance.
• Uninterrupted Operation: 20 ms hold-up time prevents data loss and system downtime during transient power disturbances.
• Simplified Maintenance: Diagnostic LEDs and EEPROM data logging reduce troubleshooting time and minimize maintenance costs.
• Global Versatility: Wide input voltage range eliminates the need for external transformers, simplifying installation across different regions.
• Enhanced System Safety: Comprehensive protection features prevent damage to expensive controller modules, reducing total cost of ownership.
