Product Short Description
Product Introduction

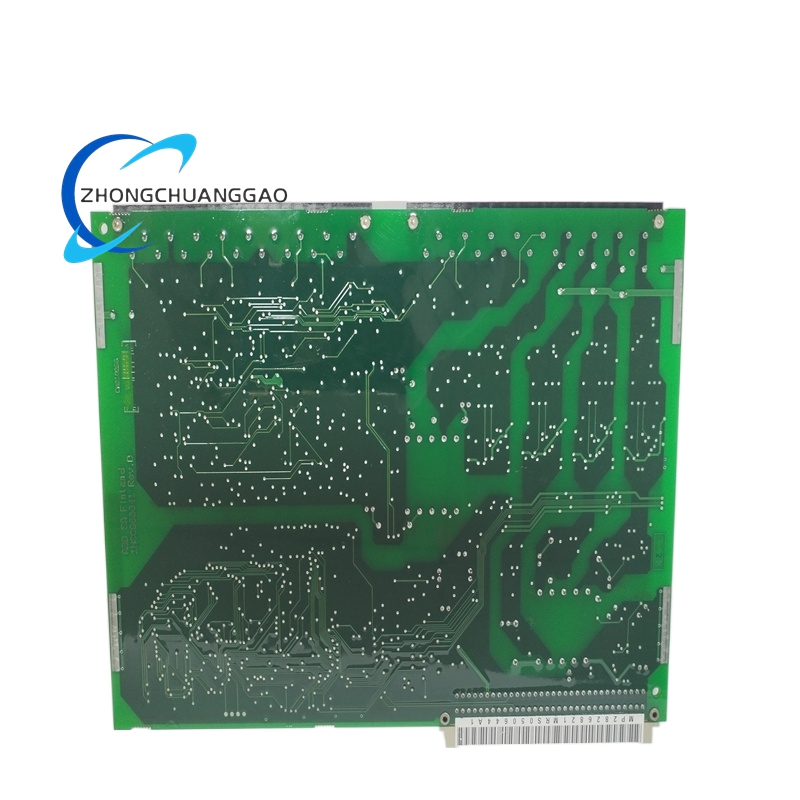

The ABB 1MRS050644, designated as RTD1, is a high‑precision analogue input module designed for ABB’s Distributed Control Systems (DCS) and industrial automation platforms. It specializes in acquiring and converting analogue process signals—primarily resistance temperature detectors (RTDs), 4–20 mA current loops, and 0–10 V voltage signals—into high‑resolution digital data for real‑time monitoring, control, and analysis. Built for industrial environments, this module delivers reliable, isolated signal conversion with exceptional accuracy and noise immunity, serving as a critical interface between field sensors and control systems.
Description
Technical Specifications
Electrical Parameters
- Input Channels: 4 configurable channels
- Input Types:
- RTD: 100 Ω platinum (3‑wire configuration), measuring 0 °C to +400 °C
- Current: 4–20 mA DC
- Voltage: 0–10 V DC
- Resolution: 16‑bit (including sign bit)
- Accuracy: ≤ 0.1% full‑scale (FS)
- Sampling Rate: 100 samples per second
- Common‑Mode Rejection: ≥ 90 dB (0–50 Hz)
- Isolation Voltage: Galvanic isolation between input and system circuits
- Power Supply: 24 V DC (nominal)
- Power Consumption: Low‑power design
- Response Time: Fast signal conversion for real‑time process control
Mechanical & Environmental
- Dimensions: 330 mm × 240 mm × 24 mm
- Weight: Approximately 0.24 kg
- Mounting: Modular rack‑mount for ABB DCS systems
- Operating Temperature: -25 °C to +70 °C
- Storage Temperature: -40 °C to +85 °C
- Humidity: 5–95% RH (non‑condensing)
- EMC Compliance: Surge protection and high immunity; meets ANSI C37.90 standards
- Certifications: CE, IEC 61810, industrial safety approvals
Key Features
- Multi‑Signal Compatibility: Supports RTD, current, and voltage inputs on a single module, reducing hardware complexity.
- High‑Precision Conversion: 16‑bit resolution and 0.1% FS accuracy ensure precise measurement of critical process parameters.
- Galvanic Isolation: Protects control systems from field‑side voltage transients and ground loops.
- Superior Noise Immunity: High common‑mode rejection and EMC compliance for stable operation in electrically noisy industrial environments.
- Modular & Compact Design: Space‑efficient form factor for easy integration into ABB DCS racks.
- Plug‑and‑Play Installation: Simplifies setup, replacement, and maintenance in industrial control systems.
- Wide Temperature Range: Operates reliably in extreme industrial conditions.
- Long‑Term Stability: Industrial‑grade components ensure consistent performance over extended operational lifespans.
Application Scenarios
- Distributed Control Systems (DCS): Primary analogue input for ABB DCS platforms in process industries.
- Temperature Monitoring: Precise RTD‑based temperature measurement in reactors, furnaces, pipelines, and storage tanks.
- Process Automation: Acquisition of pressure, flow, level, and analytical signals (4–20 mA / 0–10 V) in manufacturing lines.
- Power Generation & Distribution: Monitoring of generator winding temperatures, transformer oil temperatures, and substation equipment parameters.
- Oil & Gas, Petrochemical: Safe, accurate signal acquisition in hazardous and remote process locations.
- Chemical & Pharmaceutical: Precise process parameter control for batch and continuous production systems.
- Water & Wastewater: Monitoring of flow rates, pH levels, and pressure in treatment plants and distribution networks.
- Metallurgy & Mining: Temperature and process signal measurement in high‑temperature and harsh mining environments.
