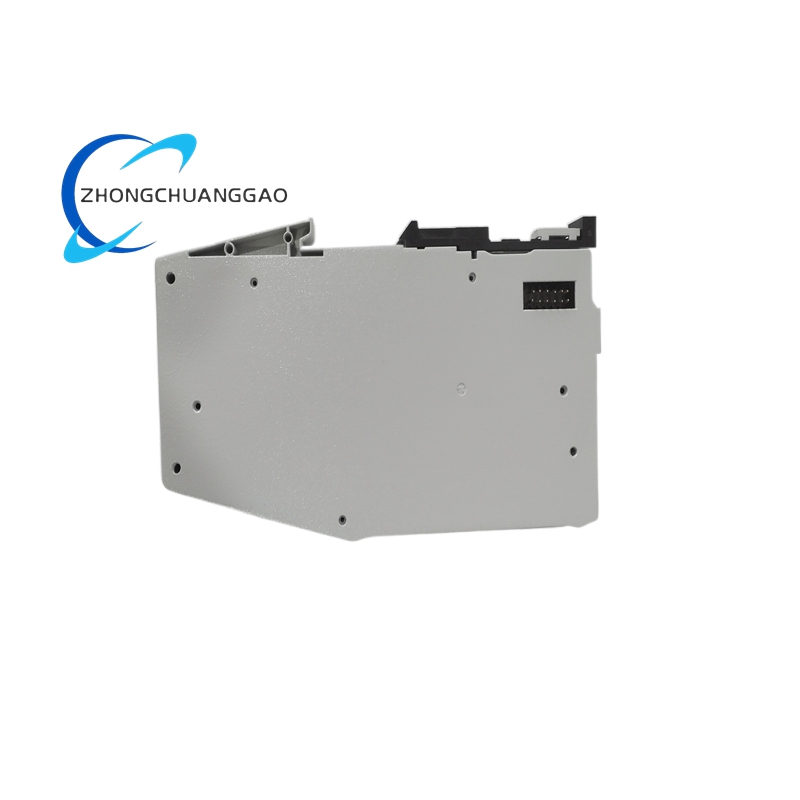

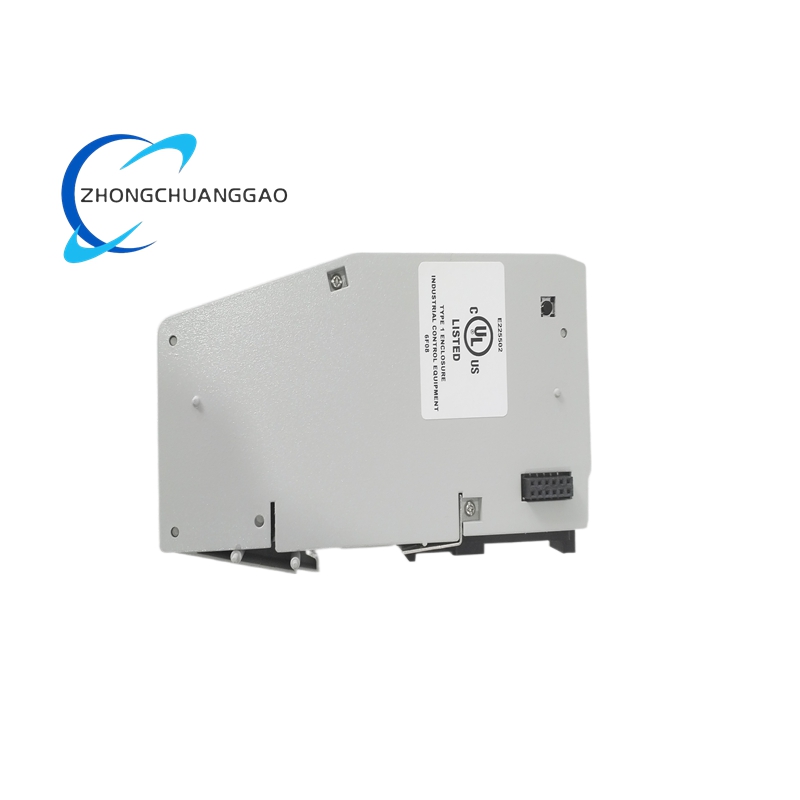

The ABB RIO600 is a modular, DIN‑rail‑mounted remote input/output unit designed to expand the digital and analog I/O capacity of ABB’s Relion® series protection and control relays, and to provide dedicated I/O for the COM600 substation automation gatewayeero. It enables seamless IEC 61850 and Modbus TCP communication between field signals and upper‑level control systems, simplifying substation wiring and enabling distributed I/O architectureseero. The unit integrates advanced measurement, fault detection, and communication functions, making it suitable for both substation automation and grid automation applicationsABB.
Description
Technical Specifications
System Architecture
- Modular Design: Stackable modules on standard DIN rail; minimum configuration includes power supply, communication, and I/O modules
- Mounting: DIN‑rail mounting (EN 50022)
- Protection Class: IP20 (finger‑safe)
- Dimensions (per module): Width 51 mm, Height 145.5 mm, Depth 99 mm
- Weight (per module): Approx. 235 g
- Operating Temperature: -40 °C to +70 °C
- Storage Temperature: -40 °C to +85 °C
- Altitude: Up to 4000 m
Power Supply Modules
- PSMH (High‑Voltage): 85–264 V AC/DC
- PSML (Low‑Voltage): 24–48 V DC
- Power Consumption: < 10 W per module
Communication Modules (LECM)
- Interfaces: Galvanic RJ‑45 (10/100 Mbps) or optical LC multimode fiber Etherneteero
- Protocols: IEC 61850 Edition 1/2 (GOOSE, MMS), Modbus TCP, DNP3 (optional)eero
- Redundancy: HSR/PRP support for zero‑recovery‑time network redundancy
- Time Synchronization: IEEE 1588 v2 (PTP)
- Performance: Meets IEC 61850 Type 1A, Class P1 requirementsABB
I/O Module Types
| Module Type | Key Specifications |
|---|---|
| DIM8H/DIM8L | 8 optically isolated binary inputs; high‑voltage (110–250 V) or low‑voltage (24–48 V) rangeseero |
| DOM4 | 4 potential‑free output contacts; 250 V AC/DC, 5 A resistive loadeero |
| RTD4 | 4 isolated channels for RTD (Pt100, Pt250, Ni100, Ni120, Ni250) and 0–20 mA analog inputseero |
| AOM4 | 4 isolated analog outputs; configurable 0–20 mA or 4–20 mAeero |
| SIM8F | 3‑phase voltage and current sensor inputs; supports ABB lightweight sensorseero |
| SIM4F | 3‑phase current sensor inputs onlyeero |
| SCM8H/SCM8L | Smart control module with 4 inputs + 4 fast outputs; supports breaker/disconnector control |
Measurement & Accuracy
- Voltage: ±0.5% of reading
- Current: ±0.5% of reading
- Frequency: ±0.01 Hz
- Power/energy: Class 0.5 accuracy
Core Functions & Features
1. Flexible I/O Expansion
- Modular Scalability: Mix and match up to 12 I/O modules for custom configurations (digital, analog, sensor, RTD)
- Optical Isolation: All I/O channels feature galvanic isolation (2.5 kV) for noise immunity and safetyeero
- Distributed I/O: Deploy I/O directly in switchgear bays, reducing control room wiring complexityeero
2. Advanced Grid Automation Functions
- Fault Passage Indication (FPI): Directional fault detection for MV networks; reports via GOOSE/Modbus TCPABB
- Multi‑Frequency Admittance (MFA) Earth Fault Detection: High‑sensitivity detection of high‑ohmic, transient, and intermittent earth faults in compensated/isolated networksABB
- Power Quality Monitoring: Measures harmonics, flicker, and unbalance for grid health assessmentABB
- Standalone Operation: Functions as an autonomous FPI and metering unit without a host relayeero
3. Seamless Communication & Integration
- IEC 61850 Native Support: Full compliance with Edition 2; process bus (9‑2 LE) compatibilityeero
- WebHMI Interface: Browser‑based access for monitoring, configuration, and diagnostics without dedicated softwareABB
- PCM600 Compatibility: Full configuration, logic programming, and commissioning via ABB’s PCM600 tool
- Event & Disturbance Recording: Stores up to 10,000 events and 50 disturbance records in COMTRADE format
4. Reliability & Diagnostics
- Continuous Self‑Supervision: Monitors power, communication, and I/O module health
- LED Status Indicators: Per‑module LEDs for power, communication, and I/O status
- Hot‑Swappable Modules: Replace modules without powering down the entire unit
- Compliance: IEC 60255, IEC 61850, UL, and CSA certified
Application Scenarios
- Substation Automation: Distributed I/O for Relion® relays (REM615, REU615, etc.) and COM600 gateway in primary/secondary substationseero
- MV Switchgear Integration: Embedded I/O for circuit breakers, disconnectors, and earthing switches in air‑insulated or gas‑insulated switchgear
- Grid Automation: Fault passage indication and power monitoring in distribution networks with high penetration of renewable energy
- Industrial Power Systems: I/O expansion for protection and control in data centers, refineries, and manufacturing plants
- Renewable Energy Plants: Voltage/current monitoring and fault detection for solar/wind farms and microgrids
- Retrofit Projects: Upgrade legacy hardwired systems to digital IEC 61850 architectures with minimal disruption
Unique Advantages
- All‑in‑One Solution: Combines I/O expansion, measurement, fault detection, and communication in a single unit
- Future‑Ready: Full IEC 61850 Edition 2 support for digital substation interoperability
- Cost Efficiency: Reduces wiring, cabinet space, and installation time compared to traditional hardwired systems
- Versatility: Adapts to utility, industrial, and renewable energy applications with configurable I/O and functions
