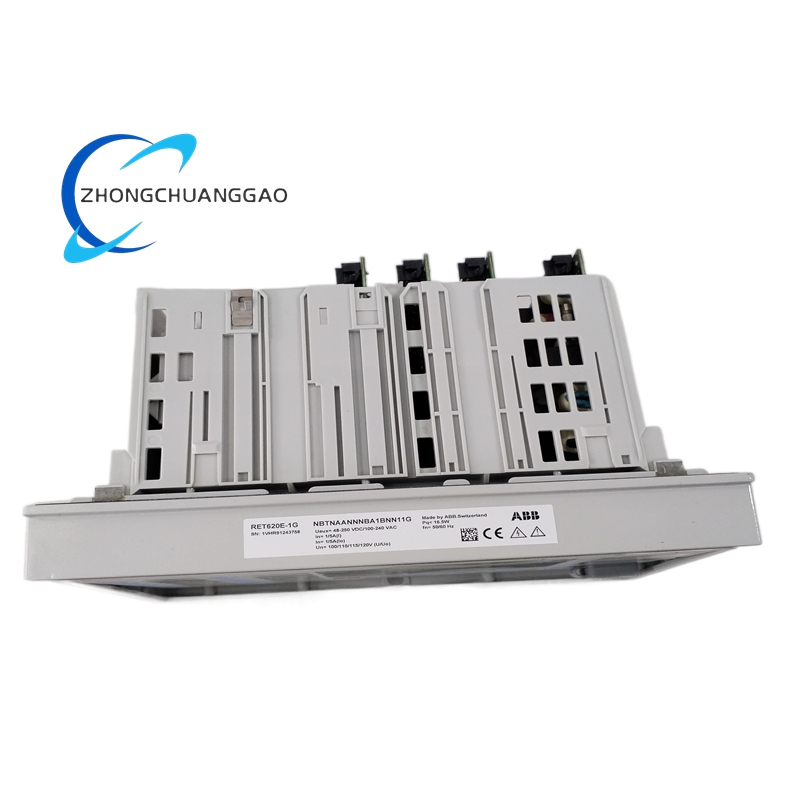

ABB RET620E-1G Transformer Protection and Control IED

Description

Technical Specifications

General Specifications

• Product Family: ABB Relion® 620 SeriesABB
• Application: Two‑winding power transformers (including step‑up transformers and generator‑transformer units)ABB
• Design: Withdrawable plug‑in unit for easy installation, testing, and maintenanceABB
• Display: Large graphical user interface (GUI) with customizable single‑line diagrams (SLDs), accessible locally or via web‑browser‑based HMIABB
• Operating Voltage: Typically 110/220 V AC/DC (configurable)
• Dimensions: Standard panel‑mount form factor (compatible with 19‑inch racks)
• Environmental Rating: Suitable for indoor and outdoor industrial environments (IP54 for front panel)

Protection & Measurement Inputs

• Current Inputs: 6× current transformer (CT) inputs (5 A or 1 A nominal, programmable) for differential and overcurrent protection
• Voltage Inputs: 4× voltage transformer (VT) inputs for voltage, frequency, and power measurement
• Neutral Earthing Support: High‑impedance and numerical low‑impedance restricted earth‑fault (REF) principlesABB
• RTD Inputs: Up to 14 RTD inputs for transformer winding and oil temperature monitoring
• Analog Inputs: Up to 5 mA inputs for additional analog monitoring (e.g., pressure, level)

Communication Interfaces

• Primary Protocol: Native support for IEC 61850 Edition 1 & 2 (including GOOSE messaging, IEC 61850‑9‑2 LE, and redundancy protocols HSR/PRP)ABB
• Secondary Protocols: Modbus, DNP3, IEC 60870‑5‑103ABB
• Time Synchronization: IEEE 1588 V2 (PTP), SNTP, IRIG‑B for high‑accuracy time stampingABB
• Ethernet Ports: Redundant Ethernet ports for reliable substation communication

Output & Control

• Digital Outputs: Configurable relay outputs for circuit breaker control, alarm signaling, and interlocking
• Control Functions: Supports circuit breaker tripping/closing, tap changer control, and programmable logic control (PLC) functions
• Response Time: Fast differential protection operating time (< 20 ms) for rapid fault isolationABB

Key Features

Advanced Protection Functions

• Transformer Differential Protection: High‑speed, stable differential protection with excellent inrush current restraint to prevent maloperation during transformer energizationABB.
• Overcurrent & Earth Fault Protection: Multi‑stage overcurrent, directional overcurrent, and restricted earth‑fault protection for winding and feeder faultsABB.
• Thermal Protection: Continuous thermal overload monitoring based on transformer thermal model and RTD inputs.
• Voltage & Frequency Protection: Overvoltage, undervoltage, overfrequency, and underfrequency protection for system stability.
• Arc Flash Protection (Optional): Integrated arc detection for fast fault clearing in switchgear compartmentsABB.

Control & Regulation Capabilities

• Automatic Voltage Regulation (AVR): Closed‑loop control for motor‑driven on‑load tap changers to maintain stable output voltageABB.
• Tap Changer Control: Manual and automatic tap selection with blocking logic for safe operation.
• Synchrocheck & Reclosing: Integrated synchrocheck function for safe paralleling and programmable autoreclosing logic.
• Load Shedding: Programmable load shedding schemes to prevent system collapse during overload conditions.

Monitoring & Diagnostics

• Real‑Time Metering: Precision measurement of phase currents, voltages, active/reactive power, energy, power factor, and frequency.
• Condition Monitoring: Continuous monitoring of transformer temperatures, tap changer position, and oil parameters (via analog inputs).
• Event & Fault Recording: High‑resolution disturbance recording (oscillography) and event logging for post‑fault analysis.
• Self‑Diagnostics: Built‑in self‑test functions for hardware and software integrity, with alarm outputs for abnormal conditions.

Communication & Integration

• IEC 61850 Compliance: Full support for digital substation communication, enabling seamless integration with SCADA systems and other IEDsABB.
• Redundant Communication: HSR/PRP and RSTP ring network support for zero‑switchover communication redundancy.
• Remote Access: Web‑based HMI and remote configuration for engineering, monitoring, and maintenance without local accessABB.

Design & Usability

• Modular & Scalable: Flexible I/O configuration and support for remote I/O (RIO600) expansion.
• User‑Friendly Interface: Intuitive graphical display with customizable SLDs for clear system visualizationABB.
• Easy Maintenance: Withdrawable design allows for fast replacement and testing without de‑energizing the entire bayABB.

Application Scenarios

• Utility Power Distribution Networks: Protection and control for distribution transformers in primary and secondary substations.
• Industrial Power Systems: Transformer protection in manufacturing plants, refineries, chemical facilities, and large commercial complexes.
• Power Generation Plants: Generator‑transformer block protection in thermal, hydro, and wind power plants.
• Renewable Energy Integration: Step‑up transformer protection for wind farms and solar photovoltaic (PV) power plants.
• Urban & Rural Grids: Suitable for both radial and meshed distribution networks with various neutral earthing schemes.
• Digital Substations: Core component in IEC 61850‑based digital substation automation systems for improved grid reliability and efficiency.
