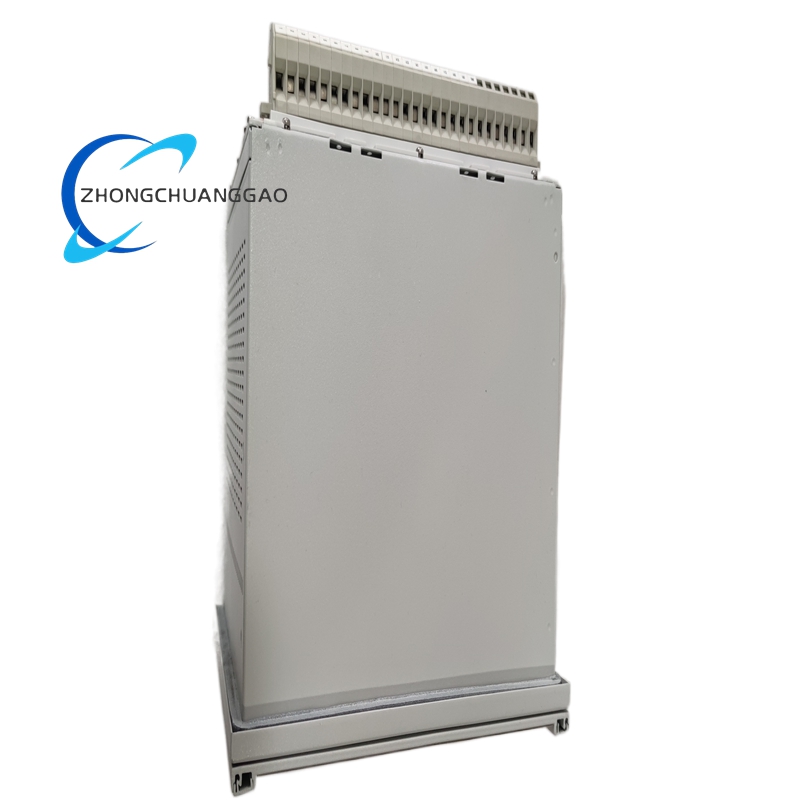

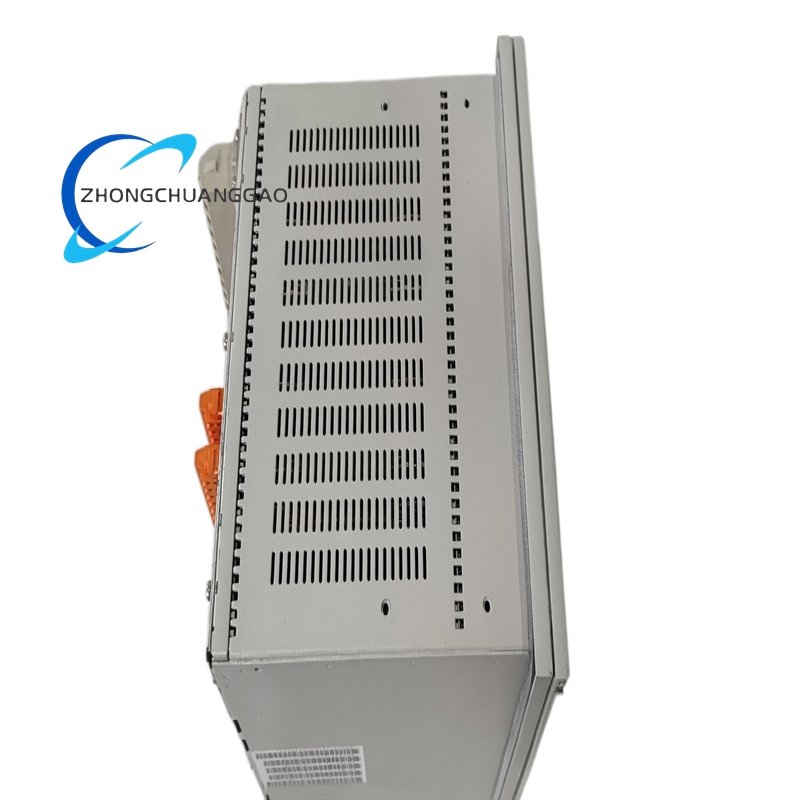

The ABB REM543BM215AAAB is a dedicated, high‑performance intelligent electronic device (IED) from ABB’s REM 543 series, engineered for comprehensive protection, control, measurement, and condition monitoring of rotating electrical machinery. It serves as the primary protection system for small‑to‑medium power generators (diesel, hydro, steam) and large medium‑voltage synchronous/asynchronous motors in power plants, industrial facilities, and marine environments. This terminal integrates advanced protection algorithms, robust I/O, programmable logic, and flexible communication in a compact, industrial‑grade package, ensuring reliable operation in harsh conditions. It supports seamless integration with legacy and modern control systems, making it ideal for critical rotating machine applications requiring selective protection and advanced diagnostics.
Description
Technical Specifications
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Model | REM543BM215AAAB |
| Product Type | Rotating Machine (Generator/Motor) Protection Terminal |
| Application | Generators (small‑medium power), large MV synchronous/asynchronous motors |
| Rated Frequency | 50 Hz / 60 Hz |
| Auxiliary Power Supply | 24–250 V DC / 110–240 V AC ±20%; universal input |
| Power Consumption | < 15 W (typical) |
| Processor | Multi‑core DSP for real‑time protection and control |
| Analog Inputs | 6 high‑precision AC inputs (3 phase currents + 1 residual current + 2 phase voltages); configurable for 1 A / 5 A CTs |
| Digital Inputs | 15 galvanically isolated dry‑contact inputs |
| Digital Outputs | 12 configurable relay outputs (trip, alarm, control) |
| Optional I/O | RTD/mA module for temperature monitoring; analog outputs for process control |
| Communication Interfaces | RS‑485, SPA bus, LON bus; optional Ethernet (IEC 61850 via SPA‑ZC 400 adapter) |
| Supported Protocols | Modbus RTU, IEC 60870‑5‑103, SPA, LON; IEC 61850 Ed.1 (optional) |
| Time Synchronization | Internal clock, IRIG‑B, SNTP |
| HMI | Large graphical LCD display; detachable for flexible mounting; programmable LEDs and pushbuttons |
| Operating Temperature | -25 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95% (non‑condensing) |
| Ingress Protection | IP20 (terminal area), IP40 (front panel) |
| Mounting | Panel or 19‑inch rack mounting |
| Dimensions | Compact industrial form factor |
| Weight | Approx. 2.5 kg |
| Certifications | CE, IEC 61000, RoHS, KEMA, DNV (marine/offshore) |
| MTBF | ≥ 150,000 hours |
Functional Features
Comprehensive Rotating Machine Protection
- Short‑Circuit & Earth‑Fault Protection: Selective phase overcurrent (50/51), residual overcurrent (50N/51N), and negative‑sequence overcurrent protection for stator faults.
- Thermal & Temperature Protection: Real‑time stator thermal modeling; optional RTD monitoring for winding, bearing, and ambient temperatures.
- Over/Under Excitation Protection: Protects generators from over‑excitation and under‑excitation conditions.
- Voltage & Frequency Protection: Overvoltage (59), undervoltage (27), overfrequency (81O), underfrequency (81U), and rate‑of‑change‑of‑frequency (ROCOF) protection.
- Motor‑Specific Protection: Stall protection, cumulative start‑up counter, phase discontinuity, and unbalanced load protection for motor start‑up and operation.
- Generator Motoring Protection: Detects reverse power flow to prevent generator motoring damage.
- Under‑Impedance Protection: Protects against stator winding faults and abnormal operating conditions.
- Breaker Failure Protection (CBFP): Initiates backup tripping for main breaker fault clearance failure.
- Synchro‑Check: Verifies voltage, phase angle, and frequency for safe generator synchronization.
Control & Automation
- Local/Remote Control: Manual and SCADA‑based control of circuit breakers, disconnectors, and earthing switches.
- Programmable Logic (PLC): User‑configurable logic for custom interlocking, automation sequences, and control logic.
- Setting Groups: 4 independent setting groups for quick adaptation to operating modes.
- Breaker Condition Monitoring: Trip counters, wear monitoring, and maintenance alarms.
- Interlocking Logic: Prevents unsafe operating conditions via configurable interlocks.
Measurement & Monitoring
- Precision Measurements: High‑accuracy measurement of phase currents, voltages, power (active/reactive/apparent), energy, power factor, frequency, and sequence components.
- Event & Disturbance Recording: 5,000 sequence‑of‑events (SOE) logs with microsecond timestamps; COMTRADE‑format disturbance recording for post‑fault analysis.
- Condition Monitoring: Continuous monitoring of machine health, including temperature, vibration (via optional modules), and performance trends.
- Self‑Supervision: Internal diagnostics for hardware/software faults with alarm generation.
- CT/VT Supervision: Detects secondary circuit faults and blocks protection to prevent misoperation.
Communication & Integration
- Multi‑Protocol Support: SPA bus, LON bus, Modbus RTU, and IEC 60870‑5‑103 for SCADA integration.
- IEC 61850 Compatibility: Optional support via SPA‑ZC 400 adapter for digital substation integration.
- LON Interbay Communication: Minimizes hardwiring between machine terminals via peer‑to‑peer communication.
- Remote Access: Web‑based and local HMI for real‑time monitoring, configuration, and diagnostics.
Reliability & Durability
- EMC Compliance: Meets strict IEC 61000 standards for electromagnetic immunity.
- Galvanic Isolation: Full isolation between analog inputs, digital I/O, and communication ports.
- Marine Certification: DNV approval for shipboard and offshore applications.
- Industrial‑Grade Design: Withstands extreme temperatures, humidity, and vibration in harsh environments.
Application Scenarios
Power Generation Plants
- Generator Protection: Primary protection for small‑to‑medium diesel, hydro, and steam generators and generator‑transformer units.
- Auxiliary Motors: Protection for large MV auxiliary motors in power plants (pumps, fans, mills).
Industrial Facilities
- Large Motor Protection: For critical MV synchronous/asynchronous motors in mining, steel, cement, and pulp & paper industries (crushers, conveyors, compressors).
- Process Industries: Reliable operation in oil refineries, petrochemical plants, and chemical facilities.
Marine & Offshore
- Shipboard Power: DNV‑approved protection for generators and large motors on vessels and offshore platforms.
- Offshore Wind: Protection for wind turbine generators and auxiliary motors in offshore wind farms.
Water & Infrastructure
- Pump Stations: Protection for large MV motors in water treatment and pumping stations.
- Data Centers: Reliable protection for critical backup generators and motors.
