Product Short Description

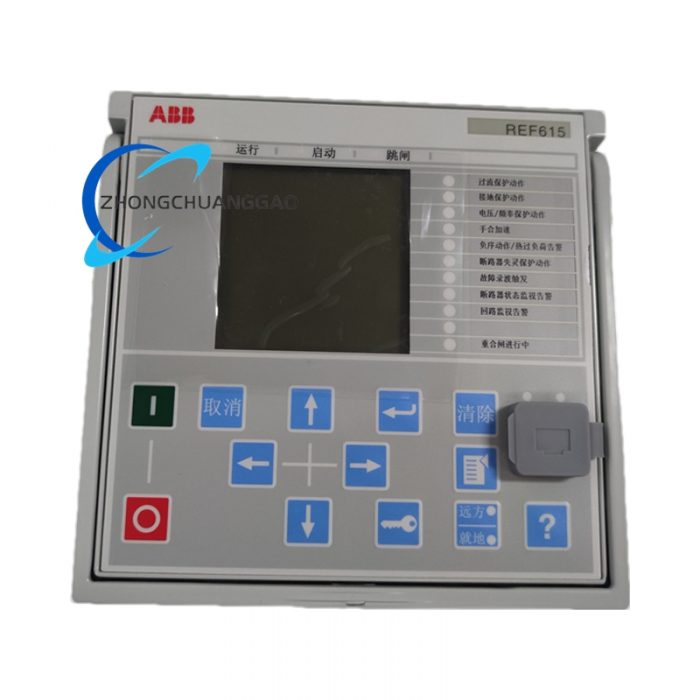

Advanced member of the ABB Relion® 615 series, integrating full-suite protection, measurement, control and communication in a single DIN-rail or panel-mount package.
Technical Specifications
-
Rated supply: 100–240 V AC/DC, 50/60 Hz ±10 %
-
Power consumption: < 8 W
-
Operating temperature: –20 °C … +60 °C (–40 °C … +70 °C option)
-
Protection rating: IP40 (front), IP20 (rear)
Description
-
Dimensions: 226 mm × 160 mm × 280 mm, weight ≈ 1.24 kg
-
Binary inputs: 8–16 optically isolated, 24–250 V DC configurable
-
Binary outputs: 4–8 heavy-duty relays, 8 A continuous / 15 A 3 s / 30 A 0.5 s, trip-circuit supervision included
-
Analog inputs: 4 CT + 3 VT channels, 16-bit A/D, 0.2 S class accuracy
-
Current range: 0.5 A … 5 A (1 A or 5 A CT secondary)
-
Voltage range: 100 V … 690 V AC
-
Frequency range: 45 … 65 Hz
Core Protection & Control Functions
-
Directional / non-directional overcurrent
-
Sensitive earth-fault (multi-frequency admittance method)
-
Under/over-voltage, under/over-frequency
-
Broken-conductor, negative-sequence, thermal overload
-
Auto-reclose and switch-onto-fault logic
-
Circuit-breaker control, interlocking, programmable logic
Communication & Protocols
-
IEC 61850 Ed. 2 + IEC 61850-9-2 LE (sampled values)
-
PRP/HSR seamless redundancy
-
DNP3 (serial & TCP), IEC 60870-5-103, Modbus RTU/TCP
-
Optional Profibus-DP via SPA-ZC 302 adapter
-
Ethernet ports: 2× RJ-45 (10/100 Mbit), 1× front-service USB
Human Interface
-
4.3-inch color LCD with single-line mimic
-
11 programmable LEDs and 5-key keypad
-
Web-based HMI for remote parameterisation & diagnostics
Application Scenarios
-
Public & industrial distribution networks (ring or radial)
-
Feeder protection in substations with distributed generation
-
Motor, transformer and capacitor bank protection
-
SCADA integration in water treatment, oil & gas, mining plants
-
Retrofit upgrade of legacy relays while retaining existing CT/VT wiring
Key Advantages
-
Single device covers complete feeder protection set, reducing panel space and wiring
-
Hot-swap pluggable design simplifies commissioning and maintenance
-
Self-diagnosis with event log and waveform capture for post-fault analysis
-
Rugged hardware tested to IEC 60255 standards for harsh environments
