Product Short Description

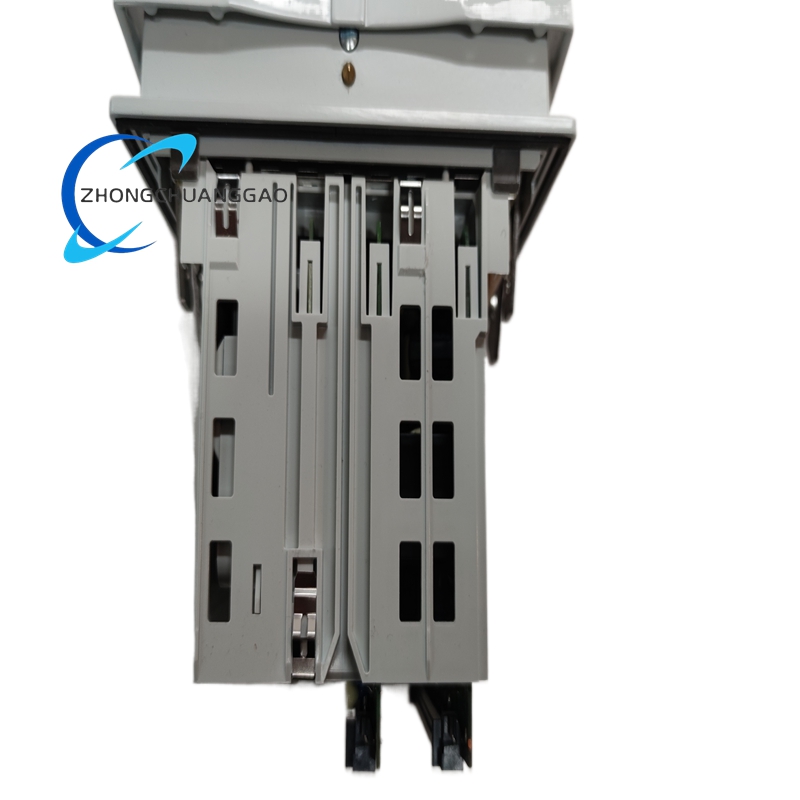

The ABB REF615 HBFEAEAGNDA1ABA1XG is a high-performance, compact intelligent electronic device (IED) from ABB’s Relion® 615 series, designed for comprehensive protection, control, measurement, and supervision of medium‑voltage (3 kV–35 kV) overhead lines and cable feedersABB. It serves as a primary protection solution for radial, looped, and meshed distribution networks, including systems with distributed generation, across isolated neutral, resistance‑earthed, compensated, and solidly‑earthed configurationseero. The HBFEAEAGNDA1ABA1XG suffix denotes a specialized hardware configuration optimized for advanced feeder bay applications, featuring robust I/O, high‑speed communication, and enhanced protection algorithms. Built with a withdrawable plug‑in design, it ensures easy installation, commissioning, and maintenance, while supporting seamless integration into both legacy and modern IEC 61850‑based digital substation automation systemsABB.
Description
Technical Specifications
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Model | REF615 HBFEAEAGNDA1ABA1XG |
| Product Type | Medium‑Voltage Feeder Protection and Control IED |
| Application Voltage | 3 kV–35 kV (medium‑voltage distribution) |
| Rated Frequency | 50 Hz / 60 Hz (user‑selectable) |
| Auxiliary Power Supply | 24–250 V DC / 110–240 V AC ±20%; 50/60 Hz |
| Power Consumption | < 15 W (typical) |
| Processor | High‑speed digital signal processor (DSP) for real‑time protection and control |
| Analog Inputs | 4 high‑precision AC inputs (3 phase currents + 1 residual current); configurable for 1 A / 5 A CTs |
| Digital Inputs | 8 galvanically isolated dry‑contact inputs; 24–250 V DC/AC compatible |
| Digital Outputs | 5 heavy‑duty NO trip contacts; 3 configurable NO/NC signal contacts |
| Communication Interfaces | Ethernet (10/100 Mbps), RS‑485; supports HSR/PRP redundancy |
| Supported Protocols | IEC 61850 Ed.1/Ed.2 (MMS, GOOSE, IEC 61850‑9‑2 LE), IEC 60870‑5‑103, Modbus RTU/TCP, DNP3, Profibus DPV1 |
| Time Synchronization | IEEE 1588 PTP V2, IRIG‑B |
| HMI | Large graphical LCD display; customizable single‑line diagrams (SLDs); local pushbuttons; LED status indicators |
| Operating Temperature | -25 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95% (non‑condensing) |
| Ingress Protection | IP20 (terminal area), IP40 (front panel) |
| Mounting | Withdrawable plug‑in design for 19‑inch rack or panel mounting |
| Dimensions | Compact form factor (standard IED size) |
| Weight | Approx. 3.2 kg |
| Certifications | KEMA type‑test certified, CE, IEC 61000, RoHS, UL |
Functional Features
Comprehensive Protection Functions
- Overcurrent Protection: Four‑stage directional/non‑directional phase overcurrent (50/51) with definite‑time, IDMT, and instantaneous characteristicseero.
- Earth‑Fault Protection: Multi‑frequency admittance‑based sensitive earth‑fault (SEF) protection; directional/non‑directional residual overcurrent (50N/51N) for high selectivityeero.
- Thermal Overload Protection: Real‑time thermal modeling for cable feeders to prevent overheating and insulation degradationeero.
- Voltage & Frequency Protection: Overvoltage (59), undervoltage (27), overfrequency (81O), underfrequency (81U), and rate‑of‑change‑of‑frequency (ROCOF) protection.
- Arc‑Fault Protection (Optional): Three light‑sensor channels for fast arc detection in switchgear compartments; high‑speed tripping to minimize equipment damageeero.
- Breaker Failure Protection (CBFP): Backup tripping initiation for main breaker fault clearance failureeero.
- Auto‑Reclosing: Configurable 1–4 shot multi‑pole auto‑reclose (79) for rapid restoration after transient faults.
- Fault Location: Impedance‑based short‑circuit and earth‑fault location for radial networksABB.
- Phase Discontinuity & Negative Sequence Protection: Detects broken conductors and phase imbalance to protect connected loadseero.
Control & Automation
- Local/Remote Control: Manual and SCADA‑based circuit breaker/isolator control via digital outputs.
- Configurable Logic: User‑programmable logic (PLC‑like) for custom interlocking and automation sequences.
- Setting Groups: 6 independent setting groups for quick adaptation to network operating modes.
- Breaker Condition Monitoring: Trip counters, wear monitoring, and maintenance alarms for predictive upkeep.
Measurement & Monitoring
- Precision Measurements: Accurate measurement of phase currents, residual current, voltages, power (active/reactive/apparent), energy, power factor, and frequency.
- Event & Disturbance Recording: 128 sequence‑of‑events (SOE) logs; 16 fault disturbance records (256 cycles per record) for post‑incident analysis.
- Self‑Supervision: Continuous internal diagnostics with alarm generation for hardware/software faults.
- Role‑Based Access Control: Four‑level authentication (viewer, operator, engineer, administrator) for secure operation.
Communication & Integration
- IEC 61850 Compliance: Full support for MMS, GOOSE, and process bus (IEC 61850‑9‑2 LE) for digital substation interoperabilityABB.
- Redundant Communication: HSR/PRP Ethernet redundancy for reliable substation communicationABB.
- Plug‑and‑Play: Hot‑swap withdrawable design for easy installation and replacementABB.
- Web‑Based HMI: Remote access via web browser for monitoring, configuration, and diagnosticsABB.
Reliability & Durability
- EMC Compliance: Meets strict IEC 61000 standards for immunity to electrical noise.
- Galvanic Isolation: Full isolation between inputs, outputs, and internal circuits to eliminate ground loops.
- Industrial‑Grade Components: Ensures stable operation in extreme temperatures and harsh industrial environments.
Application Scenarios
Utility Distribution Substations
- Feeder Protection: Primary protection for overhead and cable feeders in urban/rural distribution networksABB.
- Compact Substations: Ideal for RMUs, kiosk substations, and space‑constrained switchgear installations.
- Meshed Networks: Directional protection for looped and meshed distribution systems with distributed generationeero.
- Busbar Backup: Fast overcurrent and arc‑fault backup protection for medium‑voltage busbarseero.
Industrial Power Systems
- Manufacturing: Protection for medium‑voltage motor feeders, conveyor systems, and process power circuits.
- Mining & Minerals: Reliable operation in underground and surface mine distribution networks.
- Oil & Gas: Certified for refineries, petrochemical plants, and offshore platforms.
- Marine & Offshore: DNV‑approved protection for shipboard and offshore wind farm power systems.
Power Generation & Renewable Energy
- Auxiliary Power: Protection for medium‑voltage auxiliary feeders in thermal, hydro, and renewable power plants.
- Wind/Solar Farms: Integration into medium‑voltage collector grids for wind and solar installations.
- Distributed Generation: Protection for grid‑connected DG units (solar, wind, microturbines)eero.
Infrastructure & Critical Facilities
- Water & Wastewater: Protection for pump stations and treatment plant medium‑voltage distribution.
- Data Centers: Reliable feeder protection for mission‑critical power systems.
- Railways & Transportation: Protection for traction power distribution networks.
