Product Short Description

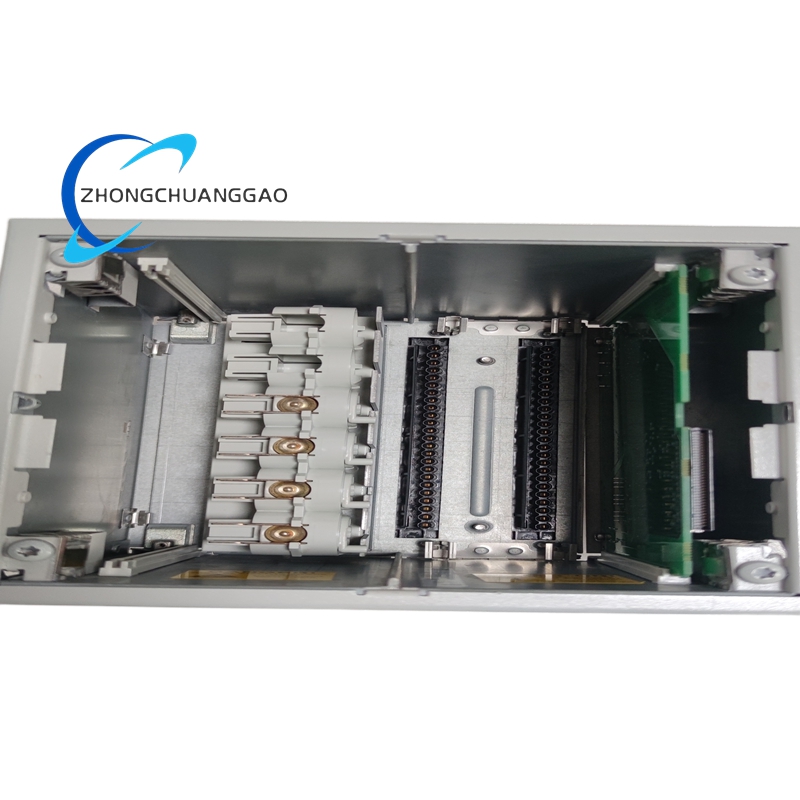

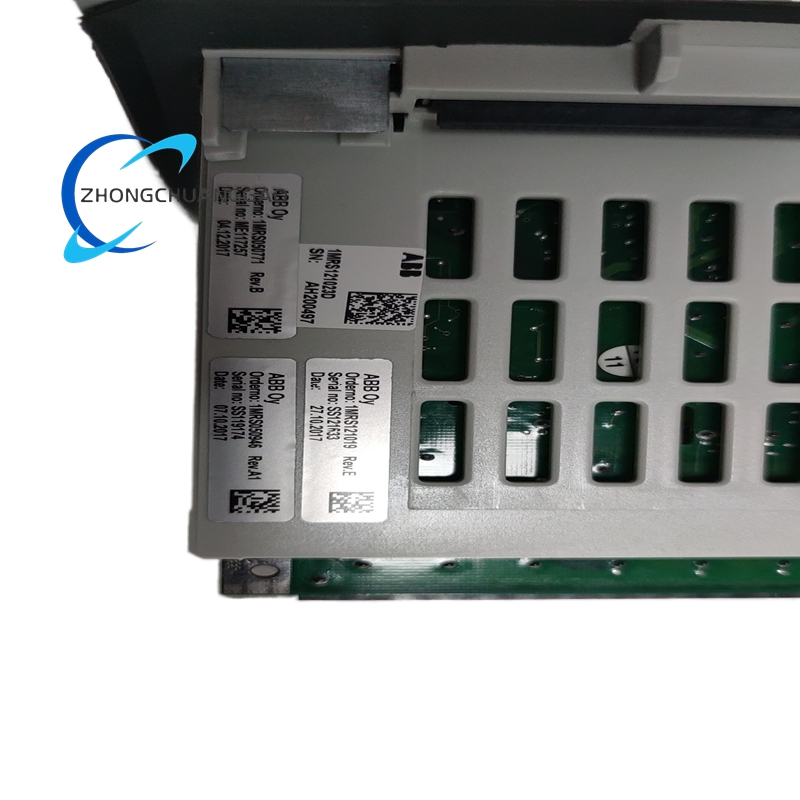

The ABB REF610C55HCNG is a compact, multifunction protection, control, measurement, and monitoring device belonging to the ABB Relion® 610 series. It is purpose-built for medium-voltage (3 kV–35 kV) feeders in resistance-earthed and solidly-earthed power distribution systemsABB. The C55HCNG suffix denotes a specific hardware configuration optimized for standard feeder bay applications, featuring robust I/O capacity, advanced communication interfaces, and enhanced protection logic tailored for utility and industrial environments. Designed for new installations and retrofits, its plug-in architecture ensures seamless integration into switchgear, simplifying installation, commissioning, and maintenance. The device delivers fast, reliable fault detection, rapid isolation, and seamless integration with legacy and modern substation automation systems, making it a cornerstone solution for distribution networks worldwideABB.
Description
Technical Specifications
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Model | REF610C55HCNG |
| Product Type | Medium-Voltage Feeder Protection and Control IED |
| Application Voltage | 3 kV–35 kV (medium-voltage distribution) |
| Auxiliary Power Supply | 24–240 V DC / 110–240 V AC ±20%; 50/60 Hz |
| Power Consumption | < 15 W (typical) |
| Processor | High-speed industrial microcontroller for real-time protection and control |
| Analog Inputs | 4 high-precision AC current inputs; configurable for 1 A / 5 A CTs |
| Rated Frequency | User-selectable 50 Hz / 60 Hz |
| Digital Inputs | 5 galvanically isolated dry-contact inputs; 24–250 V DC/AC compatible |
| Digital Outputs | 3 heavy-duty NO trip contacts; 2 configurable NO/NC signal contacts (expandable to 5) |
| Communication Interfaces | RS-485, SPA bus; optional Ethernet for IEC 61850 via external adapter |
| Supported Protocols | IEC 61850 (MMS/GOOSE), IEC 60870-5-103, Modbus RTU, Profibus DPV1, DNP3, SPA |
| HMI | Alphanumeric LCD (2×16 characters); 6 pushbuttons; LED indicators for status, alarms, and trips |
| Operating Temperature | -25 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95% (non-condensing) |
| Ingress Protection | IP20 (terminal area), IP40 (front panel) |
| Mounting | Plug-in design for 19-inch rack or panel mounting |
| Dimensions | Standard relay form factor (compact, space-saving) |
| Weight | Approx. 3 kg |
| Certifications | KEMA type-tested, DNV (marine/offshore), CE, IEC 61000, RoHS |
Functional Features
Comprehensive Protection Functions
- Overcurrent Protection: Three-stage phase overcurrent (50/51) with definite-time, IDMT, or instantaneous characteristics for cable and overhead line feeders.
- Earth-Fault Protection: Non-directional residual overcurrent (50N/51N) with low-set and high-set elements for resistance-earthed and solidly-earthed networksABB.
- Thermal Overload Protection: Real-time thermal modeling for cable feeders to prevent overheating and insulation damage.
- Phase Discontinuity Protection: Detects broken conductors and phase imbalance to protect connected equipmentABB.
- Arc-Fault Protection (Optional): Fast arc detection via lens sensors with automatic reference adjustment; supports remote light signal detection for busbar arc protection.
- Breaker Failure Protection (CBFP): Initiates backup tripping if the main circuit breaker fails to clear a fault.
- Auto-Reclosing: Configurable 1–3 shot auto-reclose (79) for rapid restoration after transient faults.
- Trip Circuit Supervision: Continuous monitoring of breaker trip circuits with alarm signaling for fault detection.
- Trip Lockout: Prevents repeated tripping after severe faults to protect equipment.
Control & Automation
- Local/Remote Control: Manual and SCADA-based control of circuit breakers via digital outputs.
- Configurable Logic: User-programmable logic for custom interlocking and automation sequences.
- Setting Groups: Multiple independent setting groups for quick adaptation to network operating modes.
- Breaker Condition Monitoring: Built-in trip counters to track breaker operation cycles for predictive maintenance.
Measurement & Monitoring
- Precision Measurements: Accurate measurement of phase currents, residual current, frequency, and power parameters.
- Event & Disturbance Recording: Stores 32 sequence-of-events (SOE) logs and 8 fault disturbance records (128 cycles per record) for post-incident analysis.
- Real-Time Status Monitoring: LED indicators and remote signaling for operational status, alarms, and trip events.
- Self-Supervision: Continuous system monitoring to detect internal faults and generate alarms for rapid troubleshooting.
Communication & Integration
- Multi-Protocol Support: Seamless integration with legacy and modern SCADA systems via industry-standard protocolsABB.
- IEC 61850 Compatibility: Supports digital substation communication for MMS, GOOSE, and process bus integration via optional adapters.
- Plug-and-Play Design: Hot-swap plug-in construction for easy installation, commissioning, and maintenanceABB.
- Time Synchronization: Accepts external time signals for accurate event time-stamping.
Reliability & Durability
- Marine/Offshore Certified: DNV-approved for use in harsh marine and offshore environmentsABB.
- EMC Compliance: Meets strict IEC 61000 standards for immunity to electrical noise in industrial and utility settings.
- Galvanic Isolation: Full isolation between inputs, outputs, and internal electronics to eliminate ground loops and interference.
- Long-Term Stability: Industrial-grade components ensure reliable operation in extreme temperatures and high humidity.
Application Scenarios
Utility Distribution Substations
- Feeder Protection: Primary protection for overhead and cable feeders in urban and rural distribution networksABB.
- Compact Substations: Ideal for small distribution substations, ring main units (RMUs), and kiosk installations due to its compact size.
- Busbar Backup Protection: Provides fast arc-fault and overcurrent backup protection for medium-voltage busbars.
Industrial Power Systems
- Manufacturing Facilities: Protection for medium-voltage motor feeders, conveyor systems, and process power circuits.
- Mining & Minerals: Reliable operation in underground and surface mine power distribution systems.
- Oil & Gas: Certified for use in refineries, petrochemical plants, and offshore platforms.
- Marine & Offshore: DNV-approved protection for shipboard power systems and offshore wind farm substationsABB.
Power Generation Plants
- Auxiliary Power Systems: Protection for medium-voltage auxiliary feeders and motor control centers in thermal, hydro, and renewable power plants.
- Generator Backup Protection: Serves as backup overcurrent and earth-fault protection for generator output circuits.
Infrastructure & Critical Facilities
- Water & Wastewater: Protection for pump stations and treatment plant medium-voltage distribution.
- Data Centers: Reliable feeder protection for mission-critical power distribution systems.
- Renewable Energy: Integration into wind and solar farm medium-voltage collector grids.
