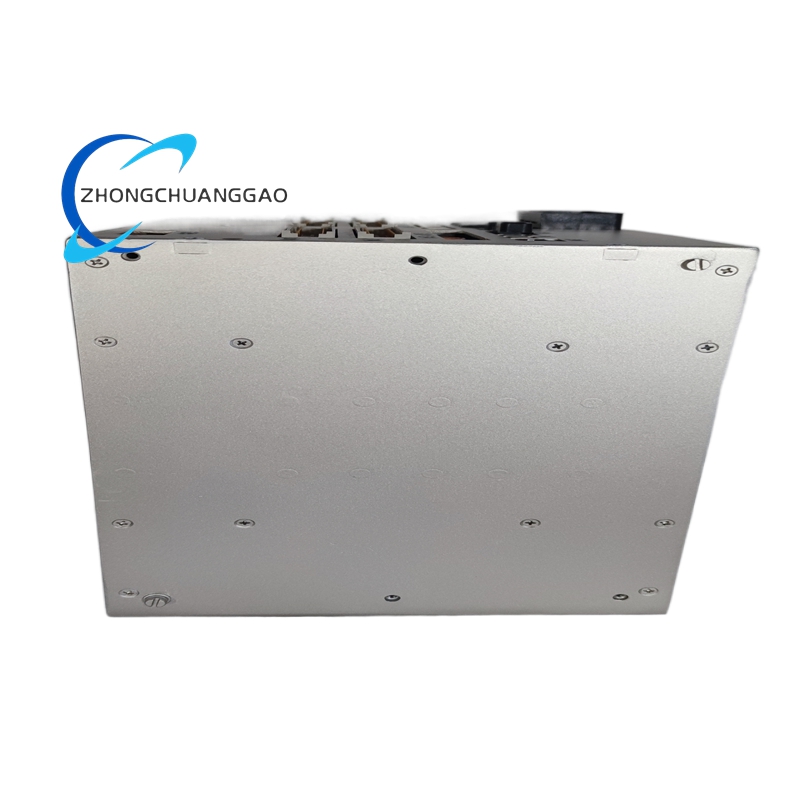

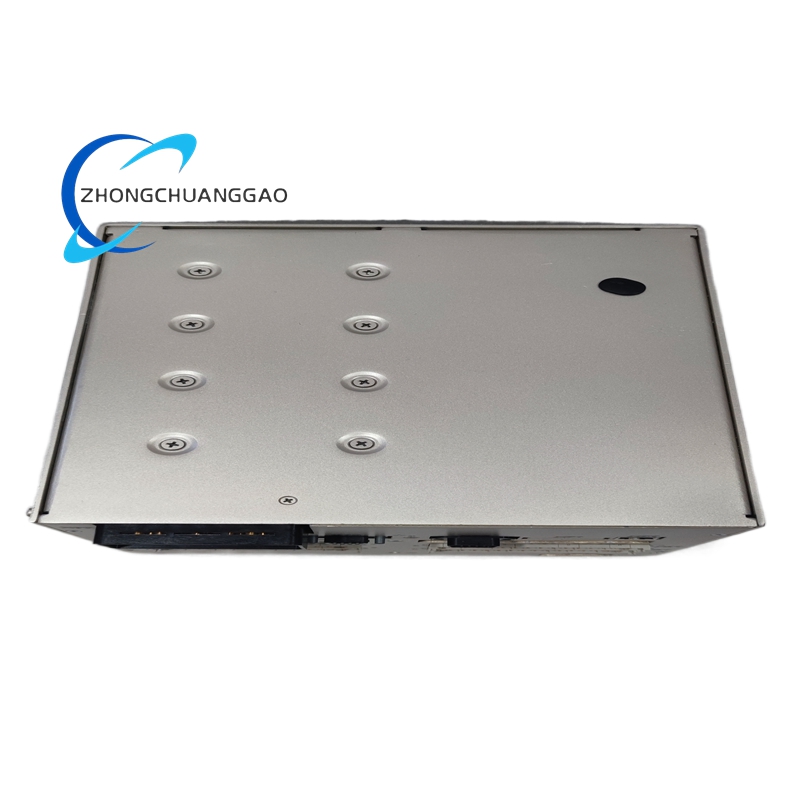

ABB REF542PLUS 1VCF752000 Multifunction Feeder Protection and Control IED

Description

Technical Specifications

Core System & Performance

• Processor Architecture: Dual-processor design – DSP for protection/measurement; MCU for control logic
• Sampling Rate: 32 samples per power cycle (1.2 kHz at 50 Hz)
• Measurement Accuracy: Current ±1%; Voltage ±1%; Time ±1%
• Operating Frequency: 50/60 Hz (45–65 Hz range)
• Memory: Non-volatile flash memory for parameters, event logs, and fault records
• Fault Recording: Up to 8 analog channels + 32 binary signals; 1–5 seconds total recording (pre/post-fault configurable)eero

Power Supply

• Nominal Voltage: 24–250 V DC / 24–230 V AC (±20%)
• Power Consumption: Max 15 W
• Isolation: Full galvanic isolation between power, I/O, and communication circuits

Analog Inputs

• Phase Current: 3 channels, 1 A or 5 A nominal (CT secondary)
• Phase Voltage: 3 channels, 100 V / 110 V / 220 V nominal (VT secondary)
• Residual Current: 1 channel (1 A/5 A) for earth fault detection
• Input Impedance: High-impedance design for CT/VT compatibility

Digital I/O

• Digital Inputs: 16 galvanically isolated 24 V DC inputs (configurable)
• Relay Outputs: 8 programmable SPDT relay outputs (250 V AC / 30 V DC, 5 A)
• Auxiliary I/O: Expandable via optional modules for additional inputs/outputs

Communication Interfaces

• Standard: RS-485 (Modbus RTU), CANopen
• Optional: IEC 61850-8-1 (MMS, GOOSE), Profibus DP, DNP3.0, Modbus TCP
• Ethernet: 10/100 Mbps port for web server and network connectivityeero
• Time Sync: Optical input for IRIG-B or PTP synchronizationeero

Physical & Environmental

• Dimensions: 320 mm (W) × 240 mm (H) × 100 mm (D)
• Weight: Approx. 3.5 kg
• Mounting: Panel-mounted (19-inch rack compatible)
• Protection Rating: IP54 (front), IP20 (terminals)
• Operating Temperature: -10 °C to +55 °C (continuous)
• Storage Temperature: -40 °C to +70 °C
• Humidity: 5%–95% RH (non-condensing)
• EMC Compliance: IEC 61000 series, EN 50081-2, CISPR 11
• Certifications: CE, UL, IEC 60255, IEEE C37.90, RoHS

Functional Features

Comprehensive Protection Functions

• Overcurrent Protection: 3-stage phase/residual overcurrent (instantaneous, definite time, IDMT); directional options (67/67N)eero
• Earth Fault Protection: Sensitive earth fault, directional earth fault, restricted earth fault (87N)eero
• Voltage/Frequency Protection: Over/undervoltage (27/59), over/underfrequency, rate-of-change of frequencyeero
• Distance Protection: Multi-zone (up to 8 zones) impedance protection for MV feeders; 30–35 ms typical operation time
• Thermal Protection: Cable/motor/transformer thermal overload (49) with thermal memoryeero
• Motor Protection: Locked rotor (51LR), start supervision (51MS), unbalanced load (46), start count limitation (66)eero
• Breaker Protection: Breaker failure protection, auto-reclose (1–3 shots, programmable)

Advanced Control & Automation

• Local/Remote Control: Circuit breaker, disconnector, and earthing switch control via HMI or communication
• Interlocking Logic: Programmable station/bay interlocking for safe operation
• Synchronization: Synchrocheck and voltage matching for breaker closing
• Sequence Control: Predefined control sequences for automated switching operations

Monitoring & Diagnostics

• Real-Time Measurement: Phase current/voltage, power, energy, power factor, and frequency monitoring
• Event Logging: 10,000+ event records with time stamping (1 ms resolution)
• Fault Location: Integrated fault locator for distance protection zoneseero
• Self-Diagnostics: Continuous hardware/software monitoring; alarm on abnormal conditions
• Disturbance Recording: Configurable pre/post-fault waveform capture for fault analysiseero

Flexibility & Integration

• Modular Design: Expandable I/O and communication via plug-in modules
• Software Licensing: Protection functions activated via software licenses (Basic, Multi, Differential, Distance)eero
• IEC 61850 Compliance: Full support for digital substation integration (MMS, GOOSE, Sampled Values)
• Compatibility: Seamless integration with ABB System 800xA and third-party SCADA/DCS systems
• User Configuration: Intuitive setup via PC tools (e.g., PCM600) or local HMI

Reliability & Cybersecurity

• High MTBF: Industrial-grade design for long-term, reliable operation
• Redundancy: Optional communication redundancy for critical applications
• Access Control: Multi-level user access with password protection
• Data Integrity: Encrypted communication and secure parameter storage

Application Scenarios

Power Distribution Substations

• MV Feeders: Protection and control for overhead lines and underground cables in distribution networks
• Distribution Transformers: Comprehensive protection for distribution transformers (up to 40.5 kV)
• Capacitor Banks: Overcurrent, overvoltage, and unbalance protection for reactive power compensation
• Sectionalizers/Reclosers: Automated control and protection for grid sectionalizing devices

Industrial Power Systems

• Manufacturing Plants: Motor control and protection for pumps, fans, conveyors, and compressors
• Mining Operations: Heavy-duty protection for mining equipment and underground power distribution
• Oil & Gas Facilities: Refineries, offshore platforms, and pipeline pumping stations
• Water & Wastewater: Pump stations, treatment plants, and water distribution networks

Renewable Energy Integration

• Wind Farms: Feeder protection and grid connection control for wind turbine generators
• Solar Parks: Inverter and grid interface protection for photovoltaic systems
• Energy Storage: Battery energy storage systems (BESS) grid integration and protection

Specialized Applications

• Railway Electrification: Traction power substations and feeder protection
• Marine & Offshore: Shipboard power systems and offshore installations
• Data Centers: Uninterrupted power supply (UPS) and backup power systems
• Test & Commissioning: Power system testing, commissioning, and fault simulation platforms
