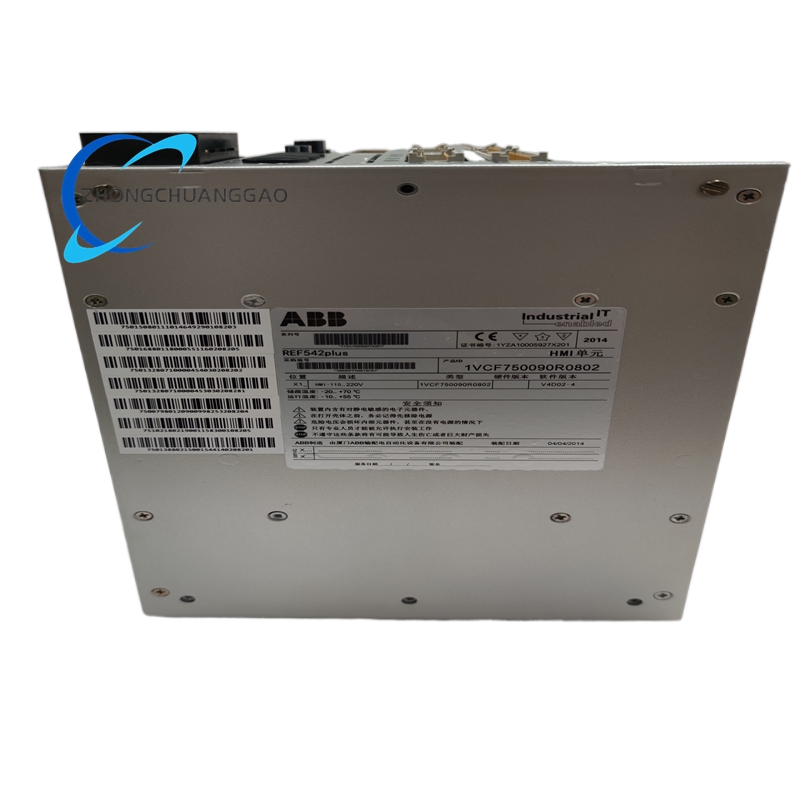

ABB REF542plus 1VCF752000 Feeder Protection and Control Terminal

Description

Technical Specifications

• Product Series: ABB Ability™ Relion® 650 series, REF 542plus family
• Application Scope: Medium-voltage power systems (3 kV to 36 kV)
• Rated Current Range: 5 A to 6300 A
• Control Supply Voltage: 220 V AC/DC (universal wide-range input)
• Operating Frequency: 50/60 Hz
• Dimensions: 264 mm (Length) × 216 mm (Width) × 72 mm (Depth)
• Weight: Approximately 0.9 kg to 1.0 kg
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity Range: 5%–95% RH (non-condensing)
• Protection Class: IP20 (dust protection, protection against accidental contact)
• Communication Interfaces: Ethernet, RS-232, RS-485, fiber optic ports
• Supported Protocols: IEC 61850, Modbus RTU/TCP, DNP3.0, SPA Bus
• Configuration Software: PCM600 (Protection and Control Manager)
• User Interface: Front-mounted LCD display and multi-status LED indicators
• I/O Capacity: Configurable digital and analog I/O channels for flexible system integration
• Measurement Accuracy: ±0.5% for voltage, current, power, and energy parameters
• Fault Response Time: Less than 10 ms for over-current and short-circuit faults
• Certifications: CE, UL, IEC 60255, IEC 61850 compliant

Functional Features

• All-In-One Protection Functions: Provides complete multi-type protection including over-current, short-circuit, over-voltage, under-voltage, phase loss, frequency deviation, synchronization, differential, and earth-fault protection, covering all critical medium-voltage equipment failure scenarios.
• High-Precision Real-Time Measurement: Continuously captures and calculates 12+ key electrical parameters such as current, voltage, active/reactive power, power factor, and energy consumption with ±0.5% high accuracy, supporting precise system monitoring and energy management.
• Intelligent Control & Circuit Breaker Management: Delivers automated and remote control of circuit breakers based on pre-set protection logic or external commands, including trip, close, and interlock functions, ensuring reliable equipment operation.
• Advanced Self-Diagnosis & Fault Recording: Integrates full self-diagnostic capabilities to detect internal anomalies; logs comprehensive event records, fault waveforms, and disturbance data for rapid troubleshooting, post-fault analysis, and system optimization.
• Flexible Communication & SCADA Integration: Equipped with multiple communication interfaces and supports mainstream industrial protocols, enabling seamless connection to SCADA systems, substation automation platforms, and third-party devices for remote monitoring, parameter configuration, and data transmission.
• Modular & Compact Design: Features a modular, plug-and-play architecture for easy installation, expansion, and replacement; its compact form factor optimizes cabinet space utilization, ideal for high-density switchgear installations.
• User-Friendly Operation & Configuration: Offers a front-panel LCD and LED interface for clear status visualization; supports local operation and remote PC configuration via PCM600 software, simplifying parameter setting and system commissioning.
• Extreme Environmental Durability: Constructed with industrial-grade components and anti-interference circuits, it withstands high temperatures, humidity, dust, and strong electromagnetic interference, ensuring stable performance in harsh industrial and substation environments.

Application Scenarios

• Medium-Voltage Substation Automation:
  • Primary and secondary distribution substations for feeder protection, control, and monitoring.
  • Transformer protection including differential and over-current protection in power distribution networks.
  • Circuit breaker control and switchgear management to ensure safe substation operation.
• Industrial Power Distribution:
  • Protection and control of medium-voltage motors in manufacturing, mining, and processing industries.
  • Electrical system safety for large-scale industrial plants, ensuring stable power supply to production lines.
  • Critical load protection in petrochemical, steel, and cement plants to prevent production interruptions.
• Utility & Power Grid Systems:
  • Feeder protection in urban and rural power distribution grids to isolate faults quickly and enhance power supply reliability.
  • Renewable energy grid integration (wind farms, solar power plants) for generator and grid connection protection.
  • Substation modernization and smart grid upgrades to support digital monitoring and automation.
• Commercial & Infrastructure Facilities:
  • Medium-voltage power system protection in airports, railway stations, and data centers.
  • Building electrical distribution control for large commercial complexes and high-rise buildings.
  • Water treatment plant pump and motor protection to maintain continuous utility operations.
• Marine & Offshore Installations:
  • Medium-voltage equipment protection on offshore platforms and vessels, complying with marine environmental standards.
  • Safe power distribution control for marine propulsion and auxiliary systems.
