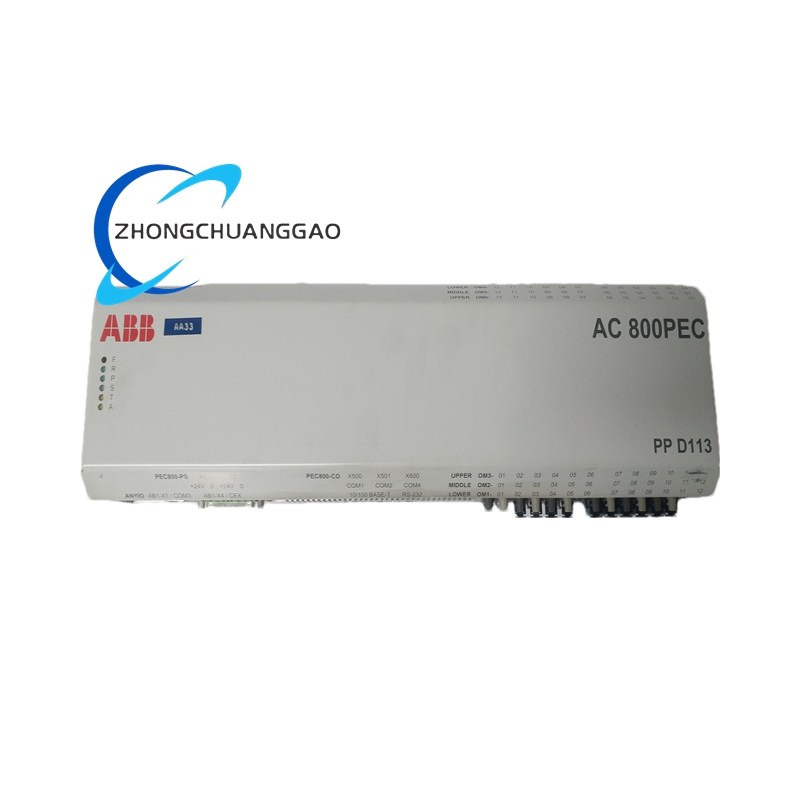

Product Short Description
Technical Specifications
-
Processor: 750 MHz PowerPC RISC, floating-point unit
-
Memory: 1 GB DDR3 (real-time) + 4 GB Flash (persistent)
-
Communication:
– 2 × RS-422 (10 Mbps)
– 1 × CANopen (1 Mbps)
– Optional EtherCAT / PROFIBUS DP via expansion
– Up to 36 bidirectional fibre-optic PowerLinks for power-converter I/O
Description
-
I/O (base configuration):
– 8 high-speed digital inputs / 6 digital outputs
– 4 × 16-bit analog outputs (±10 V / 0-20 mA)
– 2-4 × 16-bit analog inputs (±10 V / ±5 V) -
Power: 24 V DC (9-36 V range), redundant inputs, surge protection
– Consumption ≤ 30 W -
Environment: 0 °C … +55 °C (–40 °C … +85 °C variant); 5 % … 95 % RH non-condensing; IP20
-
Mechanical: DIN-rail or 3U rack mount, 127 × 76 × 178 mm, 0.4 kg
Functional Features
-
Hard real-time OS, control cycle down to 0.1 ms
-
Integrated dynamic bridge balancing & independent field-current regulator for synchronous generators
-
High-speed data logger (oscilloscope function) for line voltage, current and fault analysis
-
On-board data pre-processing engine for edge analytics and OPC UA cloud connectivity
-
Self-diagnostics, watchdog, hot-swap capability
Applications
-
Generator excitation control in thermal, hydro and wind power plants
-
Transformer tap-changer and protection coordination
-
Distributed energy resource management (PV, BESS)
-
High-voltage drive systems: rolling mills, compressors, mine hoists
-
Grid-forming inverters and micro-grid stability management
