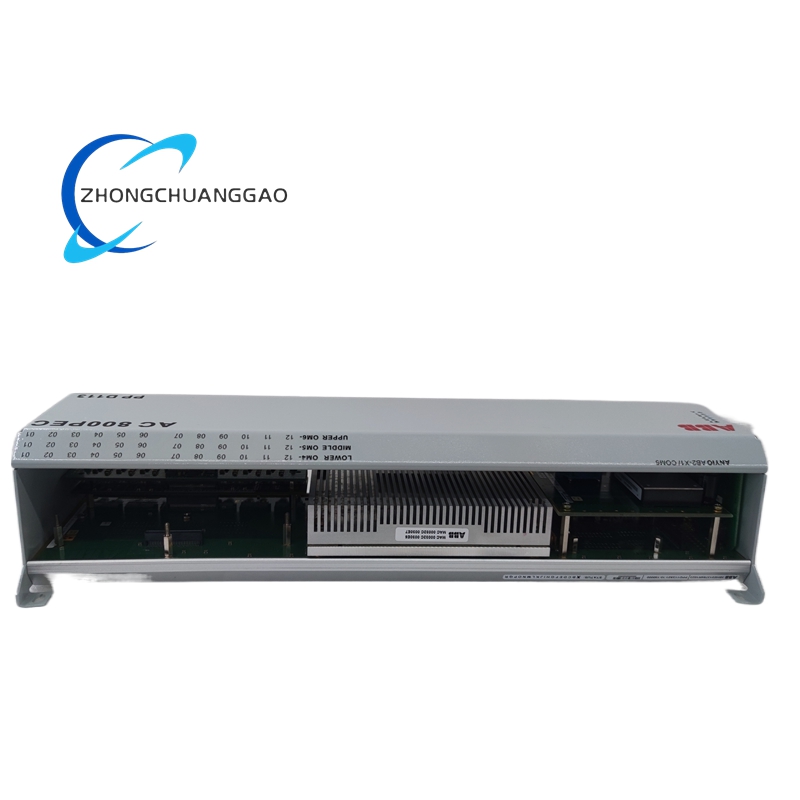

ABB PPD113A01-10-150000 3BHE013784R1023

Description

Technical Specifications

Core Performance

• Processor: High-speed 32-bit RISC industrial processor for real-time power electronics control
• Control Cycle: Microsecond-level execution for high-speed power conversion loops
• Memory: Integrated high-speed RAM for real-time data processing; non-volatile flash memory for program and configuration storage
• Data Acquisition: High-resolution, high-speed analog and digital I/O for precise power parameter measurement
• Processing Capability: Supports advanced control algorithms (PID, vector control, PWM generation, adaptive control)

Power & Physical

• Power Supply: 24 V DC (18–32 V DC input range)
• Power Consumption: Max. 15 W
• Dimensions: 144 mm × 144 mm × 70 mm (W × H × D)
• Weight: Approx. 0.5 kg
• Mounting: Standard rack-mount for AC 800PEC system subracks
• Protection: IP20 (rear), industrial-grade EMC shielding

Communication Interfaces

• Ethernet: 2 × 10/100 Mbps Ethernet ports (RJ45) for system networking and SCADA integration
• Fieldbus: PROFIBUS DP, PROFINET, Modbus RTU/TCP, and ABB proprietary protocols
• Serial: 1 × RS-232/RS-485 port for legacy device connectivity
• Isolation: Optical isolation (≥ 2.5 kV) for all communication ports
• Protocol Support: OPC UA, IEC 60870-5-104, DNP3 for grid and SCADA compatibility

I/O Specifications

• Analog Inputs: High-speed, high-resolution channels for voltage, current, and power measurement
• Analog Outputs: Precision channels for control signal generation
• Digital Inputs: Fast-response channels for status monitoring and interlock signals
• Digital Outputs: High-current channels for actuator and circuit control
• Signal Isolation: Galvanic isolation between I/O channels and internal circuitry

Environmental & Compliance

• Operating Temperature: -20 °C to +60 °C
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5%–95% RH (non-condensing)
• Vibration/Shock Resistance: 0.7 G RMS / 15 G (11 ms half-sine)
• EMC Compliance: IEC 61000-6-4 (emission), IEC 61000-6-2 (immunity)
• Certifications: CE, UL/cUL 61010-2-201, RoHS, ATEX (optional)

Functional Features

High-Speed Real-Time Control

• Executes power electronics control algorithms with microsecond-level latency for precise regulation of voltage, current, and frequency
• Generates high-resolution PWM signals for efficient power conversion in inverters and converters
• Supports online parameter tuning and firmware updates without system shutdown
• Implements advanced fault detection and protection logic for rapid response to abnormal conditions

Reliability & Redundancy

• Enables hot-standby redundancy with bumpless switchover for continuous operation
• Features battery-backed memory to preserve critical control parameters during power outages
• Built-in self-diagnostics and continuous health monitoring for proactive maintenance
• Industrial-grade design withstands harsh electrical noise, vibration, and temperature fluctuations

Seamless System Integration

• Fully compatible with ABB Control Builder M and AC 800PEC engineering tools for intuitive programming
• Integrates seamlessly with ABB’s power electronic equipment, including ACS drives, UNITROL excitation systems, and PCS converters
• Supports centralized configuration, remote monitoring, and data logging via Ethernet
• Interoperable with third-party SCADA systems and industrial IoT platforms

Advanced Signal Processing

• High-speed data acquisition and processing for real-time power quality analysis
• Implements harmonic compensation and reactive power control algorithms
• Supports multi-variable control for complex power systems
• Provides detailed event logging and time-stamping for compliance and troubleshooting

Scalability & Flexibility

• Modular design allows easy expansion of I/O and communication capabilities
• Software-configurable I/O channels adapt to diverse power electronics applications
• Multi-language support for global deployment
• Compatible with ABB’s lifecycle management services for long-term system support

Application Scenarios

Power Generation & Grid

• Power Plants: Turbine excitation control, generator voltage regulation, and grid synchronization
• Renewable Energy: Solar inverter control, wind turbine converter management, and grid integration
• Grid Stability: Static VAR compensators (SVC), STATCOM, and FACTS devices for voltage and reactive power control
• HVDC Systems: High-voltage direct current transmission control and protection

Industrial Power Electronics

• High-Voltage Drives: Large-scale motor control for pumps, fans, and compressors in process industries
• Metal & Mining: Electric arc furnace control, rolling mill drives, and material handling systems
• Marine & Offshore: Propulsion drives, thruster control, and power management on vessels and platforms
• Pulp & Paper: High-power drive systems for continuous production lines

Specialized Industrial Applications

• Test & Measurement: Power electronics test benches, load banks, and simulation systems
• Data Centers: Uninterruptible power supply (UPS) control and power distribution
• Electric Vehicle Charging: High-power charging infrastructure control and grid interface
• Water Treatment: High-pressure pump drives and process automation
