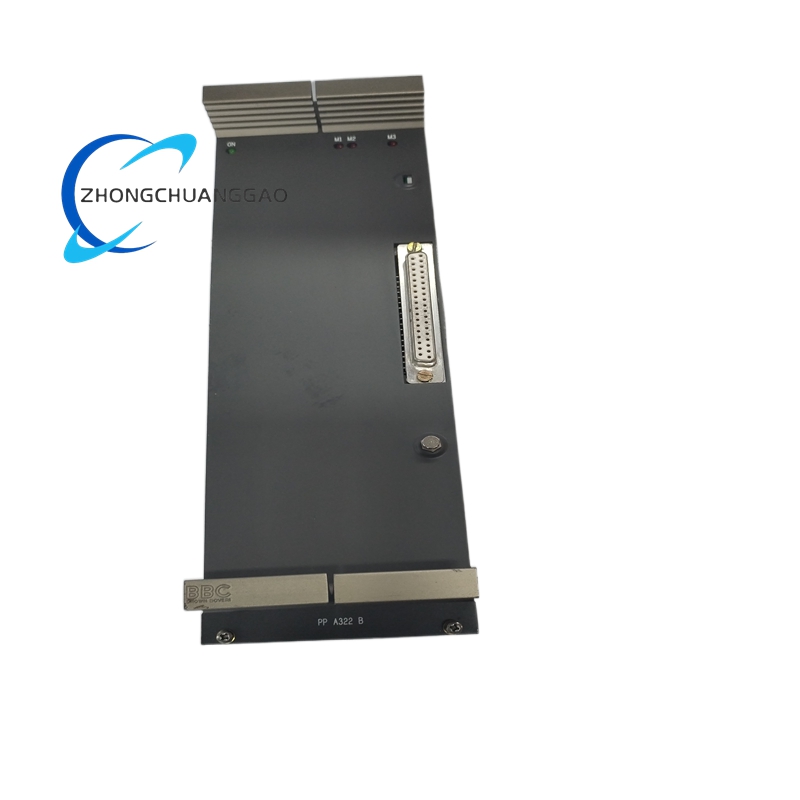

ABB PPA322B HIEE300016R2 Symphony Plus Analog I/O Module

Description

Technical Specifications

Functional Features

High-Density Analog I/O Integration

• 16-Channel Analog Inputs: Supports diverse field signals including voltage, current, thermocouple, and RTD, eliminating the need for external signal conditioners.
• 8-Channel Analog Outputs: Delivers precise control signals to valves, drives, and other actuators for closed-loop process regulation.
• High Resolution: 12-bit conversion ensures accurate representation of process variables, enabling fine-tuned control and reliable data logging.
• Galvanic Isolation: Protects the control system from field-side electrical noise, surges, and ground loops, enhancing signal integrity and system safety.

Advanced Signal Conditioning

• Built-In Signal Processing: Integrates amplification, filtering, and linearization for thermocouple and RTD inputs, ensuring accurate temperature measurement.
• Configurable Input Ranges: Each channel supports multiple signal ranges, configurable via system software for flexible application adaptation.
• Overvoltage Protection: Safeguards module components from transient voltage spikes and wiring errors, preventing hardware damage.
• Cold-Junction Compensation: Automatically compensates for thermocouple cold-junction temperature variations, ensuring precise temperature readings.

Reliable Communication & System Integration

• Symphony Plus Bus Compatibility: Directly connects to Symphony Plus controllers for high-speed, real-time data exchange.
• Multi-Protocol Support: Integrates with third-party systems via Modbus TCP/IP, Profibus DP, and other standard industrial protocols.
• Dual Redundancy Support: Compatible with redundant communication bus configurations for high-availability applications.
• Plug-and-Play Installation: Hot-swappable design allows for module replacement without system shutdown, minimizing downtime.

Industrial-Grade Reliability

• Robust Construction: Industrial-grade components and PCB design withstand harsh environmental conditions including vibration, shock, and temperature extremes.
• EMC Compliance: Meets strict IEC 61000 standards for electromagnetic immunity, ensuring stable operation in electrically noisy industrial environments.
• Long-Term Stability: High-precision components and factory calibration maintain measurement accuracy over extended operational periods.
• Diagnostic Capabilities: Built-in self-diagnostics monitor channel status, communication health, and module performance, enabling proactive maintenance.

Flexible Configuration & Scalability

• Software-Configurable Channels: All input/output parameters are configurable via Symphony Plus engineering tools, eliminating manual hardware adjustments.
• Scalable System Design: Multiple PPA322B modules can be installed in a single rack to expand I/O capacity as system requirements grow.
• Legacy System Compatibility: Integrates with older ABB Symphony systems, protecting existing automation investments.
• Recipe Management: Supports storage and recall of multiple configuration profiles for quick process changeovers.

Application Scenarios

Power Generation

• Thermal Power Plants: Monitors and controls boiler parameters (steam pressure, temperature, water level), turbine performance, and emissions systems.
• Hydroelectric Power Plants: Regulates water flow, turbine speed, and generator output; monitors penstock pressure and reservoir levels.
• Renewable Energy Systems: Controls solar inverter output, wind turbine pitch systems, and battery energy storage systems.

Oil & Gas Industry

• Upstream Operations: Monitors wellhead pressure, temperature, and flow rates; controls safety shutdown systems and pipeline valves.
• Refineries: Regulates reactor temperature, pressure, and feedstock flow; monitors distillation column performance and product quality.
• LNG Facilities: Controls liquefaction processes, cryogenic storage systems, and regasification operations.

Chemical & Petrochemical

• Continuous Process Plants: Manages reactor control, distillation, and separation processes with precise analog monitoring and regulation.
• Batch Processing: Controls mixing, heating, and reaction cycles; monitors pH, conductivity, and chemical composition.
• Specialty Chemicals: Ensures accurate dosing and mixing of raw materials; maintains strict process parameters for product consistency.

Water & Wastewater Treatment

• Water Treatment Plants: Monitors water quality parameters (pH, turbidity, dissolved oxygen); controls chemical dosing pumps and filter backwashing systems.
• Wastewater Facilities: Regulates aeration, sedimentation, and disinfection processes; monitors sludge treatment and disposal systems.
• Desalination Plants: Controls reverse osmosis systems, pressure vessels, and brine disposal operations.

Manufacturing & Processing

• Food & Beverage: Manages pasteurization, mixing, and packaging lines; monitors temperature, pressure, and flow for product safety.
• Pharmaceuticals: Controls GMP-compliant processes including cleanroom environments, batch mixing, and sterilization systems.
• Pulp & Paper: Regulates digester operations, dryer sections, and quality control parameters in high-production environments.
• Metals & Mining: Controls crushing, grinding, and flotation processes; monitors furnace temperature and material handling systems.

Building & Infrastructure

• HVAC Systems: Monitors and controls building heating, ventilation, and air conditioning systems for energy efficiency.
• Data Centers: Regulates cooling systems, power distribution, and environmental monitoring to ensure uninterrupted operation.
• District Energy: Controls heating/cooling distribution networks and central plant operations.
