ABB PP877 3BSE069272R2 Operator Panel

Description

Technical Specifications

Display & Touch

• Display Type: 7‑inch TFT‑LCD (Thin‑Film Transistor Liquid Crystal Display)
• Resolution: 800 × 480 pixels (16:9 widescreen)
• Brightness: 350 cd/m²
• Touch Technology: Resistive touchscreen (Polyester on glass construction)
• Overlay Material: Autoflex industrial‑grade protective film
• Refresh Rate: 60 Hz (flicker‑free visualization)

Hardware & Performance

• Processor: ARM9 (1 GHz) industrial embedded processor
• Main Memory: 512 MB DDR2 RAM
• External Storage: 1 × SD card slot (supports SDHC with latest image loaded)
• Application Storage: Dedicated flash memory for project files and data logging
• Real‑Time Clock (RTC): Integrated, battery‑backed for time‑stamped logs
• Net Weight: Approx. 0.8 kg
• Dimensions: 204 mm × 143 mm × 50 mm (W × H × D)
• Cut‑Out Dimension: 187 mm × 126 mm (panel‑mount)

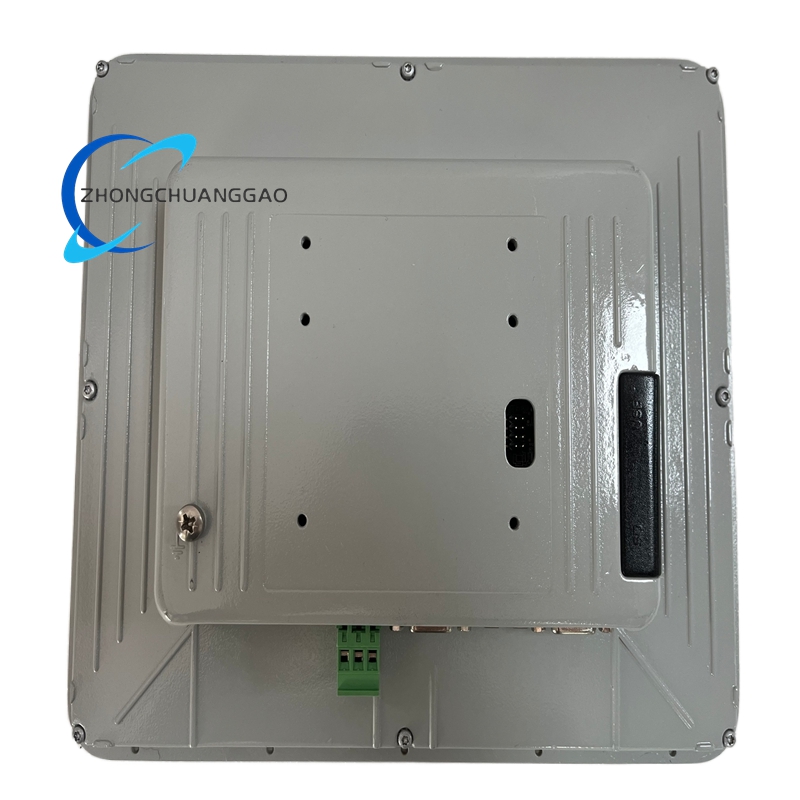

• Mounting: Panel mount (43 mm depth) and VESA 75 × 75 compatibility

Power & Interfaces

• Power Supply: 24 V DC (18–32 V DC input range)
• Power Consumption: Max. 6.0 W

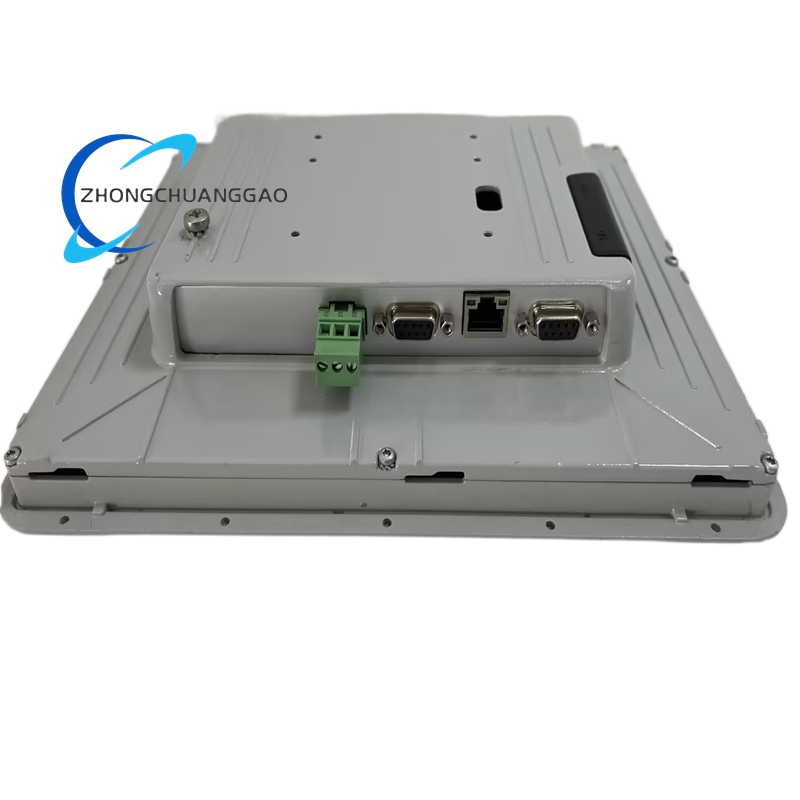

• Communication Interfaces:
  • 1 × Ethernet port (10/100 Mbps, RJ45)
  • 2 × Combined serial ports (RS‑232 / RS‑422 / RS‑485)
  • 1 × USB 2.0 Host port (for configuration, data transfer, or peripherals)
• Isolation: Optical isolation for communication ports (≥ 2.5 kV)
• I/O Expansion: Supports connection to external I/O modules via dedicated adapters

Environmental & Compliance

• Operating Temperature: -10 °C to +60 °C
• Storage Temperature: -20 °C to +70 °C
• Relative Humidity: 5%–85% RH (non‑condensing)
• Front Panel Protection: IP65 (dust‑tight and water resistant)
• Rear Protection: IP20
• EMC Compliance: IEC 61000‑6‑4 (emission) and IEC 61000‑6‑2 (immunity)
• Certifications: CE, UL/cUL 61010‑2‑201, RoHS, WEEE
• Vibration/Shock Resistance: 0.7 G / 10 G

Functional Features

Industrial‑Grade Durability

• Constructed with a powder‑coated aluminum frame and industrial front foil for resistance to vibration, shock, and chemical exposure.
• Fanless thermal design ensures reliable operation in high‑temperature environments without moving parts or maintenance.
• IP65 front protection enables deployment in dusty, moist, or wash‑down environments.

Intuitive & Reliable Operation

• Responsive resistive touchscreen supports accurate input with bare hands or work gloves, ideal for industrial field useeero.
• High‑resolution 7‑inch display delivers clear, detailed process data, trends, alarms, and mimic diagramseero.
• Integrated LED status indicators for power, communication, and fault diagnostics enable quick visual system health checkseero.
• Animated labels and scrolling text efficiently display large volumes of process information in limited screen spaceeero.

Comprehensive Connectivity

• Multi‑protocol support includes Modbus RTU/TCP, PROFIBUS DP, OPC UA, EtherNet/IP, and ABB’s proprietary protocols for seamless integration with AC 800M and System 800xAeero.
• Ethernet, dual serial ports, and USB provide flexible connectivity to legacy and modern field devices, PLCs, and SCADA systemseero.
• Isolated communication ports protect against electrical noise and ground loops, ensuring data integrity in electrically noisy industrial environmentseero.

Advanced System Integration

• Fully compatible with ABB’s Control Builder M and Panel Builder 800 engineering tools for custom HMI development, alarm management, and trend loggingeero.
• Supports centralized configuration, remote monitoring, and software updates via the network, reducing on‑site maintenance effortseero.
• SD card slot facilitates easy backup of configurations, data logging, and offline application deploymenteero.
• Unlimited multi‑language support allows runtime language switching based on tag values, with 8‑language support in the engineering tooleero.

Scalability & Efficiency

• Handles up to 1000 process signals, suitable for small-to-medium automation systemseero.
• Over 400 vector‑based symbols (700 total) enable rapid creation of professional process images and custom interfaceseero.
• Panel Builder 800’s familiar Windows environment accelerates engineering with intuitive navigation and pre‑defined templateseero.

Application Scenarios

Process Industries

• Oil & Gas: Onshore/offshore platforms, refineries, and pipeline control rooms for monitoring distillation, separation, and pumping processeseero.
• Chemical & Pharmaceutical: Reactor control, batch processing, and GMP‑compliant manufacturing lines requiring precise parameter monitoring and adjustmenteero.
• Water & Wastewater: Municipal and industrial treatment plants for pump control, filtration, chemical dosing, and disinfection systemseero.

Manufacturing & Production

• Food & Beverage: Packaging lines, mixing systems, and quality control stations for hygienic and reliable process controleero.
• Automotive: Assembly lines, robotic workcells, and conveyor systems for real‑time machine control and production monitoringeero.
• Pulp & Paper: Pulp digesters, drying machines, and coating lines managing high‑speed, continuous production processeseero.

Power & Energy

• Power Generation: Thermal, hydro, and renewable power plants for turbine control, boiler management, and substation automationeero.
• Grid Distribution: Local control panels in electrical substations for switchgear monitoring and controleero.

Specialized Machinery

• Metal & Mining: Furnaces, rolling mills, and material handling equipment in high‑temperature, high‑vibration environmentseero.
• Machine Tools: CNC machines, presses, and fabrication equipment for precise motion control and process parameter adjustmenteero.
• Marine & Offshore: Shipboard machinery and offshore platforms (marine‑certified variants available)eero.
