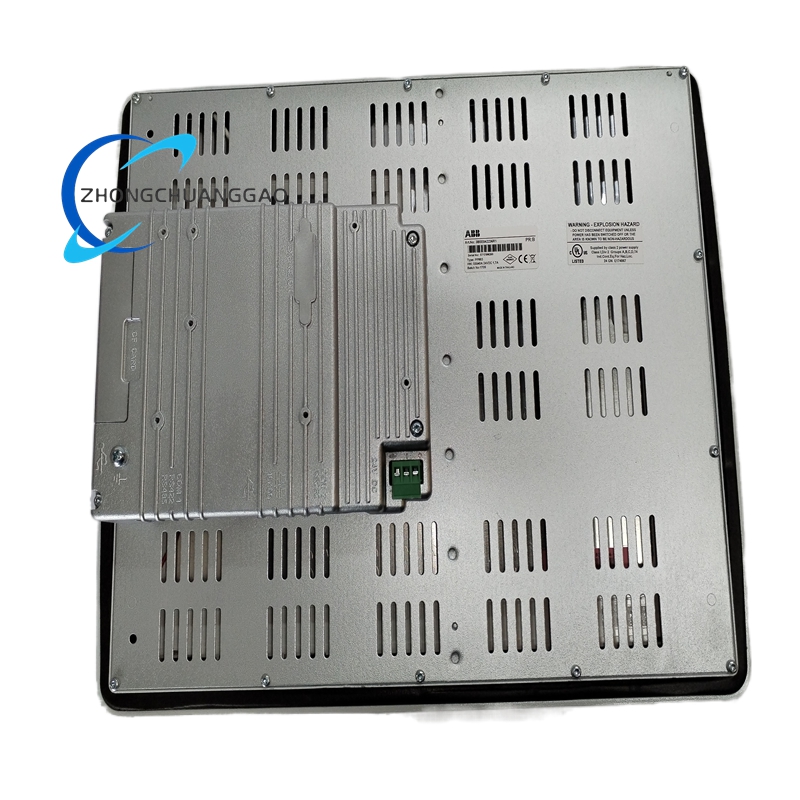

ABB PP865 3BSE042236R1 Panel 800 Operator Panel

Description

Technical Specifications

Functional Features

Superior Visualization & Intuitive Operation

• Large High-Resolution Display: 15-inch 1024×768 XGA TFT screen delivers crisp, detailed visuals for complex process diagrams, trend graphs, alarm lists, and multi-variable monitoring, with 64,000 colors for clear visualization.
• Responsive Touchscreen: Resistive touch technology enables accurate operation with gloved hands, ideal for industrial environments where direct finger contact may be restricted.
• Adjustable Backlight: LED backlight with adjustable brightness ensures optimal visibility in varying lighting conditions, from bright factory floors to dim control rooms.
• Ergonomic Design: Slim profile and optimized screen placement reduce operator fatigue during extended monitoring sessions.
• Multilingual Support: Supports up to 15 languages with full character sets, accommodating global operational teams and diverse user requirements.

Robust Industrial Reliability

• Harsh Environment Resilience: IP66 front protection and aluminum construction resist dust, moisture, chemical splashes, and mechanical vibration, ensuring long-term performance in challenging industrial settings.
• Wide Power Compatibility: Dual power input options ensure stable operation across varying industrial power grids, minimizing downtime from voltage fluctuations.
• EMC Compliance: Meets strict IEC 61000 standards for electromagnetic immunity and emission, preventing interference from nearby heavy machinery and ensuring signal integrity.
• Marine Certification: DNV, GL, ABS, LR, KR, and CCS marine certifications enable reliable operation in shipboard and offshore environments.
• Long-Term Durability: Touchscreen rated for 1 million operations; components designed for continuous 24/7 operation in industrial environments.

Seamless System Integration

• Multi-Protocol Communication: Native support for Modbus TCP/IP, Modbus RTU, Profibus DP (via expansion), and ABB proprietary protocols enables direct integration with ABB AC 800M/AC 500 controllers and third-party devices.
• Flexible Connectivity: Ethernet, RS-232/RS-422/RS-485, and USB interfaces support high-speed data transfer, remote configuration, and project upload/download, simplifying system setup and maintenance.
• Memory Expansion: CompactFlash slot allows for additional memory storage for large projects and historical data logging.
• Legacy System Compatibility: Integrates with older ABB Process Panel systems and most major PLC brands, protecting existing automation investments.

Advanced HMI Functionality

• Comprehensive Alarm Management: Built-in alarm handling with visual/audio alerts, event logging, historical data storage, and priority sorting for rapid fault diagnosis.
• Recipe & Data Handling: Stores up to 500+ recipes and 2,000+ historical data records, supporting batch processing and quality control applications.
• Dynamic Graphics & Animation: Supports real-time dynamic graphics, bar charts, and trend displays for intuitive process status visualization.
• Secure User Access: Multi-level password protection prevents unauthorized configuration changes, enhancing system security and operational compliance.
• Remote Access & Diagnostics: Ethernet connectivity enables remote monitoring, troubleshooting, and software updates, reducing on-site maintenance requirements.

Efficient Engineering & Maintenance

• Object-Oriented Configuration: Panel Builder 800 software provides drag-and-drop functionality and pre-built function blocks, reducing development time and complexity.
• Plug-and-Play Installation: Preconfigured communication drivers simplify integration with ABB control systems, minimizing on-site setup time.
• Easy Replacement: Standardized mounting and connectivity allow for straightforward replacement or upgrade without extensive system reconfiguration.
• Diagnostic Tools: Built-in self-diagnostic capabilities monitor system health and provide real-time status information for proactive maintenance.

Application Scenarios

Process Industries

• Oil & Gas: Monitoring and controlling refinery distillation units, pipeline pressure/flow systems, and offshore processing plants with high reliability and marine certification.
• Chemical & Petrochemical: Controlling reactor temperature, pressure, and flow in continuous and batch processes, with strict compliance to safety standards.
• Pharmaceuticals: GMP-compliant process control for drug manufacturing, including cleanroom operations and batch record management.
• Food & Beverage: Managing pasteurization, mixing, and packaging lines with precise temperature and flow control to ensure product safety and consistency.
• Pulp & Paper: Managing digester operations, dryer sections, and quality control parameters in high-production environments.

Manufacturing & Machinery

• Automotive Production: Monitoring and controlling assembly lines, robotic workcells, and paint shops with real-time visualization and precise parameter adjustment.
• Packaging Machinery: Managing filling, sealing, labeling, and palletizing processes with recipe management and quality control functions.
• Machine Tools: Monitoring CNC machines, lathes, and milling equipment with real-time performance data and fault alerts.
• Textile & Printing: Controlling machine speed, tension, and registration in high-volume production lines, ensuring consistent output quality.

Energy & Utilities

• Power Generation: Controlling boiler systems, turbine auxiliaries, and emissions monitoring in fossil fuel and renewable energy plants.
• Water & Wastewater: Managing pump stations, filtration systems, disinfection processes, and sludge handling with alarm-driven operation.
• District Heating/Cooling: Controlling distribution networks and energy production facilities with centralized monitoring and optimization.

Marine & Offshore

• Shipboard Systems: Monitoring and controlling propulsion systems, navigation equipment, and environmental controls on commercial vessels, with marine certification and resistance to vibration/humidity.
• Offshore Platforms: Managing process skids, compressor systems, and safety shutdown systems in harsh marine environments.

Metals & Mining

• Steel & Aluminum Production: Managing rolling mills, smelting operations, and material handling systems in high-temperature, high-vibration environments.
• Ore Processing: Controlling crushing, grinding, and separation processes with real-time monitoring of equipment performance.

Building & Infrastructure

• Commercial Building Automation: Managing HVAC systems, lighting, energy management, and access control for large facilities.
• Data Centers: Controlling cooling systems, power distribution, and environmental monitoring to ensure uninterrupted operation.
• Airports & Transportation Hubs: Monitoring baggage handling, passenger processing, and environmental control systems.
