Product Short Description
Product Introduction

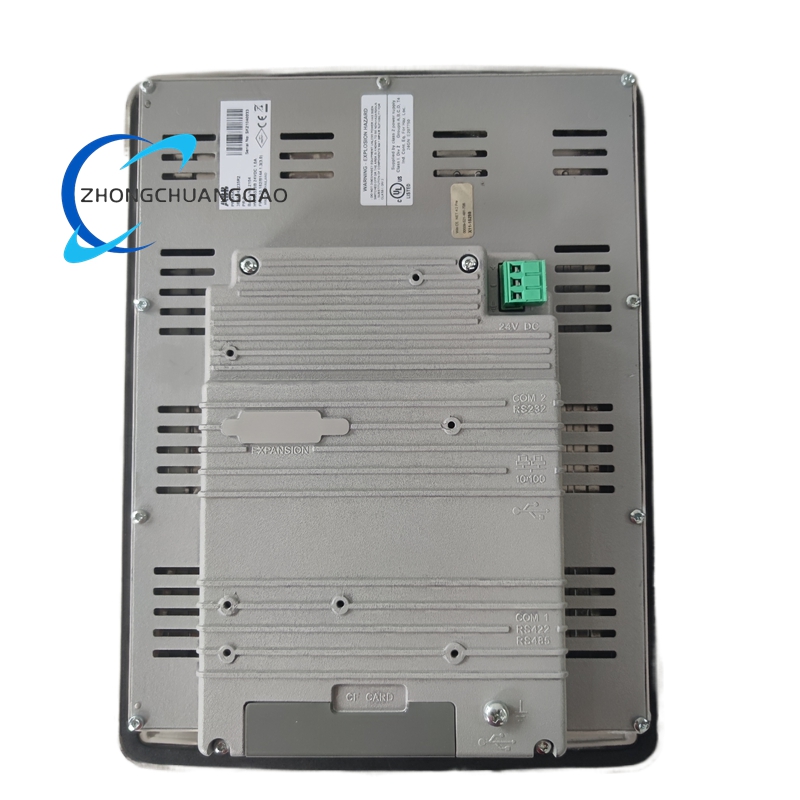

The ABB PP845 is a high-performance, industrial-grade Human-Machine Interface (HMI) panel belonging to ABB’s Panel 800 series. It is designed as a robust operator interface for industrial automation systems, providing intuitive visualization, control, and monitoring capabilities for complex manufacturing and process environments. Built for reliability and seamless integration, it serves as a critical link between human operators and automated machinery, PLCs, and DCS systems.
Technical Specifications
- Display: 10.4-inch TFT LCD, SVGA resolution (800 x 600 pixels)
- Touch Technology: Resistive touch screen
Description
- Processor: Intel Atom E3826
- Memory: 2 GB DDR3 RAM; 8 GB SSD storage
- Power Supply: 24 VDC (nominal)
- Communication Interfaces:
- 2 x Gigabit Ethernet (10/100/1000 Mbps)
- 2 x RS-232/422/485 serial ports
- 2 x USB 2.0 ports
- Supported Protocols: Modbus RTU/TCP, PROFIBUS DP, OPC UA, EtherNet/IP
- Environmental Ratings:
- Front panel: IP65 (dust and water resistant)
- Operating temperature: 0°C to +50°C
- Humidity: 5% to 95% (non-condensing)
- Dimensions & Weight: Net weight approx. 2.7 kg; panel-mount design
- Certifications: Conforms to IEC 61131-2 standards
Key Features
- Industrial-Grade Durability: Rugged aluminum construction and IP65 front protection for operation in harsh industrial environments (dust, moisture, vibration).
- High-Resolution Visualization: 10.4-inch SVGA display delivers clear, detailed process data, trends, alarms, and graphics.
- Intuitive Touch Operation: Responsive resistive touchscreen for direct, glove-friendly interaction.
- Multi-Protocol Connectivity: Seamless integration with ABB AC800M controllers, PLCs, and third-party devices via Ethernet, serial, and fieldbus protocols.
- Real-Time Performance: Low-latency data processing and communication for time-critical control applications.
- Built-In Diagnostics: Self-monitoring of power, temperature, and communication status with LED indicators for quick fault localization.
- Flexible Software: Compatible with ABB’s automation software suites for custom HMI development, alarm management, trend logging, and recipe handling.
- Hot-Swappable & Redundant: Supports redundant network configurations for maximum system uptime.
Typical Applications
- Process Industries: Oil & gas, chemical, pharmaceutical, and water/wastewater treatment plants for monitoring reactors, distillation columns, pumps, and filtration systems.
- Manufacturing: Automotive assembly, food & beverage processing, packaging machinery, and general mechanical engineering.
- Power Generation & Distribution: Local operator stations in power plants and substations for equipment control and status monitoring.
- Special Machinery: Machine tools, textile machines, pick-and-place robots, and palletizing systems.
- Building Automation: HVAC control, fire safety, and facility management systems.
